Parts for MerCruiser 8.2L Mag EC (H.O. Model) Steering Components

Revise Search: All Models > 8.2L Mag EC (H.O. Model) > 1A350340 & Up > Steering Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

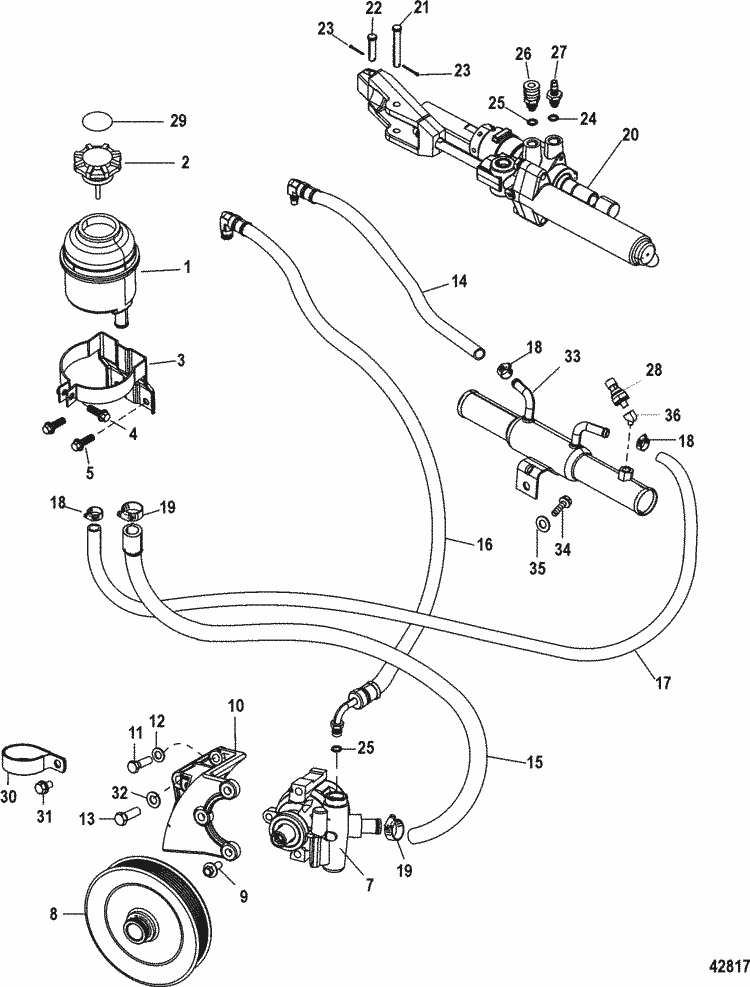

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0046080	RESERVOIR ASSEMBLY, Oil, Power Steering (1 required per assembly)
		8M0046080 - Reservoir Assembly [ More info ] Unavailable
		8M0121093 - Reservoir [ More info ] Unavailable
		8M0157890 - Reservoir [ More info ] Unavailable
		8M0239407 - RESERVOIR ASSY [ More info ] Unavailable
#2	865263	CAP, Oil Reservoir - Brown (1 required per assembly)
		19-865263 - Cap - Power Steering Reservoir [ More info ] $22.39 Available to Order: Shipping delay up to 10 days.
#3	865262A02	BRACKET ASSEMBLY (1 required per assembly)
		865262A02 - Bracket Assembly [ More info ] $51.99 Available to Order: Shipping delay up to 10 days.
#4	10-821300 25	SCREW, (M6 x 25) (1 required per assembly)
		10-821300 25 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#5	10-40107 16	SCREW, (M8 x 16) (2 required per assembly)
		10-40107 16 - Screw [ More info ] $4.49 1 In Stock.
#7	865710T	PUMP, Power Steering (1 required per assembly)
		865710T - Power Steering Pump [ More info ] Unavailable
#8	861578	PULLEY, Power Steering (1 required per assembly)
		861578 - Pulley [ More info ] Unavailable
		8M0150723 - Pulley-Power Steering Pump [ More info ] $107.99 In Stock
		18-8297 - Pulley, 861578 [ More info ] $96.73 2 In Stock.
#9	10-40107 20	SCREW, (M8 x 20) (3 required per assembly)
		10-40107 20 - Screw [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#10	8M0045250	BRACKET, Power Steering Pump (1 required per assembly)
		8M0045250 - Bracket [ More info ] $162.49 Available to Order: Shipping delay up to 10 days.
#11	10-37612	SCREW, (.375-16 x 1.250) (1 required per assembly)
		10-37612 - Screw - Priced Individually [ More info ] $2.49 3 In Stock.
#12	12-20553	WASHER, (.406 x .734 x .063) (1 required per assembly)
		12-20553 - Washer - Priced Individually [ More info ] $1.50 6 In Stock.
#13	10-47462	SCREW, (.437-14 x 1.250) (2 required per assembly)
		10-47462 - Screw - Priced Individually [ More info ] $1.80 $1.44 10+ In Stock.
#14	32-865390015	HOSE, Male Quick Connect, Cylinder to Cooler (1 required per assembly)
		32-865390015 - Hydraulic Hose [ More info ] $63.99 In Stock
#15	32-8M0046187	HOSE, Pump to Reservoir (1 required per assembly)
		32-8M0046187 - Hose - Pump To Reservoir [ More info ] $28.09 Available to Order: Shipping delay up to 10 days.
#16	32-8M0046188	HOSE, Pump to Cylinder (1 required per assembly)
		32-8M0046188 - Hose - Pump To Cylinder [ More info ] Unavailable
		328M0104321 - Power Steering Hose [ More info ] Unavailable
#17	865717	HOSE, Reservoir to Cooler (1 required per assembly)
		32-865717 - Molded Hose [ More info ] $58.49 Available to Order: Shipping delay up to 10 days.
#18	54-815504105	CLAMP, Worm Gear, Hose (2 required per assembly)
		54-815504105 - Clamp [ More info ] Unavailable
		54-8M0188618 - CLAMP [ More info ] Unavailable
#19	54-815504210	CLAMP, Worm Gear, Hose (2 required per assembly)
		54-815504210 - Clamp [ More info ] $4.19 $0.85 10+ In Stock.
#20	866200A01	CYLINDER ASSEMBLY, Power Steering (1 required per assembly)
		866200A01 - Power Steering Cylinder [ More info ] Unavailable
		8M0063382 - Power Steering Cylinder [ More info ] Unavailable
		8M0146217 - Power Steering Cylinder [ More info ] Unavailable
		8M0208402 - CYLINDER-PWR STR [ More info ] $1,559.49 In Stock
#21	17-15878	PIN, Clevis (1 required per assembly) Long
		17-15878 - Clevis Pin [ More info ] $20.49 Available to Order: Shipping delay up to 10 days.
#22	17-16419	PIN, Clevis (1 required per assembly) Short
		17-16419 - Clevis Pin [ More info ] $20.99 Available to Order: Shipping delay up to 10 days.
#23	18-46950	COTTER PIN (2 required per assembly)
		18-46950 - Cotter Pin [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#24	25-806232	O-RING, (.239 x .064) (1 required per assembly)
		25-806232 - O-ring, (.239 X .064) [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#25	25-89879	O-RING, (.301 x .064) (2 required per assembly)
		25-89879 - O-ring, (.301 X .064) [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#26	22-865415	FITTING (1 required per assembly)
		22-865415 - Fitting -q/C [ More info ] $33.99 In Stock
#27	22-865414001	FITTING (1 required per assembly)
		22-865414001 - Fitting -q/C [ More info ] $10.99 Available to Order: Shipping delay up to 10 days.
#28	881879010	SENSOR (1 required per assembly)
		881879010 - Sensor [ More info ] Unavailable
		8M6000623 - Sensor [ More info ] Unavailable
		71-8M0157742 - Water Pressure Sensor 50PSI [ More info ] $209.99 In Stock
#29	37-8M2017892	DECAL, Power Steering Fluid (1 required per assembly)
		37-8M2017892 - Decal-PS FLUID [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
#30	54-62494	CLIP (1 required per assembly)
		54-62494 - Clip [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#31	10-805557 1	SCREW, (.3125-18 x .50) (1 required per assembly)
		10-805557 1 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#32	12-22248	WASHER, (.453 x .875 x .060) (2 required per assembly)
		12-22248 - Washer, (.453 X .875 X .060) [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#33	863820T 1	COOLER, Power Steering (1 required per assembly)
		863820T 1 - Power Steering Oil Cooler [ More info ] Unavailable
#34	10-816585	SCREW, (.375-18 x .875) (1 required per assembly)
		10-816585 - Screw [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#35	13-72521	LOCKWASHER, Internal Tooth (1 required per assembly)
		13-72521 - LockWasher [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#36	22-29085	FITTING, Elbow (45 Degree) (1 required per assembly)
		22-29085 - Fitting [ More info ] Unavailable
		22-8M0109010 - Fitting [ More info ] Unavailable
		22-8M0123050 - Fitting [ More info ] $21.89 Available to Order: Shipping delay up to 10 days.
