Parts for MerCruiser 8.2L Inboard (Base) EC Intake Manifold

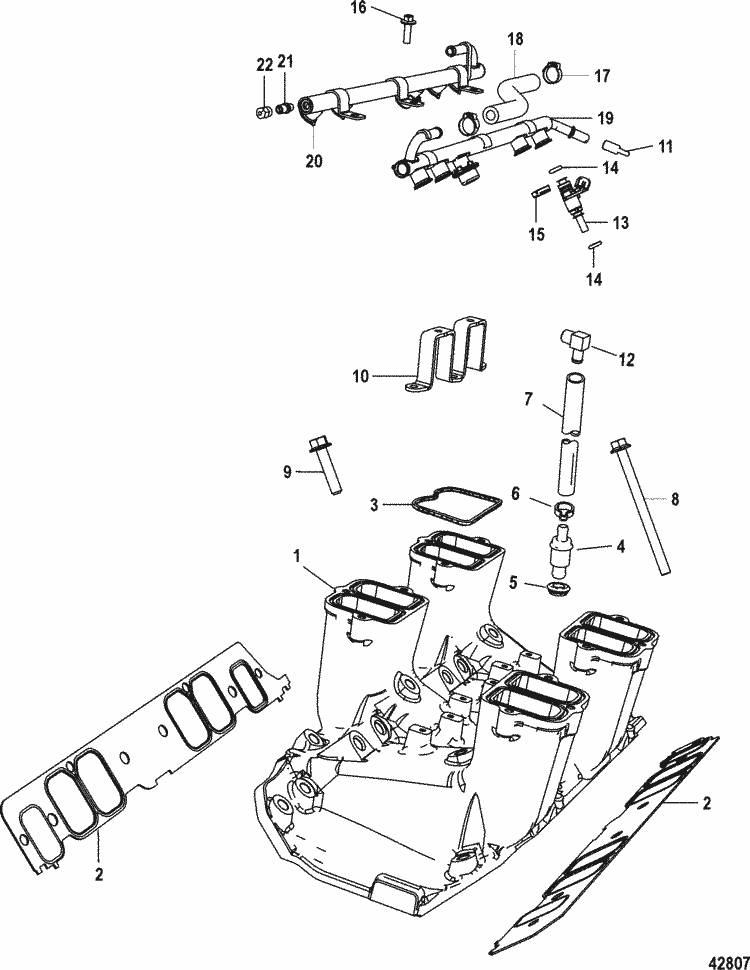

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 8M0045256 | MANIFOLD ASSEMBLY, Intake (1 required per assembly) |
  |
|
8M0045256 - Intake Manifold [ More info ]
|
| #2 | 27-805403A 1 | GASKET SET (1 required per assembly) |
  |
|
27-805403A 1 - Intake Gasket Set [ More info ]
|
| #3 | 8M0044310 | SEAL, Intake Manifold (4 required per assembly) |
  |
|
8M0044310 - Seal [ More info ]
|
| #4 | 848578 | VALVE ASSEMBLY, Crankcase Vent (1 required per assembly) |
  |
848578 - Vent Valve Assembly [ More info ] Unavailable |
|
  |
|
8M0099429 - Valve Assembly - Vent [ More info ]
|
| #5 | 25-811553 | GROMMET (1 required per assembly) |
  |
|
25-811553 - Grommet [ More info ]
|
| #6 | 54-848764 | CLAMP, (21 mm) (1 required per assembly) |
  |
|
54-848764 - Clamp [ More info ]
|
| #7 | 32-8M0042521 | HOSE, PCV Valve to Plenum (1 required per assembly) |
  |
|
32-8M0042521 - Hose - PCV Valve To Plenum [ More info ]
|
| #8 | 10-8M2017579 | SCREW, (.375-16 x 5.25), Intake Manifold to Head (4 required per assembly) |
  |
|
10-8M2017579 - Screw [ More info ]
|
| #9 | 10-8M0046395 | SCREW, (.375-16 x 1.75) (12 required per assembly) |
  |
|
10-8M0046395 - Screw [ More info ]
|
| #10 | 8M0043145 | BRACKET, Wire Harness (2 required per assembly) |
  |
|
8M0043145 - Bracket [ More info ]
|
| #11 | 19-8M0046566 | CAP, Service Point (1 required per assembly) |
  |
|
19-8M0046566 - Cap [ More info ]
|
| #12 | 22-68727 1 | FITTING, (.250-18) 90 Degree - Brass (1 required per assembly) |
  |
|
22-68727 1 - Fitting [ More info ]
|
| #13 | 8M0045266 | INJECTOR ASSEMBLY, Fuel (8 required per assembly) |
  |
|
8M0045266 - INJECTOR-FUEL NLA [ More info ] Unavailable |
| #14 | 25-879150A09 | SEAL KIT (1 required per assembly) (Contains 8 Seals) |
  |
|
879150A09 - Seal Kit [ More info ]
|
| #15 | 54-8M0045267 | RETAINER KIT (2 required per assembly) (Set of 4) |
  |
|
548M0045267 - Retainer Kit [ More info ]
|
| #16 | 10-885525 16 | SCREW, (M6 x 16) Stainless Steel, Fuel Rail to Intake Manifold (6 required per assembly) |
  |
10-885525 16 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
|
108M0103805 - Screw (M6 x 16MM) Stain [ More info ]
|
| #17 | 54-8M0046568 | CLAMP, (20.5 mm) (2 required per assembly) |
  |
|
54-8M0046568 - Clamp [ More info ]
|
| #18 | 32-8M0044724 | HOSE, Balance (1 required per assembly) |
  |
|
32-8M0044724 - 32-8M0044724 - HOSE [ More info ] Unavailable Replaced by 32-8M0071603 |
  |
|
32-8M0071603 - Hose [ More info ] Unavailable |
| #19 | 8M0044743 | FUEL RAIL, Port (1 required per assembly) |
  |
|
8M0044743 - 8M0044743 - FUEL RAIL [ More info ] Unavailable Replaced by -8M0081416 |
  |
|
8M0081416 - Fuel Rail - Port [ More info ]
|
| #20 | 8M0044754 | FUEL RAIL, Starboard (1 required per assembly) |
  |
|
8M0044754 - 8M0044754 - FUEL RAIL [ More info ] Unavailable Replaced by -8M0081417 |
  |
|
8M0081417 - Fuel Rail- Stbd [ More info ]
|
| #21 | 21-8M0044726 | VALVE ASSEMBLY (1 required per assembly) |
  |
|
218M0044726 - Valve [ More info ]
|
| #22 | 22-805515 | CAP, Shrader Valve - Brass (1 required per assembly) |
  |
|
22-805515 - Cap [ More info ] Unavailable |
