Parts for MerCruiser 8.1L Inboard (H.O.) Intake Manifold
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 881690001 | MANIFOLD (1 required per assembly) |
  |
|
881690001 - 8M0064079 [ More info ] Unavailable |
| #2 | 805223T | SENSOR, Manifold Air Temperature (1 required per assembly) |
  |
|
805223T - Intake Air Temperature IAT Sensor [ More info ]
|
  |
|
1300-13604 - Air Charge Temperature Sensor / Sender [ More info ]
|
| #3 | 32-881734 | HOSE, Fuel Pressure Regulator (1 required per assembly) |
  |
|
32-881734 - Hose - Fuel Pressure Regulator [ More info ]
|
| #4 | 27-895235 | GASKET SET, Intake Manifold and Valley (1 required per assembly) |
  |
|
27-895235 - Intake Manifold To Valley Gasket Set [ More info ]
|
  |
|
27-881633T01 - Gasket [ More info ]
|
| #5 | 881689 | SHIELD, Intake manifold Oil Splash (1 required per assembly) |
  |
|
881689 - Shield [ More info ] Unavailable |
| #6 | 845755 | RETAINER, Valve Lifter Guide (1 required per assembly) |
  |
845755 - Retainer-LIFTER [ More info ] Unavailable |
|
  |
|
8M0050807 - Lifter Retainer [ More info ]
|
| #7 | 10-881570 | SCREW, (M8 x 25) (7 required per assembly) |
  |
|
10-881570 - Bolt [ More info ]
|
| #8 | 881731 | SENSOR, Manifold Air Pressure (1 required per assembly) |
  |
881731 - Sensor [ More info ] Unavailable |
|
  |
8M0054726 - MAP Sensor [ More info ] Unavailable |
|
  |
|
8M0186195 - MAP Sensor [ More info ]
|
  |
|
18-7660 - Map Sensor, 881731 [ More info ]
|
  |
|
1300-36036 - Map Sensor [ More info ]
|
| #9 | 25-881733 | SEAL, M.A.P. Sensor (1 required per assembly) |
  |
|
25-881733 - Seal [ More info ]
|
| #10 | 10-881646 | SCREW, (M6 x 20) (1 required per assembly) |
  |
|
10-881646 - Bolt [ More info ]
|
| #11 | 864996 | TUBE, Oil Fill (1 required per assembly) |
  |
|
864996 - Oil Fill Tube [ More info ] Unavailable |
| #12 | 864997 | CAP, Oil Fill Tube (1 required per assembly) |
  |
|
864997 - Oil Fill Cap [ More info ]
|
| #13 | NSS | NOT SOLD SEPARATE, SEAL-Oil Fill Cap (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #14 | 10-881645 | BOLT, (M6 x 20), Oil Fill Tube (1 required per assembly) |
  |
|
10-881645 - Bolt [ More info ]
|
| #15 | 10-895234 | SCREW, (M6 x 73) (10 required per assembly) |
  |
10-895234 - Bolt [ More info ] Unavailable |
|
  |
|
10-895234001 - Screw [ More info ]
|

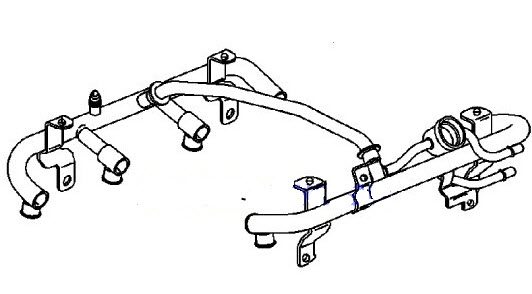

| #16 | 881691 | FUEL RAIL, Fuel Injection (1 required per assembly) |
  |
881691 - Fuel Rail [ More info ] Unavailable |
|
  |
|
881691001 - Fuel Rail [ More info ] Unavailable |
| #17 | 22-802631 | VALVE AND CAP KIT, Fuel Pressure Service (1 required per assembly) |
  |
|
22-802631 - Valve And Cap [ More info ]
|
| #18 | 881692001 | REGULATOR KIT, Fuel Pressure (1 required per assembly) |
  |
|
881692001 - Ord 802630T01, NLA [ More info ] Unavailable |
  |
|
8M0069803 - Fuel Regulator [ More info ]
|
| #19 | 25-881696 | SEAL KIT, Fuel Pressure Regulator (1 required per assembly) |
  |
|
25-881696 - Seal Kit [ More info ] Unavailable |
| #20 | 881693 | INJECTOR (8 required per assembly) |
  |
881693 - Injector [ More info ] Unavailable |
|
  |
881693002 - Injector [ More info ] Unavailable |
|
  |
|
8M0221353 - INJECTOR [ More info ] Unavailable |
| #21 | 25-881694 | SEAL KIT (1 required per assembly) |
  |
|
25-881694 - Seal Kit [ More info ]
|
| #22 | 881695 | RETAINER KIT, Fuel Injector (1 required per assembly) |
  |
881695 - Retainer Kit [ More info ] Unavailable |
|
  |
|
881695001 - Retainer Kit [ More info ]
|
| #23 | 16-881968 | STUD, Fuel Injection Rail (2 required per assembly) |
  |
16-881968 - STUD [ More info ] Unavailable |
|
  |
|
16-881968001 - Stud [ More info ]
|
| #24 | 84-881697 | HARNESS ASSEMBLY, Fuel Injection Wiring (1 required per assembly) |
  |
84-881697 - HARNESS ASSY [ More info ] Unavailable |
|
  |
84-889503 - Harness Assembly [ More info ] Unavailable |
|
  |
|
84-8M0127600 - Harness [ More info ] Unavailable |
| #25 | 16-802561 | STUD, Throttle Body (3 required per assembly) |
  |
|
16-802561 - Stud [ More info ] Unavailable |
| #26 | 22-862360 1 | PLUG, Fuel Rail Outlet (1 required per assembly) |
  |
|
22-862360 1 - Plug [ More info ]
|
| #27 | 881725 | PLATE, Block Off (1 required per assembly) (Digital Throttle Shift) |
  |
|
881725 - PLATE NLA [ More info ] Unavailable |
| #28 | 27-881644 | GASKET (1 required per assembly) (Digital Throttle Shift) |
  |
27-881644 - Block Off Plate Gasket [ More info ] Unavailable |
|
  |
|
27-863285 - Air Valve Gasket [ More info ]
|
| #29 | 10-881586 | SCREW, (M8 x 30) (2 required per assembly) (Digital Throttle Shift) |
  |
10-881586 - Bolt [ More info ] Unavailable |
|
  |
|
10-898101392 - Bolt [ More info ]
|
