Parts for MerCruiser 6.2L MPI MIE Transmission & Engine Mounting (Borg-warner 71C & 72C)

Revise Search: All Models > 6.2L MPI MIE > 1A092169 & Up > Transmission & Engine Mounting (Borg-warner 71C & 72C)

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

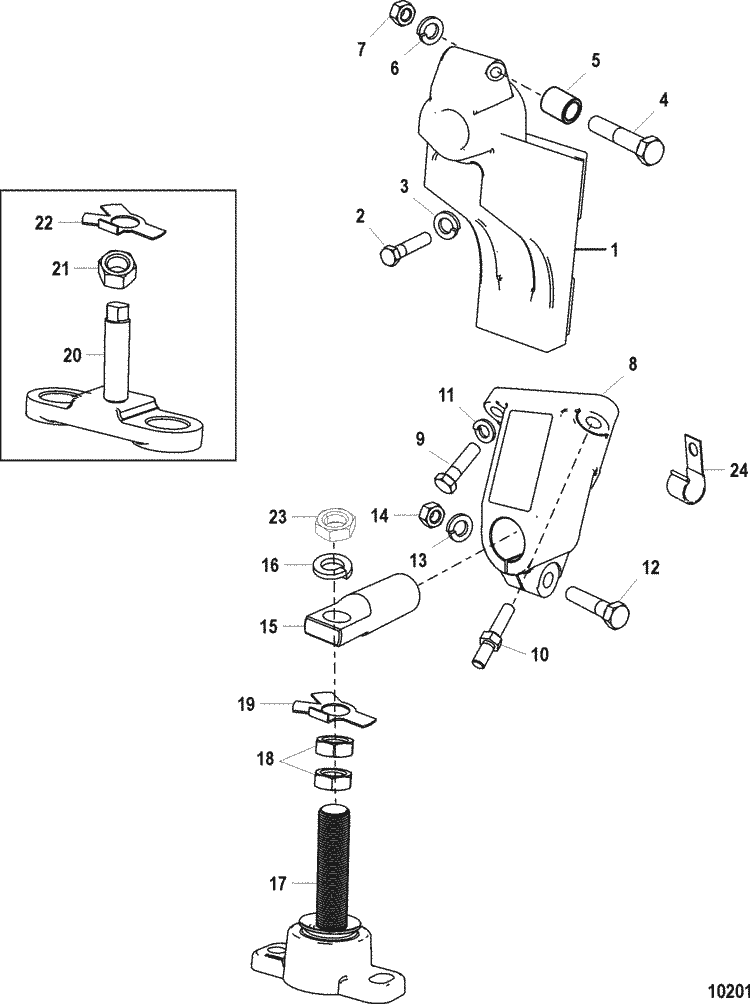

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	66167A 2	BRACKET, Rear (2 required per assembly)
		66167A 2 - Bracket [ More info ] Unavailable
#1	52158A20	BRACKET, Rear (2 required per assembly) 72C V-Drive and Remote V-Drive
		52158A20 - Bracket Assembly [ More info ] $182.49 $175.12 4 In Stock.
#2	10-37269	SCREW, (.437-14 x 2.00) (4 required per assembly)
		10-37269 - Screw - Priced Individually [ More info ] $5.29 10+ In Stock.
#2	10-47462	SCREW, (.437-14 x 1.250) (4 required per assembly) 72C V-Drive and Remote V-Drive
		10-47462 - Screw - Priced Individually [ More info ] $1.80 $1.44 10+ In Stock.
#3	13-32993	LOCKWASHER, (.437) (4 required per assembly)
		13-32993 - LockWasher - Priced Individually [ More info ] $1.70 9 In Stock.
#4	10-57357	SCREW, (.437-13 x 2.250) (2 required per assembly)
		10-57357 - Screw [ More info ] $3.59 $2.88 8 In Stock.
#4	10-47724	SCREW, (.437-14 x 3.00) (2 required per assembly) 72C V-Drive and Remote V-Drive
		10-47724 - Screw - Priced Individually [ More info ] $1.90 $1.52 7 In Stock.
#5	54-47528	CLAMP, Mount Adjusting (4 required per assembly) 72C V-Drive and Remote V-Drive
		54-47528 - Clamp [ More info ] $16.49 $13.20 10 In Stock.
#7	11-29553	NUT, (.437-14) (2 required per assembly)
		11-29553 - Nut (7/16-14) [ More info ] $2.07 $1.76 10+ In Stock.
#8	71128A 2	BRACKET, Front (2 required per assembly)
		71128A 2 - Bracket - Engine Mount [ More info ] $362.49 Available to Order: Shipping delay up to 10 days.
#9	10-68101	SCREW, (.375-16 x 1.375) (4 required per assembly)
		10-68101 - Screw [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#10	16-805357	STUD, (.375-16 x 2.130) (4 required per assembly)
		16-805357 - Stud [ More info ] Unavailable
		16-8M2004610 - Stud [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#11	13-35048	LOCKWASHER, (.375) (4 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#15	66166A 4	TRUNNION (4 required per assembly)
		66166A 4 - Trunnion [ More info ] $163.99 Available to Order: Shipping delay up to 10 days.
#16	13-68102	LOCKWASHER, (.750) (4 required per assembly)
		13-68102 - LockWasher - Priced Individually [ More info ] $2.59 5 In Stock.
#17	66284A 2	BASE ASSEMBLY, Engine End (2 required per assembly)
		66284A 2 - Engine Mount Base Assembly [ More info ] $145.99 2 In Stock.
#18	11-20739	NUT, (.750-16), Jam (2 required per assembly)
		11-20739 - Nut (.750X16) [ More info ] $5.89 10+ In Stock.
#19	14-66658	TAB WASHER, Tab (2 required per assembly)
		14-66658 - Tab Washer [ More info ] $4.49 8 In Stock.
#20	816326A 2	BASE ASSEMBLY, Transmission End (2 required per assembly)
		816326A 2 - Mount Assembly [ More info ] $285.49 In Stock
#21	11-816331	NUT, (.750-16), Jam (2 required per assembly)
		11-816331 - Nut, (.750-16) [ More info ] $7.59 10+ In Stock.
#24	54-78945	J CLAMP, Harness Support (1 required per assembly)
		54-78945 - J Clamp [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
