Parts for MerCruiser 5.7L Ski EC Electrical Components, Mechanical Throttle & Shift

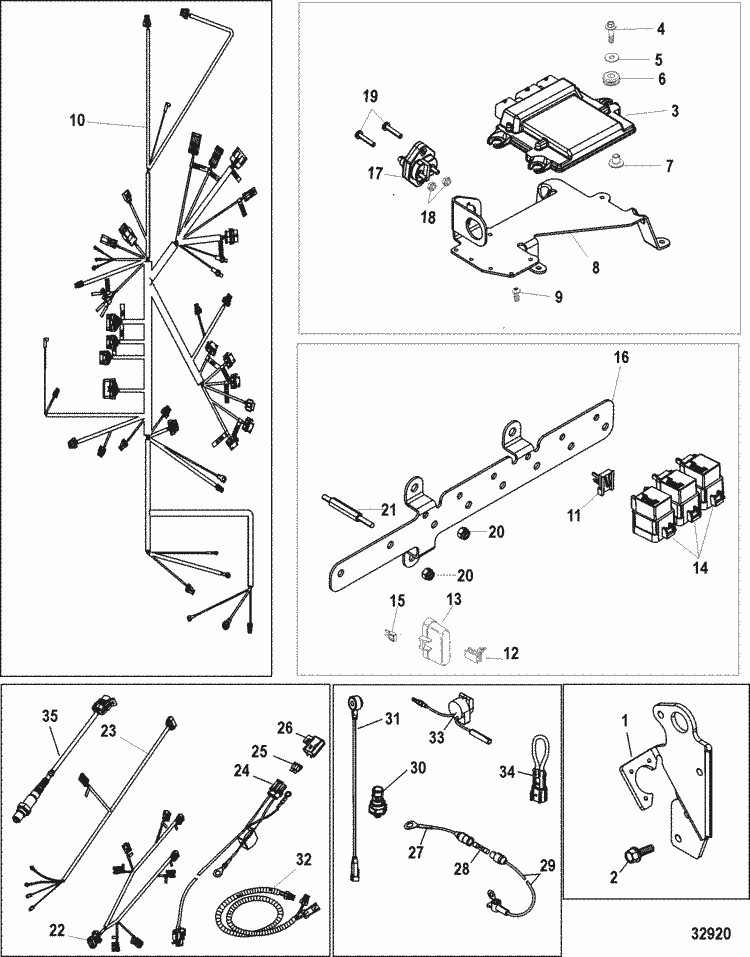

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 865480T | BRACKET, Harness Mounting/Lifting Eye (1 required per assembly) |
  |
|
865480T - Bracket [ More info ]
|
| #2 | 10-98261 | SCREW, (.375-16 x .750) (2 required per assembly) |
  |
|
10-98261 - Screw [ More info ]
|
| #3 | 879172T15 | PCM, Propulsion Control Module, MIE 5.7 Ski (1 required per assembly) |
  |
|
879172T15 - 879172T15 - PCM Propulsion Co [ More info ] Unavailable Replaced by -87919428T |
  |
87919428T - ECM [ More info ] Unavailable |
|
  |
|
8M0049852 - 8M0049852 - ECM [ More info ] Unavailable Replaced by -8M0071883 |
  |
|
8M0071883 - ECM [ More info ] Unavailable |
| #4 | 10-821300 25 | SCREW, (M6 x 25) (3 required per assembly) |
  |
|
10-821300 25 - Screw [ More info ]
|
| #5 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel (3 required per assembly) |
  |
|
12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ]
|
| #6 | 25-834985 | GROMMET (3 required per assembly) |
  |
|
25-834985 - Grommet [ More info ]
|
  |
|
25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ]
|
| #7 | 23-856954 | BUSHING (3 required per assembly) |
  |
|
23-856954 - Bushing [ More info ]
|
| #8 | 879288T32 | BRACKET, PCM (1 required per assembly) |
  |
|
879288T32 - Bracket - PCM [ More info ]
|
| #9 | 10-860008 | SCREW, (.250-20 x .625) Torx (3 required per assembly) |
  |
|
10-860008 - Bolt [ More info ]
|
| #10 | 84-879288T29 | HARNESS ASSEMBLY, Main Engine (1 required per assembly) |
  |
84-879288T29 - Harness [ More info ] Unavailable |
|
  |
|
84-8M0046435 - Harness [ More info ]
|
| #11 | 86-865205 | CLIP, Relay Mounting (2 required per assembly) |
  |
|
86-865205 - Clip - Priced Individually [ More info ]
|
| #12 | 54-804352 | CLIP, Fuse Block Mounting (1 required per assembly) |
  |
|
54-804352 - Clip- Fuse Block [ More info ]
|
| #13 | 858754 | COVER, Fuse (1 required per assembly) |
  |
|
858754 - Fuse Cover [ More info ] Unavailable |
| #14 | 882751 | RELAY (3 required per assembly) |
  |
882751 - Relay - Trim [ More info ] Unavailable |
|
  |
|
8M0207772 - RELAY-TRIM [ More info ]
|
  |
|
8M0219830 - RELAY-TRIM (8M0219830) [ More info ]
|
| #15 | 88-832969 15 | FUSE, Mini - Blue - 15 Ampere (2 required per assembly) |
  |
88-832969 15 - Fuse, Blue-15AMP [ More info ] Unavailable |
|
  |
|
88-832969T15 - Fuse -Blue-15AMP [ More info ]
|
| #15 | 88-832969 20 | FUSE, Mini - Yellow - 20 Ampere (3 required per assembly) |
  |
88-832969 20 - Fuse-Yellow-20AMP [ More info ] Unavailable |
|
  |
|
88-832969T20 - Fuse - Yellow - 20 Amp [ More info ]
|
| #16 | 879288T31 | BRACKET, Relay (1 required per assembly) |
  |
|
879288T31 - Bracket - Relay [ More info ]
|
| #17 | 88-865827T | BREAKER, Circuit - 50 Ampere (1 required per assembly) |
  |
|
88-865827T - Circuit Breaker [ More info ] Unavailable |
| #18 | 11-826709106 | NUT, (#10-32) Stainless Steel (2 required per assembly) |
  |
|
11-826709106 - Nut, (#10-32) Stainless Steel [ More info ]
|
  |
|
11-8M0204718 - NUT [ More info ]
|
| #19 | 10-830861 | SCREW, (#8-32 x .625) (2 required per assembly) |
  |
|
10-830861 - Screw - Priced Individually [ More info ]
|
| #20 | 11-40136 6 | NUT, (M6) Stainless Steel (3 required per assembly) |
  |
|
11-40136 6 - Nut - Priced Individually [ More info ]
|
| #21 | 16-863439 | STUD (1 required per assembly) |
  |
|
16-863439 - Stud [ More info ]
|
| #22 | 84-865983T01 | HARNESS ASSEMBLY, Injectors (1 required per assembly) |
  |
|
84-865983T01 - Injector Harness [ More info ]
|
| #23 | 84-865769T01 | HARNESS ASSEMBLY, Transmission (1 required per assembly) |
  |
|
84-865769T01 - Harness - Transom [ More info ]
|
| #24 | 84-888416T03 | HARNESS ASSEMBLY, Clean Power (1 required per assembly) |
  |
84-888416T03 - HARNES ASY-14 FT [ More info ] Unavailable |
|
  |
84-888416T04 - Harness Assembly [ More info ] Unavailable |
|
  |
|
848M0113732 - Harness, Clean Power [ More info ]
|
| #25 | 862646 | FUSE, Tan - 5 Ampere (1 required per assembly) |
  |
|
862646 - Fuse, Tan, 5 Amp [ More info ]
|
| #26 | 828054 | COVER, Fuse (1 required per assembly) |
  |
|
828054 - Fuse Cover [ More info ]
|
| #27 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red (1 required per assembly) Bravo |
  |
84-95084A10 - Cable Assembly [ More info ] Unavailable |
|
  |
|
84-8M0207788 - CABLE ASSY [ More info ] Unavailable |
| #28 | 88-79091 | FUSE, 20 Ampere (1 required per assembly) Bravo |
  |
|
88-79091 - Fuse - 20 Amp - Priced Individually [ More info ]
|
  |
|
888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ]
|
| #29 | 84-95084A 9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (1 required per assembly) Bravo |
  |
|
84-95084A 9 - Cable Assembly [ More info ]
|
| #30 | 881879010 | SENSOR, Pressure (1 required per assembly) Transmission Cooler |
  |
881879010 - Sensor [ More info ] Unavailable |
|
  |
8M6000623 - Sensor [ More info ] Unavailable |
|
  |
|
71-8M0157742 - Water Pressure Sensor 50PSI [ More info ]
|
| #30 | 881879011 | SENSOR, Pressure (0 - 100 PSI), Oil (1 required per assembly) |
  |
881879011 - Pressure Sensor [ More info ] Unavailable |
|
  |
|
881879T11 - Pressure Sensor [ More info ]
|
| #31 | 878187 | SENSOR ASSEMBLY, Knock (2 required per assembly) |
  |
878187 - Knock Sensor [ More info ] In Stock |
|
  |
|
8M6003194 - Knock Sensor [ More info ]
|
| #32 | 84-862262A 2 | HARNESS ASSEMBLY, Boost Pump (1 required per assembly) |
  |
|
84-862262A 2 - Harness Assembly [ More info ] Unavailable |
| #33 | 816492A15 | ALARM KIT (1 required per assembly) |
  |
|
816492A15 - Alarm Kit [ More info ]
|
| #34 | 864337A 1 | CONNECTOR, Black, Jumper (1 required per assembly) Black Wire |
  |
|
864337A 1 - Connector [ More info ]
|
| #35 | 8M2003959 | SENSOR, Oxygen (4 required per assembly) |
  |
|
8M2003959 - Oxygen Sensor [ More info ]
|
