Parts for MerCruiser 5.7L Carburetor MIE Transmission & Engine Mounting (Borg Warner 5000)

Revise Search: All Models > 5.7L Carburetor MIE > 0L002003 - OM316999 > Transmission & Engine Mounting (Borg Warner 5000)

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

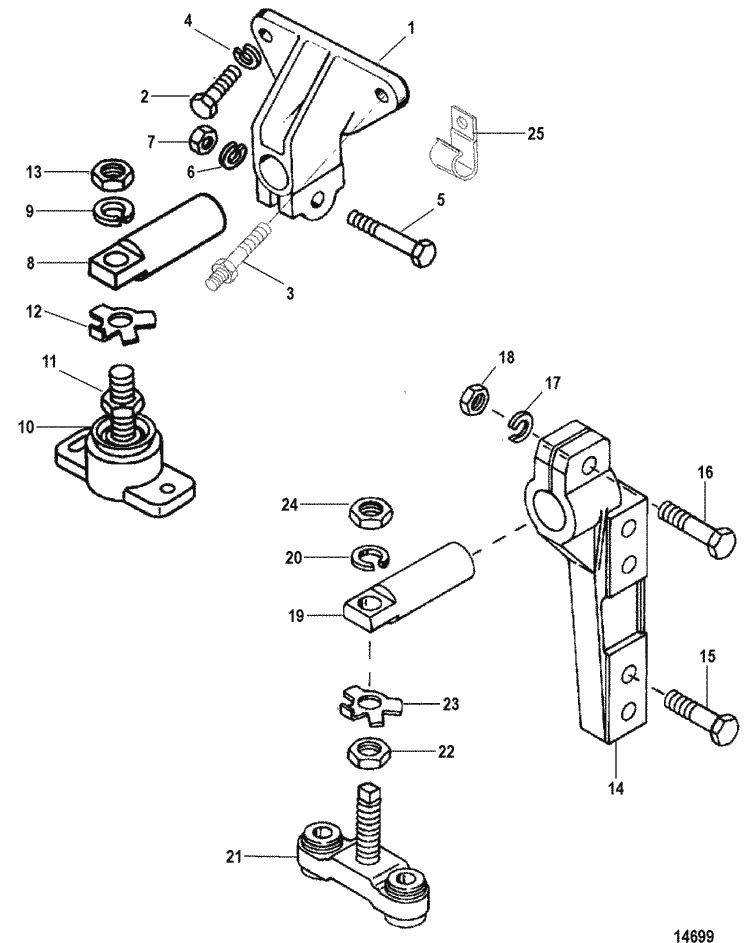

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	71128A 2	BRACKET (2 required per assembly)
		71128A 2 - Bracket - Engine Mount [ More info ] $362.49 Available to Order: Shipping delay up to 10 days.
#2	10-68101	SCREW, (.375-16 x 1.375) (4 required per assembly)
		10-68101 - Screw [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#3	16-805357	STUD, (.375-16 x 2.130) (2 required per assembly)
		16-805357 - Stud [ More info ] Unavailable
		16-8M2004610 - Stud [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#4	13-35048	LOCKWASHER, (.375) (4 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#5	10-37269	SCREW, (.437-14 x 2.00) (2 required per assembly)
		10-37269 - Screw - Priced Individually [ More info ] $5.29 10+ In Stock.
#6	13-32993	LOCKWASHER, (.437) (2 required per assembly)
		13-32993 - LockWasher - Priced Individually [ More info ] $1.70 9 In Stock.
#7	11-29553	NUT, (.437-14) (2 required per assembly)
		11-29553 - Nut (7/16-14) [ More info ] $2.07 $1.76 10+ In Stock.
#8	66166A 4	TRUNNION (2 required per assembly)
		66166A 4 - Trunnion [ More info ] $163.99 Available to Order: Shipping delay up to 10 days.
#9	13-68102	LOCKWASHER, (.750) (2 required per assembly)
		13-68102 - LockWasher - Priced Individually [ More info ] $2.59 5 In Stock.
#10	66284A 2	BASE ASSEMBLY (2 required per assembly)
		66284A 2 - Engine Mount Base Assembly [ More info ] $145.99 2 In Stock.
#11	11-20739	NUT, (.750-16) (2 required per assembly)
		11-20739 - Nut (.750X16) [ More info ] $5.89 10+ In Stock.
#12	14-66658	TAB WASHER (2 required per assembly)
		14-66658 - Tab Washer [ More info ] $4.49 8 In Stock.
#14	805496T	BRACKET (1 required per assembly) (PORT) (DOWN ANGLE TRANSMISSION)
		805496T - Bracket - Port [ More info ] $285.99 Available to Order: Shipping delay up to 10 days.
#14	805496T 1	BRACKET (1 required per assembly) (STARBOARD) (DOWN ANGLE TRANSMISSION)
		805496T 1 - Bracket - Stbd [ More info ] $285.99 Available to Order: Shipping delay up to 10 days.
#14	807724T	BRACKET (1 required per assembly) (PORT) (V-DRIVE TRANSMISSION)
		807724T - Mount -trans- Port [ More info ] $127.99 Available to Order: Shipping delay up to 10 days.
#14	807725T	BRACKET (1 required per assembly) (STARBOARD) (V-DRIVE TRANSMISSION)
		807725T - Mount -trans- Stbd [ More info ] $127.99 Available to Order: Shipping delay up to 10 days.
#15	10-40097 60	SCREW, (M12 x 60) (4 required per assembly)
		10-40097 60 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#16	10-57357	SCREW, (.437-13 x 2.250) (2 required per assembly) (7/16-14 X 2-1/4 IN.)(DOWN ANGLE TRANSMISSION)
		10-57357 - Screw [ More info ] $3.59 $2.88 8 In Stock.
#16	10-47724	SCREW, (.437-14 x 3.00) (2 required per assembly) (V-DRIVE TRANSMISSION)
		10-47724 - Screw - Priced Individually [ More info ] $1.90 $1.52 7 In Stock.
#21	816326A 2	BASE ASSEMBLY (2 required per assembly)
		816326A 2 - Mount Assembly [ More info ] $285.49 In Stock
#22	11-816331	NUT, (.750-16) (2 required per assembly)
		11-816331 - Nut, (.750-16) [ More info ] $7.59 10+ In Stock.
#25	54-78945	J CLAMP, Harness Support (1 required per assembly)
		54-78945 - J Clamp [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
