Parts for MerCruiser 5.0L MPI Alpha / Bravo Throttle Body, Mechanical

Revise Search: All Models > 5.0L MPI Alpha / Bravo > 1A611928 & Up > Throttle Body, Mechanical

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

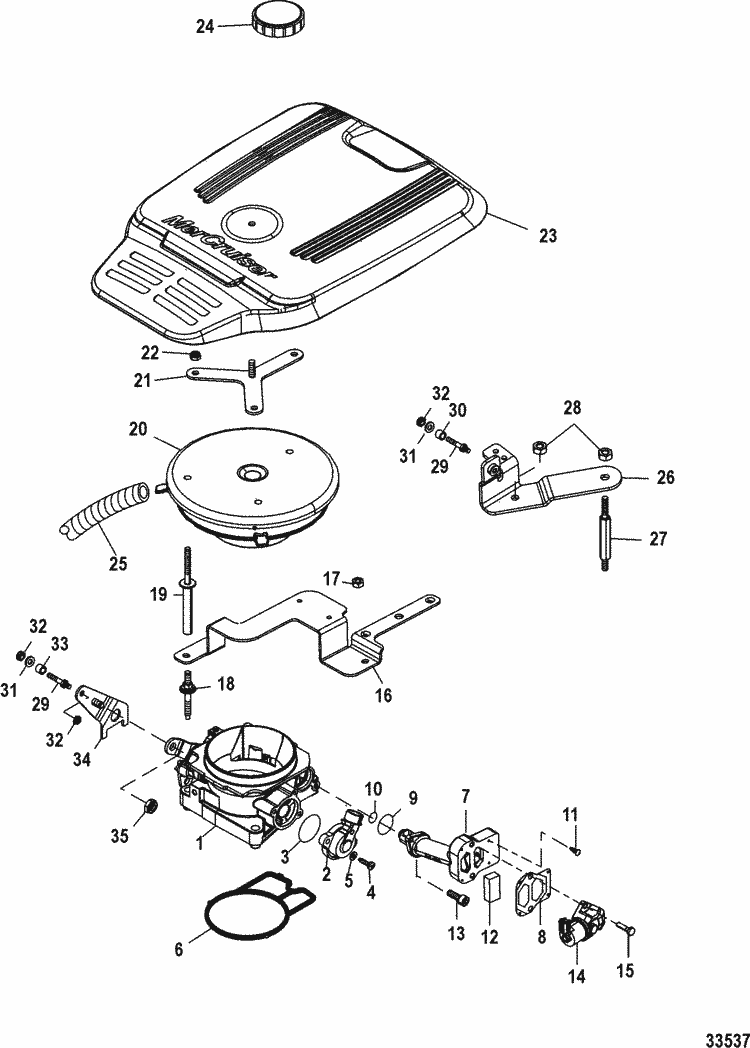

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	888770T	THROTTLE BODY ASSEMBLY (1 required per assembly)
		888770T - 8M0069801 [ More info ] Unavailable
		8M0069801 - 8M0096994 [ More info ] Unavailable
		8M0096994 - Throttle Body [ More info ] $460.49 Available to Order: Shipping delay up to 10 days.
#2	853678T	SENSOR, TPS (1 required per assembly)
		853678T - Sensor, TPS [ More info ] Unavailable
		8M0097035 - Throttle Position Sensor [ More info ] Unavailable
		8M0221731 - Throttle Position Sensor TPS [ More info ] $128.99 In Stock
		18-7700 - Throttle Position Sensor, 853678T [ More info ] $143.09 $130.04 1 In Stock.
#6	27-885172	GASKET, Throttle Body (1 required per assembly)
		27-885172 - Throttle Body Gasket [ More info ] Unavailable
		27-8M4502066 - Gasket [ More info ] Unavailable
		27-8M0162949 - Gasket [ More info ] $83.99 Available to Order: Shipping delay up to 10 days.
#7	866295A02	IAC ADAPTOR KIT (1 required per assembly)
		866295A02 - Iac Adaptor Kit [ More info ] $259.99 Available to Order: Shipping delay up to 10 days.
#9	25-863006	O-RING (1 required per assembly)
		25-863006 - O-ring, Throttle Body [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#10	25-808547	O-RING (1 required per assembly)
		25-808547 - O-Ring [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#12	35-8M2001030	FILTER (1 required per assembly)
		35-8M2001030 - 35-8M2001030 - FILTER [ More info ] Unavailable Replaced by -8M0188226
		35-8M0188226 - FILTER-IAC, Priced Individually [ More info ] $11.79 Available to Order: Shipping delay up to 10 days.
#13	10-40086 12	SCREW, (M4 x 12) (2 required per assembly)
		10-40086 12 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#14	862998	VALVE, Idle Air (1 required per assembly)
		862998 - Idle Air Valve [ More info ] Unavailable
		8M0181068 - IAC Idle Air Control Valve [ More info ] $231.49 $222.49 In Stock
		18-7701 - IAC Idle Air Control Valve, 862998 [ More info ] $147.99 $140.20 3 In Stock.
		1300-36067 - Idle Air Control Valve Sensor [ More info ] $149.99 $114.69 3 In Stock.
#15	10-40088 20	SCREW, (M6 x 20) (2 required per assembly)
		10-40088 20 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#16	863647T	BRACKET (1 required per assembly)
		863647T - Bracket [ More info ] $43.49 Available to Order: Shipping delay up to 10 days.
#17	11-40136 6	NUT, (M6) Stainless Steel (1 required per assembly)
		11-40136 6 - Nut - Priced Individually [ More info ] $3.59 2 In Stock.
#18	16-885171	STUD (3 required per assembly)
		16-885171 - Stud [ More info ] Unavailable
		168M0088142 - Stud [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#19	16-864338	STUD, Special (3 required per assembly)
		16-864338 - Stud -Special [ More info ] $12.69 Available to Order: Shipping delay up to 10 days.
#20	863416T	FLAME ARRESTOR (1 required per assembly)
		863416T - Flame Arrestor [ More info ] $245.49 In Stock
#21	863423	BRACKET, Cover Mount (1 required per assembly)
		863423 - Bracket [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#22	11-40138 6	NUT, (M6) Stainless Steel (3 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 10+ In Stock.
#23	879288T67	COVER, Silver (3 required per assembly)
		879288T67 - Cover [ More info ] $148.99 Available to Order: Shipping delay up to 10 days.
#24	11-863701	KNOB, Engine Cover (1 required per assembly)
		11-863701 - Knob Nut [ More info ] $12.99 Available to Order: Shipping delay up to 10 days.
#25	32-15894 24	HOSE, (16.50 Inches Bulk), Breather (1 required per assembly)
		32-15894 24 - Tubing - 16.5 Inch [ More info ] Unavailable
#26	863420T	BRACKET, Throttle Anchor (1 required per assembly)
		863420T - Throttle Bracket [ More info ] $16.39 Available to Order: Shipping delay up to 10 days.
#27	16-863439	STUD (1 required per assembly)
		16-863439 - Stud [ More info ] $6.59 Available to Order: Shipping delay up to 10 days.
#29	16-97477A 3	STUD KIT, Throttle Anchor (2 required per assembly)
		16-97477A 3 - Stud Kit [ More info ] $33.19 Available to Order: Shipping delay up to 10 days.
#29	16-866641A01	STUD KIT, Throttle Anchor (2 required per assembly) (SEACORE)
		16-866641A01 - Stud Kit [ More info ] $15.99 Available to Order: Shipping delay up to 10 days.
#30	23-31866	SPACER, (.256 x .313 x .625) (2 required per assembly)
		23-31866 - Spacer - .26 X .31 X .64 [ More info ] $5.69 10+ In Stock.
#30	23-11284	SPACER, (.62 Diameter) (1 required per assembly)
		23-11284 - Spacer - .62 Diameter [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#31	12-20533	WASHER (2 required per assembly)
		12-20533 - Washer, 9/16 Inch O.D. [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#32	11-826713 9	NUT, (.250-28) (3 required per assembly)
		11-826713 9 - Nut [ More info ] $2.59 4 In Stock.
#32	11-826709109	NUT, (.250-28) Stainless Steel (3 required per assembly) (SEACORE)
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 4 In Stock.
#33	NSS	NOT SOLD SEPARATE, Spacer (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#34	863417	BRACKET, Throttle (1 required per assembly)
		863417 - Bracket [ More info ] $23.29 Available to Order: Shipping delay up to 10 days.
#35	11-826713 8	NUT, (.25-20) (1 required per assembly)
		11-826713 8 - Nut [ More info ] $2.79 1 In Stock.
#35	11-826709108	NUT, (.250-20) Stainless Steel (1 required per assembly) (SEACORE)
		11-826709108 - Nut, (.250-20) Stainless Steel [ More info ] $0.90 Available to Order: Shipping delay up to 10 days.
