Parts for MerCruiser 5.0L MPI Alpha / Bravo Electrical Components, Mechanical (Sn 1A343328 & Up)

Revise Search: All Models > 5.0L MPI Alpha / Bravo > 1A300000 - 1A611927 > Electrical Components, Mechanical (Sn 1A343328 & Up)

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	865480T	BRACKET, Harness Mounting/Lifting Eye (1 required per assembly)
		865480T - Bracket [ More info ] $62.49 Available to Order: Shipping delay up to 10 days.
#2	10-98261	SCREW, (.375-16 x .750) (2 required per assembly)
		10-98261 - Screw [ More info ] $1.20 5 In Stock.

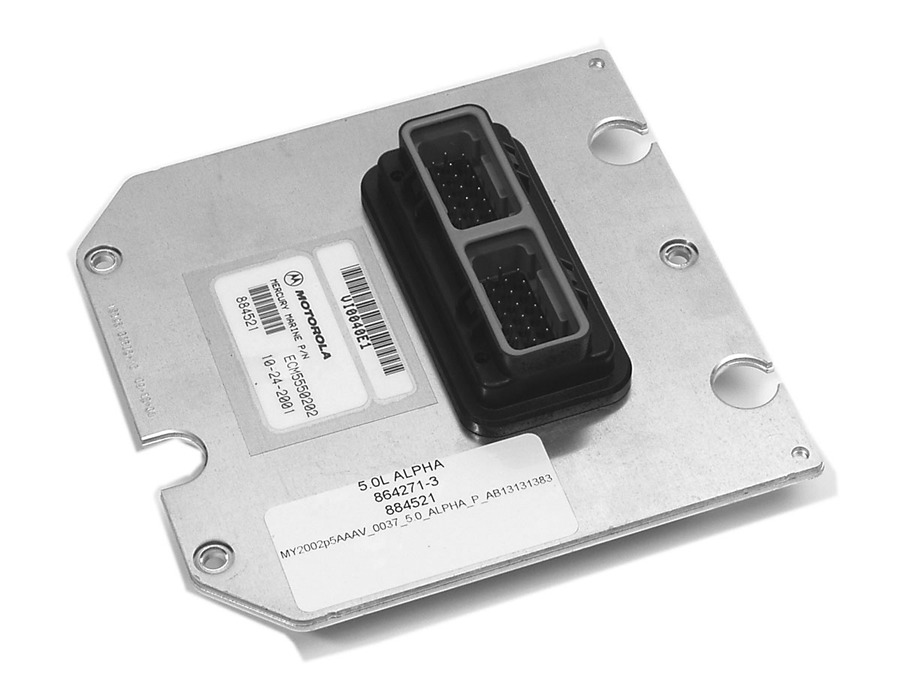

#3	879194T82	ECM, Engine Control Module (1 required per assembly) 5.0L MPI Alpha, Standard Cooling
		879194T82 - ECM Engine Control Modu [ More info ] Unavailable
#3	879194T83	ECM, Engine Control Module (1 required per assembly) 5.0L MPI Alpha, Closed Cooling
		879194T83 - ECM Engine Control Modu [ More info ] Unavailable
#3	879194T84	ECM, Engine Control Module (1 required per assembly) 5.0L MPI Bravo, Standard Cooling
		879194T84 - ECM Engine Control Modu [ More info ] Unavailable
#3	879194T85	ECM, Engine Control Module (1 required per assembly) 5.0L MPI Bravo, Closed Cooling
		879194T85 - ECM Engine Control Modu [ More info ] Unavailable
#3	879194T86	ECM, Engine Control Module (1 required per assembly) 350 Mag MPI Alpha, Standard Cooling
		879194T86 - ECM Engine Control Modu [ More info ] Unavailable
#3	879194T87	ECM, Engine Control Module (1 required per assembly) 350 Mag MPI Alpha, Closed Cooling
		879194T87 - ECM Engine Control Modu [ More info ] Unavailable
#3	879194T88	ECM, Engine Control Module (1 required per assembly) 350 Mag MPI Bravo, Standard Cooling
		879194T88 - ECM Engine Control Modu [ More info ] Unavailable
#3	879194T89	ECM, Engine Control Module (1 required per assembly) 350 Mag MPI Bravo, Closed Cooling
		879194T89 - ECM Engine Control Modu [ More info ] Unavailable
#3	879194T00	ECM, Engine Control Module (1 required per assembly) 377 MAG MPI, Standard Cooling SN# 1A343328 thru 1A345479, 1A345493 thru 1A345765 & 1A345768 THRU 1A346789
		879194T00 - ECM Engine Control Modu [ More info ] Unavailable
#3	879288T92	ECM, Engine Control Module (1 required per assembly) 377 MAG MPI, Standard Cooling SN# 1A345480 thru 1A345492, 1A345766 thru 1A345767 & 1A346790 & Up
		879288T92 - ECM Engine Control Modu [ More info ] Unavailable
#3	879194T39	ECM, Engine Control Module (1 required per assembly) 377 MAG MPI, Closed Cooling SN# 1A343328 thru 1A345479, 1A345493 thru 1A345765 & 1A345768 THRU 1A346789
		879194T39 - ECM Engine Control Modu [ More info ] Unavailable
#3	879288T93	ECM, Engine Control Module (1 required per assembly) 377 MAG MPI, Closed Cooling SN# 1A345480 thru 1A345492, 1A345766 thru 1A345767 & 1A346790 & Up
		879288T93 - ECM Engine Control Modu [ More info ] Unavailable
#4	10-821300 25	SCREW, (M6 x 25) (3 required per assembly)
		10-821300 25 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#5	12-65567	WASHER, (.265 x .750 x .048) Stainless Steel (3 required per assembly)
		12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#6	25-834985	GROMMET (3 required per assembly)
		25-834985 - Grommet [ More info ] $3.00 2 In Stock.
		25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#7	23-856954	BUSHING (3 required per assembly)
		23-856954 - Bushing [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#8	863424T	BRACKET, ECM (1 required per assembly)
		863424T - Bracket [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#9	10-860008	SCREW, (.250-20 x .625) Torx (3 required per assembly)
		10-860008 - Bolt [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#10	84-866058T02	HARNESS ASSEMBLY (1 required per assembly) Alpha
		84-866058T02 - Harness [ More info ] $1,499.99 Available to Order: Shipping delay up to 10 days.
#10	84-866056T02	HARNESS ASSEMBLY (1 required per assembly) Bravo
		84-866056T02 - Harness [ More info ] $1,413.99 Available to Order: Shipping delay up to 10 days.
#11	86-865205	CLIP, Relay Mounting (2 required per assembly)
		86-865205 - Clip - Priced Individually [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#12	54-804352	CLIP, Fuse Block Mounting (1 required per assembly)
		54-804352 - Clip- Fuse Block [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#13	883562	COVER, Fuse (1 required per assembly)
		883562 - Fuse Block Cover [ More info ] $15.59 5 In Stock.
		831960 - Fuse Cover [ More info ] $7.09 1 In Stock.
#14	882751	RELAY (3 required per assembly)
		882751 - Relay - Trim [ More info ] Unavailable
		8M0207772 - RELAY-TRIM [ More info ] $17.99 6 In Stock.
		8M0219830 - RELAY-TRIM (8M0219830) [ More info ] $18.69 $18.67 In Stock
#15	88-832969 15	FUSE, Mini - Blue - 15 Ampere (2 required per assembly)
		88-832969 15 - Fuse, Blue-15AMP [ More info ] Unavailable
		88-832969T15 - Fuse -Blue-15AMP [ More info ] $4.09 4 In Stock.
#15	88-832969 20	FUSE, Mini - Yellow - 20 Ampere (3 required per assembly)
		88-832969 20 - Fuse-Yellow-20AMP [ More info ] Unavailable
		88-832969T20 - Fuse - Yellow - 20 Amp [ More info ] $7.09 10+ In Stock.
#16	865483T	BRACKET, Circuit Breaker and Relays (1 required per assembly)
		865483T - Bracket [ More info ] $53.99 Available to Order: Shipping delay up to 10 days.
#17	88-865827T	BREAKER, Circuit - 50 Ampere (1 required per assembly)
		88-865827T - Circuit Breaker [ More info ] Unavailable
#18	11-826709106	NUT, (#10-32) Stainless Steel (2 required per assembly)
		11-826709106 - Nut, (#10-32) Stainless Steel [ More info ] $4.50 6 In Stock.
		11-8M0204718 - NUT [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#19	10-830861	SCREW, (#8-32 x .625) (2 required per assembly)
		10-830861 - Screw - Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#20	11-40136 6	NUT, (M6) Stainless Steel (3 required per assembly)
		11-40136 6 - Nut - Priced Individually [ More info ] $3.59 2 In Stock.
#21	16-863439	STUD (1 required per assembly)
		16-863439 - Stud [ More info ] $6.59 Available to Order: Shipping delay up to 10 days.
#22	84-865983T01	HARNESS ASSEMBLY, Injectors (1 required per assembly)
		84-865983T01 - Injector Harness [ More info ] $380.99 Available to Order: Shipping delay up to 10 days.
#23	84-865677T02	HARNESS ASSEMBLY, Transom (1 required per assembly)
		84-865677T02 - Harness [ More info ] $93.49 Available to Order: Shipping delay up to 10 days.
#24	84-888416T03	HARNESS ASSEMBLY, Clean Power (1 required per assembly)
		84-888416T03 - HARNES ASY-14 FT [ More info ] Unavailable
		84-888416T04 - Harness Assembly [ More info ] Unavailable
		848M0113732 - Harness, Clean Power [ More info ] $105.85 Available to Order: Shipping delay up to 10 days.
#25	862646	FUSE, Tan - 5 Ampere (1 required per assembly)
		862646 - Fuse, Tan, 5 Amp [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#26	828054	COVER, Fuse (1 required per assembly)
		828054 - Fuse Cover [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#27	84-95084A10	CABLE ASSEMBLY, (5.00 Inches) Red (1 required per assembly) Bravo
		84-95084A10 - Cable Assembly [ More info ] Unavailable
		84-8M0207788 - CABLE ASSY [ More info ] Unavailable
#28	88-79091	FUSE, 20 Ampere (1 required per assembly) Bravo
		88-79091 - Fuse - 20 Amp - Priced Individually [ More info ] $5.54 10+ In Stock.
		888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ] $9.09 Available to Order: Shipping delay up to 10 days.
#29	84-95084A 9	CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (1 required per assembly) Bravo
		84-95084A 9 - Cable Assembly [ More info ] $30.49 Available to Order: Shipping delay up to 10 days.
#30	881879010	SENSOR, Pressure (1 required per assembly) Steering Cooler
		881879010 - Sensor [ More info ] Unavailable
		8M6000623 - Sensor [ More info ] Unavailable
		71-8M0157742 - Water Pressure Sensor 50PSI [ More info ] $209.99 In Stock
#30	881879011	SENSOR, Pressure (0 - 100 PSI), Oil (1 required per assembly)
		881879011 - Pressure Sensor [ More info ] Unavailable
		881879T11 - Pressure Sensor [ More info ] $196.99 $189.49 In Stock
#31	878187	SENSOR ASSEMBLY, Knock (2 required per assembly)
		878187 - Knock Sensor [ More info ] In Stock
		8M6003194 - Knock Sensor [ More info ] $77.99 In Stock
#32	87-815425T	SENDER ASSEMBLY, Oil (1 required per assembly)
		815425T - Sender [ More info ] Unavailable
		8M0068784 - Sender Assembly [ More info ] $133.49 $131.62 In Stock
		18-5899 - Sender, 982650, 815425T [ More info ] $42.99 $41.78 10+ In Stock.
		75-24301 - Mercruiser and OMC Oil Pressure Sender [ More info ] $42.49 $34.16 4 In Stock.
#32	37293T	SENDER ASSEMBLY, Oil (1 required per assembly) Dual Station
		37293T - Oil Pressure Sender [ More info ] $205.99 In Stock
#33	816492A15	ALARM KIT (1 required per assembly)
		816492A15 - Alarm Kit [ More info ] $102.32 4 In Stock.
#34	864337A 1	CONNECTOR, Black, Jumper (1 required per assembly) Black Wire
		864337A 1 - Connector [ More info ] $17.99 Available to Order: Shipping delay up to 10 days.
#35	11-889664	NUT, (1.500-18) Black Nylon (1 required per assembly)
		11-889664 - Nut, (1.500-18) Black Nylon [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
