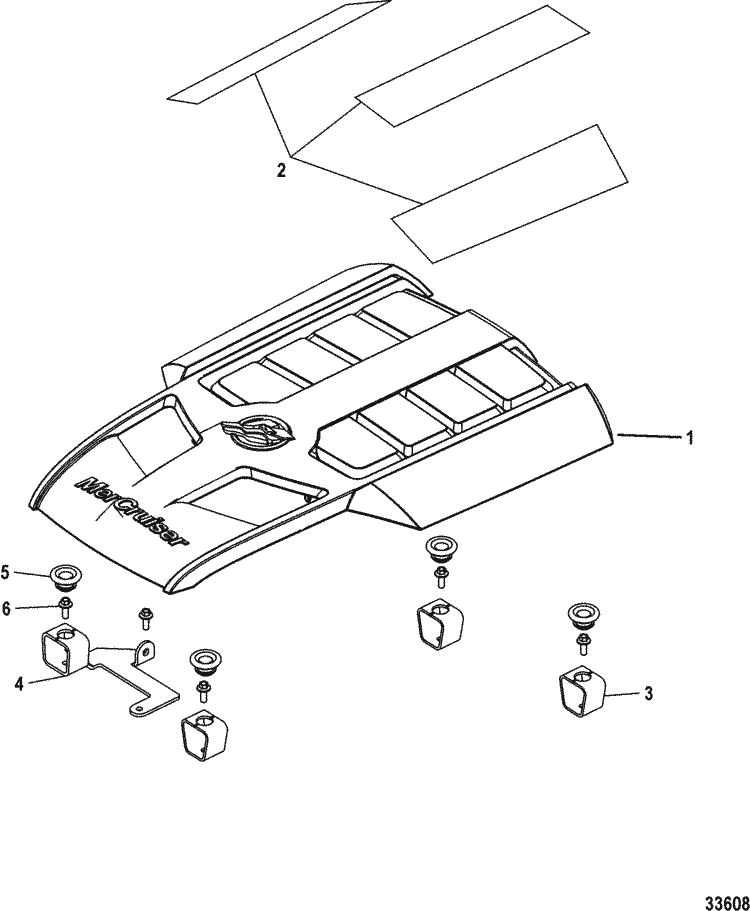

Parts for MerCruiser 496 Mag (H.O. Model) Engine Cover
Tap to zoom. Scroll down to order.
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 879288T19 | COVER, Engine (1 required per assembly) |
  |
|
879288T19 - Engine Cover [ More info ] Unavailable |
| #2 | 37-879288A41 | DECAL SET (1 required per assembly) 496 Base |
  |
|
37-879288A41 - Decal Set [ More info ] Unavailable |
| #2 | 37-879288A42 | DECAL SET (1 required per assembly) 496 H.O. |
  |
|
37-879288A42 - Decal Set [ More info ] Unavailable |
| #2 | 37-879288A23 | DECAL SET (1 required per assembly) 496 Base Seacore |
  |
|
37-879288A23 - Decal Set [ More info ] Unavailable |
| #2 | 37-879288A48 | DECAL SET (1 required per assembly) 496 H.O. Seacore |
  |
|
37-879288A48 - Decal Set [ More info ] Unavailable |
| #2 | 37-879172A09 | DECAL SET (1 required per assembly) 496 Base Axius |
  |
|
37-879172A09 - Decal Set [ More info ] Unavailable |
| #2 | 37-879172A10 | DECAL SET (1 required per assembly) 496 H.O. Axius |
  |
|
37-879172A10 - Decal Set [ More info ] Unavailable |
| #2 | 37-879172A04 | DECAL SET (1 required per assembly) 496 Base Axius Seacore |
  |
|
37-879172A04 - Decal Set [ More info ] Unavailable |
| #2 | 37-879172A05 | DECAL SET (1 required per assembly) 496 H.O. Axius Seacore |
  |
|
37-879172A05 - Decal Set [ More info ] Unavailable |
| #3 | 8M2003380 | BRACKET (4 required per assembly) Digital Throttle |
  |
|
8M2003380 - Bracket [ More info ]
|
| #4 | 8M2005404 | BRACKET (1 required per assembly) |
  |
|
8M2005404 - Bracket [ More info ] Unavailable |
| #5 | 25-8M2001671 | GROMMET (4 required per assembly) |
  |
|
25-8M2001671 - Grommet [ More info ]
|
| #6 | 10-40106 12 | SCREW, (M6 x 12) Stainless Steel (5 required per assembly) |
  |
|
10-40106 12 - Screw [ More info ]
|
