Parts for MerCruiser 496 Mag (H.O. Model) Block, Crankshaft, Oil Pump & Front Cover

Revise Search: All Models > 496 Mag (H.O. Model) > 1A611928 & Up > Block, Crankshaft, Oil Pump & Front Cover

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

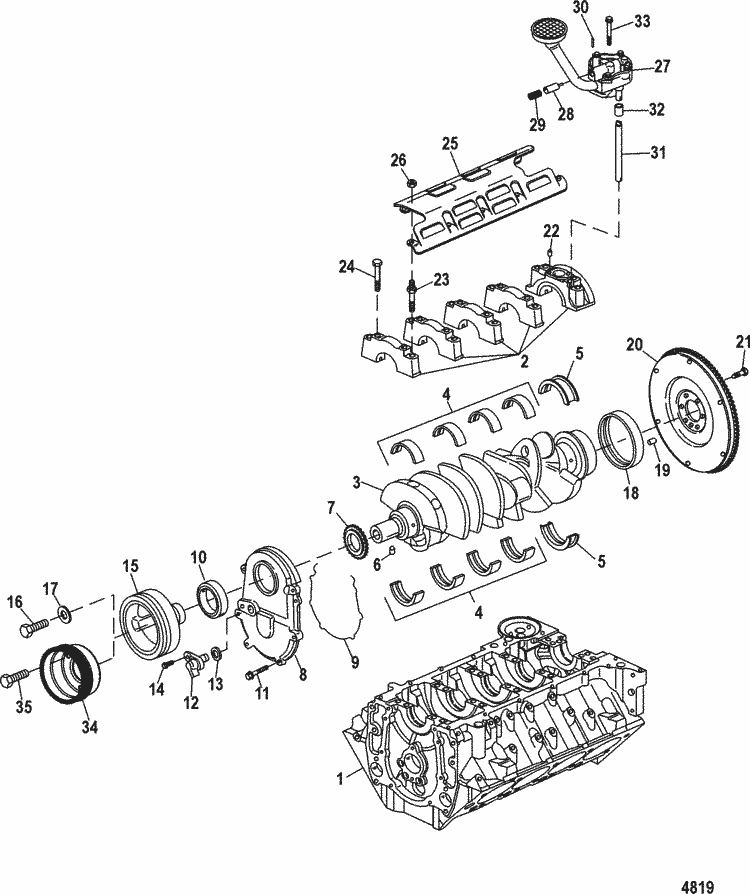

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	879172A34	PULLEY KIT, High Current, Axius (1 required per assembly)
		879172A34 - Pulley Kit [ More info ] $661.49 Available to Order: Shipping delay up to 10 days.
#NS	865752A01	LONGBLOCK ASSEMBLY, Base (1 required per assembly)
		865752A01 - 8M0086000 [ More info ] Unavailable
#NS	865754A01	LONGBLOCK ASSEMBLY, High Output (1 required per assembly)
		865754A01 - Lb 496 Ho 01-UP [ More info ] Unavailable
#1	NSS	NOT SOLD SEPARATE, Block, Engine (1 required per assembly) Order Longblock Assembly
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	429-881654001	CRANKSHAFT (1 required per assembly)
		429-881654001 - CrankShaft [ More info ] Unavailable
		4008M0084521 - CrankShaft [ More info ] Unavailable
#4	23-884702	BEARING KIT (4 required per assembly)
		23-884702 - Bearing Kit - Crankshaft [ More info ] $171.99 Available to Order: Shipping delay up to 10 days.
#5	23-881607001	BEARING KIT, Crankshaft Main Thrust (1 required per assembly)
		23-881607001 - Bearing Kit - Crankshaft Main Thrust [ More info ] Unavailable
#6	17-881605	PIN, Balancer Locating (1 required per assembly)
		17-881605 - Locating Pin [ More info ] $18.59 Available to Order: Shipping delay up to 10 days.
#7	43-881655	SPROCKET, Crankshaft (1 required per assembly)
		43-881655 - Sprocket [ More info ] $184.99 Available to Order: Shipping delay up to 10 days.
#8	892616001	COVER, Front (1 required per assembly)
		892616001 - Timing Cover [ More info ] Unavailable
#9	27-881604	GASKET, Front Cover (1 required per assembly)
		27-881604 - Front Cover Gasket [ More info ] $165.99 Available to Order: Shipping delay up to 10 days.
#10	26-881613001	SEAL, Front Crankshaft (1 required per assembly)
		26-881613001 - Seal [ More info ] $43.49 Available to Order: Shipping delay up to 10 days.
#11	10-881577001	SCREW, (M6 x 30) (6 required per assembly)
		10-881577001 - SCREW [ More info ] Unavailable
		108M0069806 - Screw [ More info ] $18.19 Available to Order: Shipping delay up to 10 days.
#12	892615002	SENSOR, Camshaft Position (1 required per assembly)
		892615002 - Cam Sensor [ More info ] $219.49 Available to Order: Shipping delay up to 10 days.
#14	10-883923	SCREW, (M6 x 20) (1 required per assembly)
		10-883923 - Bolt [ More info ] $24.69 Available to Order: Shipping delay up to 10 days.
#15	891769	BALANCER, Crankshaft (1 required per assembly)
		891769 - Balancer [ More info ] Unavailable
#16	10-881587	SCREW, (M16 x 1.5) (1 required per assembly)
		10-881587 - Bolt [ More info ] $29.69 Available to Order: Shipping delay up to 10 days.
#17	12-881614	WASHER (1 required per assembly)
		12-881614 - Washer [ More info ] $32.89 Available to Order: Shipping delay up to 10 days.
#18	26-881608001	SEAL, Rear Crankshaft (1 required per assembly)
		26-881608001 - Seal [ More info ] $126.04 1 In Stock.
#19	17-881609	PIN, Flywheel Locating (2 required per assembly)
		17-881609 - Pin, Flywheel Locating [ More info ] $18.80 Available to Order: Shipping delay up to 10 days.
#20	222-881640T01	FLYWHEEL (1 required per assembly) Base and High Output
		222-881640T01 - Flywheel [ More info ] $757.49 Available to Order: Shipping delay up to 10 days.
#21	10-881578	BOLT (6 required per assembly)
		10-881578 - Bolt [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#22	17-843378	PIN, Dowel, Oil Pump Locating (1 required per assembly)
		17-843378 - Pin, Dowel (.250) [ More info ] $15.99 1 In Stock.
#23	16-881615	STUD, Crankshaft Bearing Cap (10 required per assembly)
		16-881615 - Stud [ More info ] $44.49 Available to Order: Shipping delay up to 10 days.
#24	10-881580	SCREW, (M12 x 89) (10 required per assembly)
		10-881580 - Bolt [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#25	883236001	DEFLECTOR, Oil (1 required per assembly)
		883236001 - Oil Deflector [ More info ] $106.49 Available to Order: Shipping delay up to 10 days.
#26	11-881579	NUT (9 required per assembly)
		11-881579 - Nut [ More info ] Unavailable
		11-881579001 - Nut [ More info ] $13.09 Available to Order: Shipping delay up to 10 days.
#27	881652	PUMP, With Screen, Oil (1 required per assembly)
		881652 - 8M0069808 [ More info ] Unavailable
		8M0069808 - Oil Pump [ More info ] $592.99 Available to Order: Shipping delay up to 10 days.
#28	17-881611	PIN, Oil Pump (1 required per assembly)
		17-881611 - Pin, Oil Pump [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#29	24-881610	SPRING, Oil Pump (1 required per assembly)
		24-881610 - Spring, Oil Pump [ More info ] $18.99 Available to Order: Shipping delay up to 10 days.
#30	22-881643	VALVE, Pressure Relief (1 required per assembly)
		22-881643 - 8M0069808 [ More info ] Unavailable
#31	14761	SHAFT AND RETAINER, Oil Pump Drive (1 required per assembly)
		14761 - Shaft [ More info ] Unavailable
		8M0046892 - Shaft & Retainer [ More info ] $48.49 Available to Order: Shipping delay up to 10 days.
#32	23-36183	RETAINER, Oil Pump Drive (1 required per assembly)
		23-36183 - Retainer [ More info ] $5.49 $3.09 3 In Stock.
#33	10-881585	SCREW, (M10 x 60) (1 required per assembly)
		10-881585 - Bolt [ More info ] $15.89 Available to Order: Shipping delay up to 10 days.
#34	862349	PULLEY, Crankshaft (1 required per assembly)
		862349 - Crankshaft Pulley [ More info ] Unavailable
#34	8M2013566	PULLEY (1 required per assembly) Axius
		8M2013566 - Pulley - CrankShaft [ More info ] $183.99 Available to Order: Shipping delay up to 10 days.
#35	10-40090 25	SCREW, (M10 x 25) Stainless Steel (3 required per assembly)
		10-40090 25 - Screw [ More info ] $5.29 $4.24 3 In Stock.
