Parts for MerCruiser 496 Mag (Base Model) Shift Bracket, Digital Throttle Shift / Axius

Revise Search: All Models > 496 Mag (Base Model) > 1A611928 & Up > Shift Bracket, Digital Throttle Shift / Axius

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

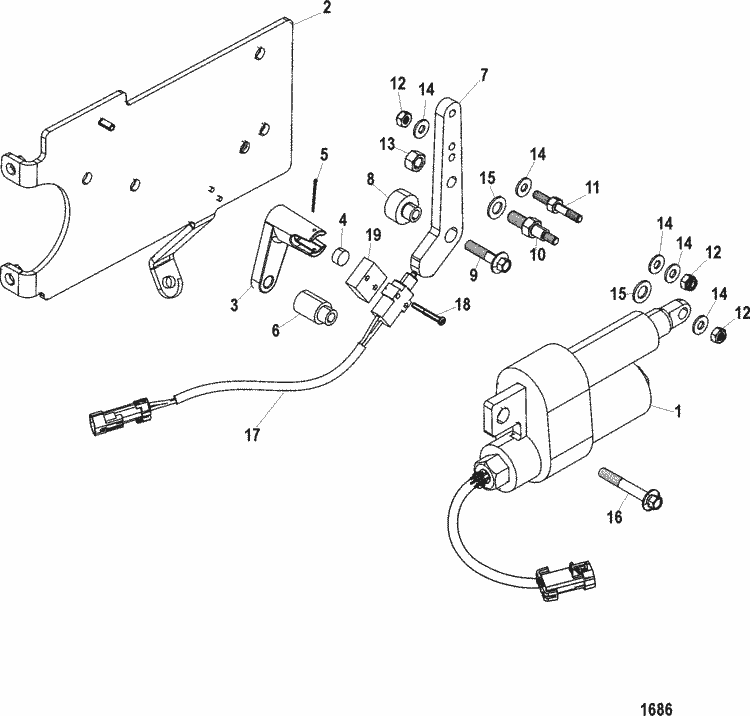

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	862909T01	SHIFT ACTUATOR ASSEMBLY (1 required per assembly) DTS / Axius
		862909T01 - Bracket Assembly - Shift [ More info ] $1,977.99 Available to Order: Shipping delay up to 10 days.
#1	879194T46	SHIFT ACTUATOR (1 required per assembly)
		879194T46 - Shift Actuator [ More info ] $940.99 In Stock
#2	862909 1	BRACKET, Shift Plate (1 required per assembly)
		862909 1 - Bracket - Shift [ More info ] $84.99 Available to Order: Shipping delay up to 10 days.
#3	864616	RETAINER, Shift Cable (1 required per assembly)
		864616 - Retainer [ More info ] $22.99 Available to Order: Shipping delay up to 10 days.
#4	23-98828	SPACER (1 required per assembly)
		23-98828 - Spacer [ More info ] Unavailable
		238M0207783 - SPACER [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#5	18-32857 1	COTTER PIN (1 required per assembly)
		18-32857 1 - Cotter Pin [ More info ] $3.99 10+ In Stock.
#6	23-863133	SPACER, Actuator (1 required per assembly)
		23-863133 - Spacer - Actuator [ More info ] $15.09 Available to Order: Shipping delay up to 10 days.
#7	863134 1	LEVER, Shift Arm (1 required per assembly)
		863134 1 - Lever [ More info ] Unavailable
		8M2018371 - Lever [ More info ] $112.49 Available to Order: Shipping delay up to 10 days.
#8	23-863132	SPACER, Shift Arm (1 required per assembly)
		23-863132 - Spacer - Shift Arm [ More info ] $23.59 Available to Order: Shipping delay up to 10 days.
#9	10-40011151	SCREW, (M8 x 35) Stainless Steel (1 required per assembly)
		10-40011151 - Screw [ More info ] $6.89 3 In Stock.
#10	16-864361	STUD (1 required per assembly)
		16-864361 - Stud [ More info ] $29.79 Available to Order: Shipping delay up to 10 days.
#11	16-96112	STUD, (.250-28 x 2.00), Throttle Cable Anchor (1 required per assembly)
		16-96112 - Stud [ More info ] Unavailable
		16-8M0113178 - Stud [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#12	11-826709109	NUT, (.250-28) Stainless Steel (3 required per assembly)
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 5 In Stock.
#13	11-46335	NUT, (.375-24) (1 required per assembly)
		11-46335 - Nut (.375-24) [ More info ] $2.97 Available to Order: Shipping delay up to 10 days.
#14	12-35462	WASHER, (.2656 x .625 x .0625) Stainless Steel (5 required per assembly)
		12-35462 - Washer, (.2656 X .625 X .0625) Stainless Steel [ More info ] $1.80 10+ In Stock.
#15	12-34931	WASHER, (.406 x .734 x .063) Stainless Steel (2 required per assembly)
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.
#16	10-40011155	SCREW, (M8 x 55) Stainless Steel (1 required per assembly)
		10-40011155 - Screw [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#17	87-889514A01	SWITCH (1 required per assembly)
		87-889514A01 - Switch [ More info ] Unavailable
		87-8M0052939 - Switch [ More info ] Unavailable
		87-8M0207794 - SWITCH [ More info ] $58.99 1 In Stock.
#18	10-865076	SCREW, (6-32 x 1.25) (2 required per assembly)
		10-865076 - Screw - Priced Individually [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#19	23-864386	SPACER, Switch (1 required per assembly)
		23-864386 - Spacer - Switch [ More info ] $21.59 Available to Order: Shipping delay up to 10 days.
