Parts for MerCruiser 496 Mag (Base Model) Axius Steering, High Pressure Filter Conversion Kit

Revise Search: All Models > 496 Mag (Base Model) > 1A066166 - 1A611927 > Axius Steering, High Pressure Filter Conversion Kit

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

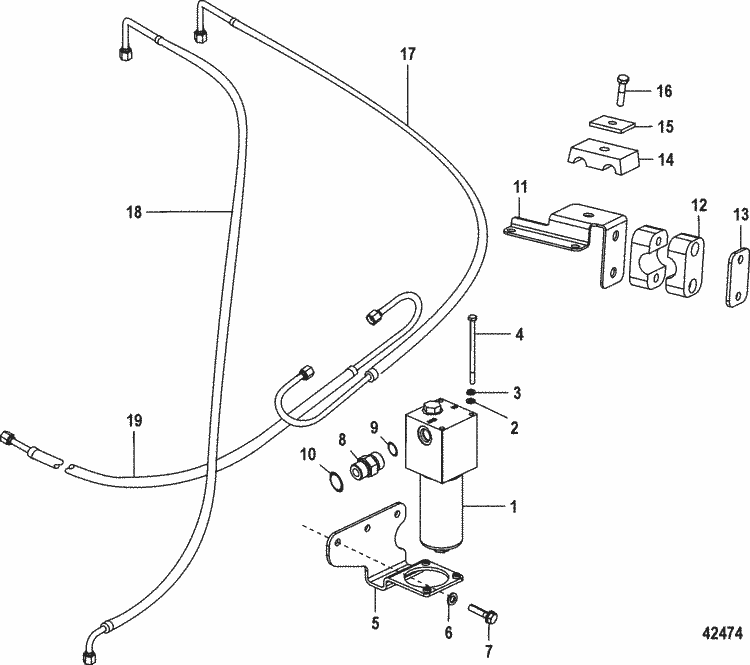

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	879172A19	DUST CAP KIT (1 required per assembly) (Refer to Service Bulletin SMC-09-06)
		879172A19 - DUST CAP Kit [ More info ] $70.75 Available to Order: Shipping delay up to 10 days.
#	8M8024873	FILTER KIT, High Pressure, Conversion (1 required per assembly)
		8M8024873 - Filter Kit -hp [ More info ] $1,508.99 Available to Order: Shipping delay up to 10 days.
#1	35-879288T	FILTER, High Pressure (1 required per assembly)
		35-879288T - Filter [ More info ] $863.49 Available to Order: Shipping delay up to 10 days.
#2	12-29245	WASHER, (.281 x .500 x .060) Stainless Steel (3 required per assembly)
		12-29245 - Washer [ More info ] $0.89 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#3	13-26992	LOCKWASHER, (.250) Stainless Steel (3 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#4	10-844886	SCREW, (.250-20 x 4.250) (3 required per assembly)
		10-844886 - Screw [ More info ] $6.63 Available to Order: Shipping delay up to 10 days.
#5	879172T	BRACKET (1 required per assembly)
		879172T - Bracket [ More info ] $121.49 Available to Order: Shipping delay up to 10 days.
#6	13-72521	LOCKWASHER, Internal Tooth (3 required per assembly)
		13-72521 - LockWasher [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#7	10-816585	SCREW, (.375-18 x .875) (3 required per assembly)
		10-816585 - Screw [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#8	22-8M2015982	FITTING, Adapter (-6ORF TO -8ORB) (2 required per assembly)
		22-8M2015982 - Fitting [ More info ] $67.49 Available to Order: Shipping delay up to 10 days.
#9	NSS	NOT SOLD SEPARATE, O-RING (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#11	879194T	BRACKET (1 required per assembly)
		879194T - Bracket [ More info ] $18.79 Available to Order: Shipping delay up to 10 days.
#12	8M2017128	PLATE (1 required per assembly)
		8M2017128 - Plate [ More info ] $8.29 Available to Order: Shipping delay up to 10 days.
#13	8M2017127	CLAMP (2 required per assembly)
		54-8M2017127 - Clamp [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#14	54-8M2017031	CLAMP (2 required per assembly)
		54-8M2017031 - Clamp [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#15	8M2017033	PLATE (1 required per assembly)
		8M2017033 - Plate [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#16	10-40003 32	SCREW, (M6 x 35) (1 required per assembly)
		10-40003 32 - Screw [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#17	32-8M2016704	HOSE, Cylinder to Filter (1 required per assembly) (Refer to Service Bulletin SMC-09-06)
		32-8M2016704 - Hose - Cylinder To Filter [ More info ] $236.99 Available to Order: Shipping delay up to 10 days.
#18	32-8M2016700	HOSE, Cylinder to Cooler (1 required per assembly) (Refer to Service Bulletin SMC-09-06)
		32-8M2016700 - Hose - Cylinder To Cooler [ More info ] $199.49 Available to Order: Shipping delay up to 10 days.
#19	32-8M2016702	HOSE, Pump to Filter (1 required per assembly)
		32-8M2016702 - Hose - Pump To Filter [ More info ] $719.49 Available to Order: Shipping delay up to 10 days.
