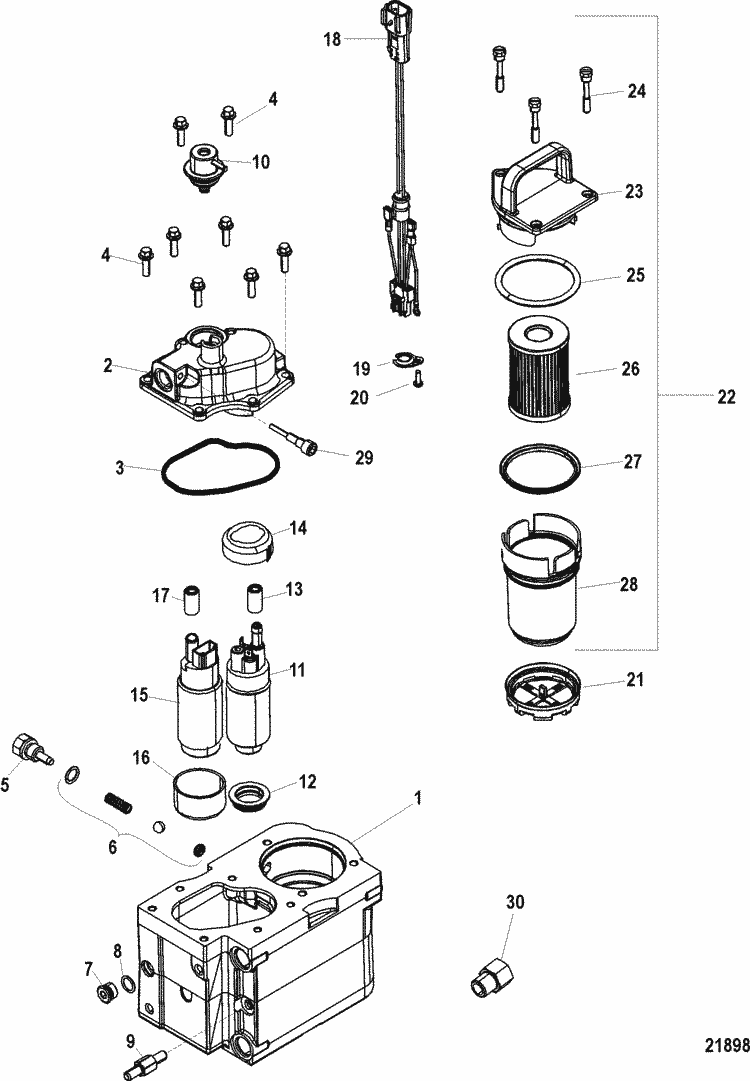

Parts for MerCruiser 496 Mag (Base Model) Fuel Module Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 864650A05 | MODULE KIT, Fuel Pump, Complete (1 required per assembly) |
  |
|
864650A05 - REF SB 09-01,CALL FOR HELP [ More info ] Unavailable |
| #1 | 892664 | HOUSING, Fuel Module (1 required per assembly) |
  |
892664 - Housing-FUEL MOD [ More info ] Unavailable |
|
  |
|
892664T01 - REF MCM SB 09-01,NLA [ More info ] Unavailable |
| #2 | 892677 | COVER, Fuel Module Housing (1 required per assembly) |
  |
892677 - Fuel Module Cover [ More info ] Unavailable |
|
  |
|
8M0086387 - Fuel Module Cover [ More info ] Unavailable |
| #3 | 26-892683 | SEAL (1 required per assembly) |
  |
|
26-892683 - Seal [ More info ]
|
| #4 | 10-892684 | SCREW (8 required per assembly) |
  |
|
10-892684 - Screw - Priced Individually [ More info ]
|
| #5 | 892670A01 | CHECK VALVE KIT (1 required per assembly) |
  |
|
892670A01 - Check Valve Kit [ More info ]
|
| #6 | NSS | NOT SOLD SEPARATE, Check Valve (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #9 | 16-865326 | STUD, (M8 x 30) (1 required per assembly) |
  |
|
16-865326 - Stud [ More info ]
|
| #10 | 892681 | REGULATOR (1 required per assembly) |
  |
|
892681 - Regulator [ More info ]
|
  |
|
18-33211 - Fuel Pressure Regulator 892681 [ More info ]
|
| #11 | 866170A01 | PUMP ASSEMBLY, Fuel - Low Pressure (1 required per assembly) |
  |
|
866170A01 - Fuel Pump Kit [ More info ]
|
  |
|
18-8865 - Fuel Pump 866170A01 [ More info ]
|
| #15 | 866169A01 | PUMP ASSEMBLY, Fuel - High Pressure (1 required per assembly) |
  |
866169A01 - Fuel Pump Kit [ More info ] Unavailable |
|
  |
|
866169T01 - Fuel Pump Kit [ More info ]
|
  |
|
1399-39541 - Fuel Pump Kit [ More info ]
|
| #18 | 84-895013A02 | HARNESS ASSEMBLY (1 required per assembly) |
  |
84-895013A02 - Fuel Module Harness [ More info ] Unavailable |
|
  |
|
84-8M0056175 - Harness [ More info ]
|
| #21 | 35-892665 | FILTER (1 required per assembly) |
  |
35-892665 - Filter [ More info ] Unavailable |
|
  |
|
35-8M0204703 - Fuel Filter, GEN 3 Coolfuel [ More info ]
|
| #22 | 892687A02 | CARTRIDGE ASSEMBLY, Fuel Filter (1 required per assembly) |
  |
|
892687A02 - CARTRIDGE ASSEMBL [ More info ] Unavailable |
| #26 | 35-866171A01 | FILTER (1 required per assembly) |
  |
35-866171A01 - Fuel Filter [ More info ] Unavailable |
|
  |
|
35-8M0093688 - Fuel Filter [ More info ]
|
  |
|
35-13523-1 - Fuel Filter, Gen III Cool Fuel [ More info ]
|
  |
|
18-7977-1 - Fuel Filter [ More info ]
|
  |
|
18-7977-1 - Fuel Filter [ More info ]
|
| #29 | 10-866114 | SCREW, (.250-28) Special (1 required per assembly) |
  |
|
10-866114 - Screw [ More info ]
|
| #30 | 22-88517 | FITTING, Reducing (1 required per assembly) |
  |
|
22-88517 - Fitting [ More info ]
|
