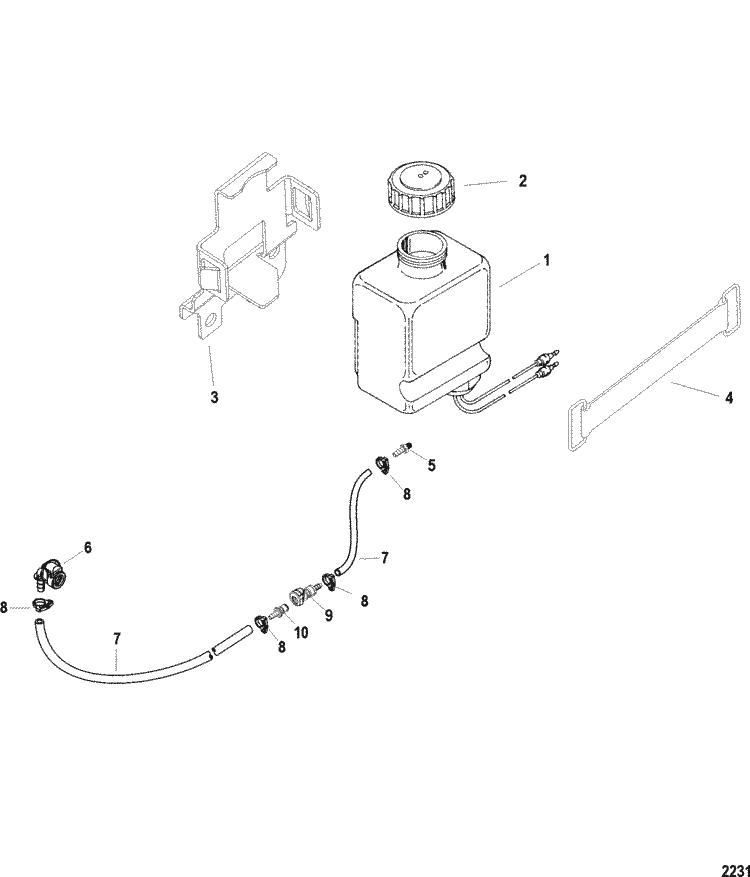

Parts for MerCruiser 496 Mag (Base Model) Drive Lube Reservoir Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 806193A36 | RESERVOIR, Drive Lube (1 required per assembly) |
  |
806193A36 - BOTTLE ASSY-OIL [ More info ] Unavailable |
|
  |
806193A46 - Oil Bottle Assembly ZZ [ More info ] Unavailable |
|
  |
|
8M0075709 - Oil Bottle Assembly [ More info ]
|
| #2 | 36-806727 1 | CAP, Drive Lube Monitor, Drive Lube Reservoir (1 required per assembly) |
  |
|
36-806727 1 - Reservoir Cap [ More info ]
|
| #3 | 860065A 1 | BRACKET KIT, Oil Bottle, Drive Lube Reservoir (1 required per assembly) |
  |
|
860065A 1 - Bracket Kit [ More info ]
|
  |
|
806293T - Bracket [ More info ]
|
| #4 | 808023T | STRAP, Bracket (1 required per assembly) |
  |
|
808023T - Retaining Strap [ More info ]
|
| #5 | 22-808624 | CONNECTOR, Lube Reservoir (1 required per assembly) |
  |
|
22-808624 - Connector [ More info ]
|
| #6 | 22-861163 | QUICK CONNECTOR, (90 Degree), To Transom (1 required per assembly) |
  |
|
22-861163 - Connector [ More info ]
|
| #7 | 32-19409 71 | HOSE, (54.00 Inches Bulk) (1 required per assembly) |
  |
32-19409 71 - Hose-54 Inch [ More info ] Unavailable |
|
  |
32-8M0062600 - Hose - Lock On [ More info ] Unavailable |
|
  |
|
32-8M0040618 - Oil Reservoir Hose, 54 inch [ More info ]
|
  |
|
32-8M0214996 - OIL RESERVIOR HOSE 54IN ZZ [ More info ]
|
| #8 | 54-41582 5 | CLAMP, Nylon, Hose (A/R required per assembly) |
  |
|
54-41582 5 - Clamp - Priced Individually [ More info ]
|
| #9 | 22-865379 | FITTING, Female, Quick Connect (1 required per assembly) |
  |
|
22-865379 - Connector [ More info ]
|
| #10 | 22-865191 | FITTING, Male, Quick Connect (1 required per assembly) |
  |
|
22-865191 - Connector [ More info ]
|
