Parts for MerCruiser 496 Mag (Base Model) Mercathode

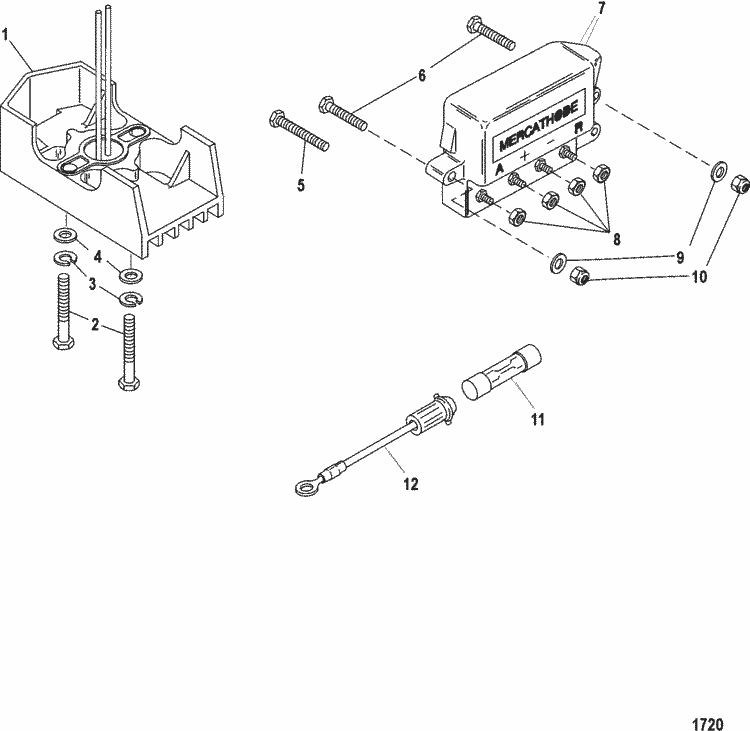

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 98869A14 | MERCATHODE SYSTEM (1 required per assembly) |
  |
98869A14 - Mercathode Kit [ More info ] Unavailable |
|
  |
|
8M0085693 - Mercathode Kit [ More info ]
|
| #1 | 98869A11 | ELECTRODE ASSEMBLY (1 required per assembly) |
  |
98869A11 - Electrode Assembly [ More info ] Unavailable |
|
  |
98869A17 - Housing -mercathod [ More info ] Unavailable |
|
  |
|
8M0085692 - Mercathode System [ More info ]
|
| #2 | 10-69067 | SCREW, (.250-20 x 1.375) (2 required per assembly) |
  |
|
10-69067 - Screw - Priced Individually [ More info ]
|
| #3 | 13-26992 | LOCKWASHER, (.250) Stainless Steel (2 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #4 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel (2 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #5 | 10-72202 | SCREW, (#10-32 x 1.25) (1 required per assembly) |
  |
|
10-72202 - Screw [ More info ]
|
| #6 | 10-24637 | SCREW, (#10-32 x .875) (2 required per assembly) |
  |
|
10-24637 - Screw, NLA [ More info ]
|
| #7 | 42600A 3 | CONTROLLER ASSEMBLY (1 required per assembly) |
  |
42600A 3 - Controller Assembly [ More info ] Unavailable |
|
  |
|
42600A09 - Mercathode Kit [ More info ]
|
| #8 | 11-68219 | NUT, (#10-32) Stainless Steel (4 required per assembly) |
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #9 | 12-21273 | WASHER (2 required per assembly) |
  |
|
12-21273 - Washer - Priced Individually [ More info ]
|
| #10 | 11-46438 | NUT, (#10-32) (2 required per assembly) |
  |
|
11-46438 - Nut (#10-32) [ More info ]
|
| #11 | 88-79091 | FUSE, 20 Ampere (1 required per assembly) |
  |
|
88-79091 - Fuse - 20 Amp - Priced Individually [ More info ]
|
  |
|
888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ]
|
| #12 | 84-95084A 9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (1 required per assembly) |
  |
|
84-95084A 9 - Cable Assembly [ More info ]
|
| #12 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red (1 required per assembly) |
  |
84-95084A10 - Cable Assembly [ More info ] Unavailable |
|
  |
|
84-8M0207788 - CABLE ASSY [ More info ] Unavailable |
| #NS | 10-62568 | SCREW, (#10-16 x .375) (1 required per assembly) |
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
