Parts for MerCruiser 485 1980-1982 Hydraulic Pump Assembly (Plastic Reservoir)

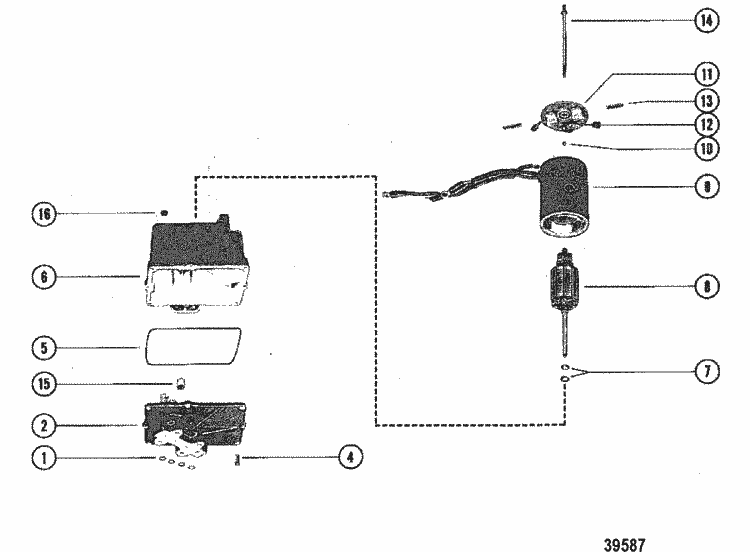

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 93247A 4 | PUMP ASSEMBLY, Hydraulic, COMPLETE (1 required per assembly) Use without Control Valve |
  |
93247A 4 - Hydraulic Pump [ More info ] Unavailable |
|
  |
|
93247A 7 - Trim Pump Assembly [ More info ]
|
  |
|
18-6799 - Trim Pump Assembly, 93247A7 [ More info ]
|
  |
|
18-6768 - Power Trim Pump, 93247A7 [ More info ]
|
  |
|
300-06763 - Trim Motor Reservoir, 67914A2 [ More info ]
|
| # | 88475A 5 | PUMP ASSEMBLY, Hydraulic, COMPLETE (1 required per assembly) Use with Control Valve |
  |
88475A 5 - Pump [ More info ] Unavailable |
|
| #1 | 25-48171 | O-RING, (.364. x .070) (4 required per assembly) Use with Hydraulic Pump with Control Valve |
  |
|
25-48171 - O-Ring - Priced Individually [ More info ]
|
  |
|
18-7168-9 - O-Ring (PK5) 202893, 25-48171 [ More info ]
|
| #2 | 392-7734 | VALVE BODY AND GEAR ASSEMBLY (1 required per assembly) Use with Hydraulic Pump with Control Valve |
  |
|
39-27734 - Valve Body, NLA [ More info ] Unavailable |
| #2 | 392-8263 | VALVE BODY AND GEAR ASSEMBLY (1 required per assembly) Use with Hydraulic Pump without Control Valve |
  |
392-8263 - Body/Gear [ More info ] Unavailable |
|
  |
392-8263A 1 - Valve Body Assembly [ More info ] Unavailable |
|
| #4 | 10-69570 | SCREW, (#10-16 x .750), VALVE BODY TO RESERVOIR (8 required per assembly) |
  |
|
10-69570 - Screw [ More info ]
|
| #5 | 392-7735 | SEAL, RESERVOIR TO VALVE BODY AND GEAR (1 required per assembly) |
  |
|
392-7735 - Seal Ring, NLA [ More info ] Unavailable |
| #6 | 392-7731 | RESEROVIR ASSEMBLY (PLASTIC) (1 required per assembly) |
  |
|
392-7731 - Reservoir Assembly [ More info ] Unavailable |
| #7 | 392-7732 | WASHER, THRUST-ARMATURE (AR required per assembly) |
  |
|
392-7732 - Washer - Thrust - Armature [ More info ]
|
| #8 | 392-7729 | ARMATURE, FIELD AND FRAME (1 required per assembly) |
  |
|
392-7729 - Armature Assembly, NLA [ More info ]
|
| #9 | 392-2942 | FIELD AND FRAME ASSEMBLY (1 required per assembly) Use with Hydraulic Pump with Control Valve |
  |
|
392-2942 - Frame And Field, NLA [ More info ]
|
| #9 | 392-8261 | FIELD AND FRAME ASSEMBLY (1 required per assembly) Use with Hydraulic Pump without Control Valve |
  |
|
392-8261 - Field/Frame Assembly, NLA [ More info ] Unavailable |
| #10 | 392-7730 | BALL, COMMUTATOR END PLATE (1 required per assembly) |
  |
|
392-7730 - Thrust Ball, NLA [ More info ]
|
| #11 | 392-2940 | PLATE ASSEMBLY, COMMUTATOR END (1 required per assembly) Use with Hydraulic Pump with Control Valve |
  |
|
392-2940 - Commutator Head [ More info ] Unavailable |
  |
|
TR217 - Head Assembly, 392-9250 [ More info ]
|
| #11 | 392-8262 | PLATE ASSEMBLY, COMMUTATOR END (1 required per assembly) Use with Hydraulic Pump without Control Valve |
  |
|
392-8262 - Head Assembly [ More info ]
|
| #12 | 392-2941 | BRUSH SET, COMMUTATOR END PLATE (1 required per assembly) |
  |
|
392-2941 - Brush Set [ More info ]
|
  |
|
392-8989 - Brush Set for 3 - Wire Motors Only. [ More info ]
|
| #13 | 392-2529 | SPRING SET, BRUSH TENSION (1 required per assembly) |
  |
|
392-2529 - Spring Set, Brush Tension,NLA [ More info ]
|
| #14 | 392-7733 | BOLT SET, THRU-PLATE AND FRAME TO RESERVOIR (1 required per assembly) |
  |
|
392-7733 - Thru Bolt Set, NLA [ More info ]
|
| #15 | 392-7727 | COUPLER AND SHAFT (1 required per assembly) |
  |
|
392-7727 - Coupler Kit, NLA [ More info ]
|
| #16 | 392-7728 | FILL PLUG, RESERVOIR (1 required per assembly) |
  |
|
|
