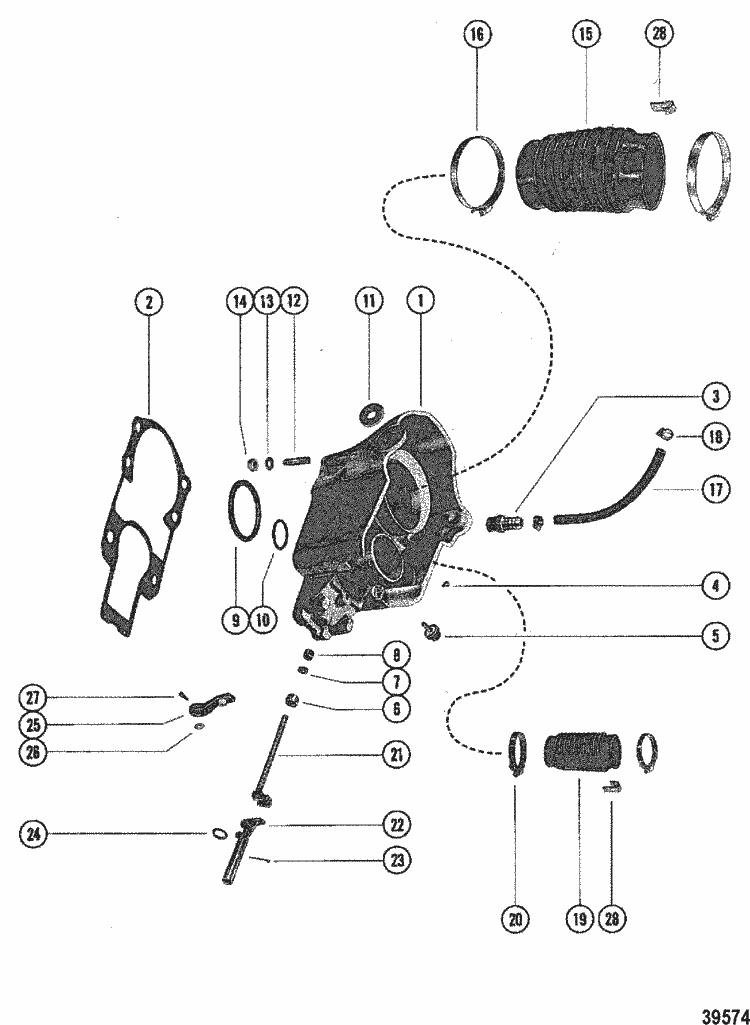

Parts for MerCruiser 485 1980-1982 Bell Housing Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 65535A 4 | BELL HOUSING ASSEMBLY (1 required per assembly) |
  |
65535A 4 - Housing [ More info ] Unavailable |
|
  |
94995A 3 - BELL HSG ASSY [ More info ] Unavailable |
|
  |
|
42815A 3 - Bell Housing [ More info ]
|
  |
|
42815A 6 - Bell Housing [ More info ]
|
| #2 | 27-64818 | GASKET, DRIVESHAFT HSG. TO BELL HSG (1 required per assembly) |
  |
27-64818 - Drive Shaft Housing To Bell Housing Gasket [ More info ] Unavailable |
|
  |
27-64818A 1 - Gasket Kit [ More info ] Unavailable |
|
  |
27-64818A 4 - Drive Unit Gasket Set [ More info ] Unavailable |
|
  |
|
27-64818Q 4 - Drive Gasket Set [ More info ]
|
  |
|
18-2820-9 - Gasket 27-64818, 5PK [ More info ]
|
  |
|
18-2614 - Gasket Set 27-64818A1 [ More info ]
|
  |
|
27-64818T 4 - Gasket Set [ More info ]
|
| #3 | 22-33066 | CONNECTOR, (.500-14) Straight - Brass, WATER HOSE TO BELL HOUSING (1 required per assembly) |
  |
|
22-33066 - Connector [ More info ]
|
| #4 | 10-69707 | SCREW, BELL HOUSING FLANGE (4 required per assembly) |
  |
|
10-69707 - Screw - Priced Individually [ More info ]
|
| #5 | 63679 | BUMPER, BELL HOUSING (1 required per assembly) |
  |
|
63679 - Bell Housing Bumper, NLA [ More info ]
|
| #6 | 23-79372 | BUSHING, BELL HOUSING (5/8") (1 required per assembly) |
  |
|
23-79372 - Bushing - Bell Housing - 5/8 Inch [ More info ]
|
  |
|
23-814308 - Bushing [ More info ]
|
| #7 | 26-45587 | SEAL, Oil, BELL HOUSING (1 required per assembly) |
  |
|
26-45587 - Seal - Priced Individually [ More info ]
|
| #8 | 23-79373 | BUSHING, BELL HOUSING (5/16") (1 required per assembly) |
  |
|
23-79373 - Bushing - Bell Housing - 5/16 Inch [ More info ]
|
  |
23-79373A 1 - Bushing KIT [ More info ] Unavailable |
|
  |
|
23-805041A 2 - Bushing Kit [ More info ]
|
  |
|
18-2622 - Bushing Kit, 23-805041A2 [ More info ]
|
| #9 | 27-35982 | GASKET, Rubber, BELL HOUSING (1 required per assembly) |
  |
|
27-35982 - 27-35982 - GASKET Rubber [ More info ] Unavailable Replaced by -8M0204656 |
  |
|
278M0204656 - Gasket Note: Priced Individually [ More info ]
|
| #10 | 25-33504 | O-RING, BELL HOUSING (1 required per assembly) |
  |
|
25-33504 - O-Ring - Priced Individually [ More info ]
|
  |
|
258M0214926 - O RING Priced Individually [ More info ]
|
| #11 | 12-72498 | WASHER, Synthane, BELL HOUSING (2 required per assembly) |
  |
12-72498 - Washer, Synthane [ More info ] Unavailable |
|
  |
|
128M0162651 - WASHER, Sold Individually [ More info ]
|
| #12 | 16-59579 | STUD, (.437-14/.437-20 x 2.812), BELL HOUSING TO DRIVESHAFT HOUSING (6 required per assembly) |
  |
|
|
| #13 | 12-35935 | WASHER, (.435 x .875 x .105) Stainless Steel, BELL HOUSING STUD (6 required per assembly) |
  |
12-35935 - Washer, (.435 X .875 X .105) Stainless Steel [ More info ] Unavailable |
|
  |
|
12-8M0204655 - WASHER Note: Priced Individually C/U W/BELHSG&T PINZZ [ More info ]
|
  |
|
18-0203-9 - Washer, 12-35935, 5PK [ More info ]
|
| #14 | 11-34933 | NUT, (.437-20) Stainless Steel, BELL HOUSING STUD (6 required per assembly) |
  |
|
11-34933 - Nut (7/16-20) [ More info ]
|
  |
|
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|
11-00118 - Nut, Sold Individually [ More info ]
|
| #15 | 60932A 4 | BELLOWS ASSEMBLY, UNIVERSAL JOINT (1 required per assembly) |
  |
|
60932A 4 - Bellows Assembly [ More info ]
|
  |
|
18-2751 - Bellows 60932A4 [ More info ]
|
| #16 | 54-31765 | CLAMP, UNIVERSAL JOINT BELLOWS TO BELL HSG. AND GIMBAL HSG. (2 required per assembly) |
  |
54-31765 - Clamp [ More info ] Unavailable |
|
  |
|
54-815504372 - Clamp [ More info ]
|
| #17 | 32-32461 | HOSE, WATER - BELL HOUSING TO GIMBAL HOUSING (13 3/4") (1 required per assembly) |
  |
|
32-32461 - Hose - Water - Bell Housing To Gimbal Housing [ More info ]
|
  |
|
18-3601 - Hose, 32-32461 [ More info ]
|
| #18 | 54-32523 | CLAMP, WATER HOSE ATTACHING (2 required per assembly) |
  |
54-32523 - Hose Attaching Clamp [ More info ] Unavailable |
|
  |
|
54-815504310 - Clamp [ More info ]
|
| #19 | 32734A 3 | BELLOWS, EXHAUST (1 required per assembly) (IN-LINE ENGINES) |
  |
32734A 3 - Bellows Assembly [ More info ] Unavailable |
|
  |
|
18654A 1 - Bellows Assembly [ More info ] Unavailable |
  |
|
18-2750 - Bellows 18654A1 [ More info ]
|
  |
|
8M0124227 - Exhaust Bellows [ More info ]
|
| #19 | 78458A 1 | TUBE, EXHAUST (1 required per assembly) (V-8 ENGINES) |
  |
|
78458A 1 - Exhaust Tube Assembly [ More info ]
|
  |
|
18-2760 - Exhaust Tube 78458A1 [ More info ]
|
  |
|
61-00519 - Exhaust Bellows, 78458A 1 [ More info ]
|
| #20 | 54-32533 | CLAMP, EXHAUST BELLOWS ATTACHING (2 required per assembly) |
  |
|
54-32533 - Hose Attaching Clamp [ More info ]
|
  |
|
54-815504348 - Clamp [ More info ]
|
 |
|
18-710-48-2 - HOSE CLAMP [ More info ]
|
| #21 | 45589A 1 | SHAFT ASSEMBLY, SHIFT - UPPER (1 required per assembly) |
  |
45589A 1 - Shaft Assembly [ More info ] Unavailable |
|
  |
|
45589A 3 - Shift Shaft Assembly [ More info ] Unavailable |
| #22 | 62104 | SHAFT, SHIFT - INTERMEDIATE (1 required per assembly) |
  |
62104 - Shaft [ More info ] Unavailable |
|
  |
|
62104 1 - Shift Shaft [ More info ] Unavailable |
| #23 | 18-32665 | COTTER PIN, INTERMEDIATE SHIFT SHAFT RETAINING (1 required per assembly) |
  |
|
18-32665 - Cotter Pin - Priced Individually [ More info ]
|
| #24 | 12-32666 | WASHER, INTERMEDIATE SHIFT SHAFT (1 required per assembly) |
  |
|
12-32666 - Washer, Intermediate Shift Shaft [ More info ]
|

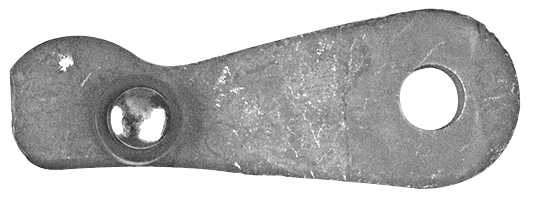

| #25 | 45518A 1 | LEVER ASEMBLY, UPPER SHIFT SHAFT (1 required per assembly) |
  |
45518A 1 - Lever - Priced Individually [ More info ] Unavailable |
|
  |
45518A 2 - Lever Assembly [ More info ] Unavailable |
|
  |
45518A 3 - Shift Lever Assembly [ More info ] In Stock |
|
  |
|
8M0241961 - Lever, Upper Shift [ More info ]
|
  |
|
18-2161 - Shift Arm 45518A3 [ More info ]
|
  |
|
93-01358 - Shift Arm, 45518A3 [ More info ]
|
| #26 | 12-39116 | WASHER, UPPER SHIFT LEVER (1 required per assembly) |
  |
|
12-39116 - Washer, Nylon [ More info ]
|
| #27 | 10-45590 | SCREW, (.250-28), UPPER SHIFT LEVER TO SHIFT SHAFT (1 required per assembly) |
  |
10-45590 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
|
10-8M0084649 - Screw - Priced Individually [ More info ]
|
| #28 | 54-86049 | CLIP, Grounding, BELLOWS (4 required per assembly) |
  |
|
54-86049 - Clip Note: - Priced Individually [ More info ]
|
  |
|
54-8M0126505 - 8ROUNDING Clip - Priced Individually [ More info ]
|
