Parts for MerCruiser 460 TRS GM 482 V-8 1983-1986 Starter Motor Assembly

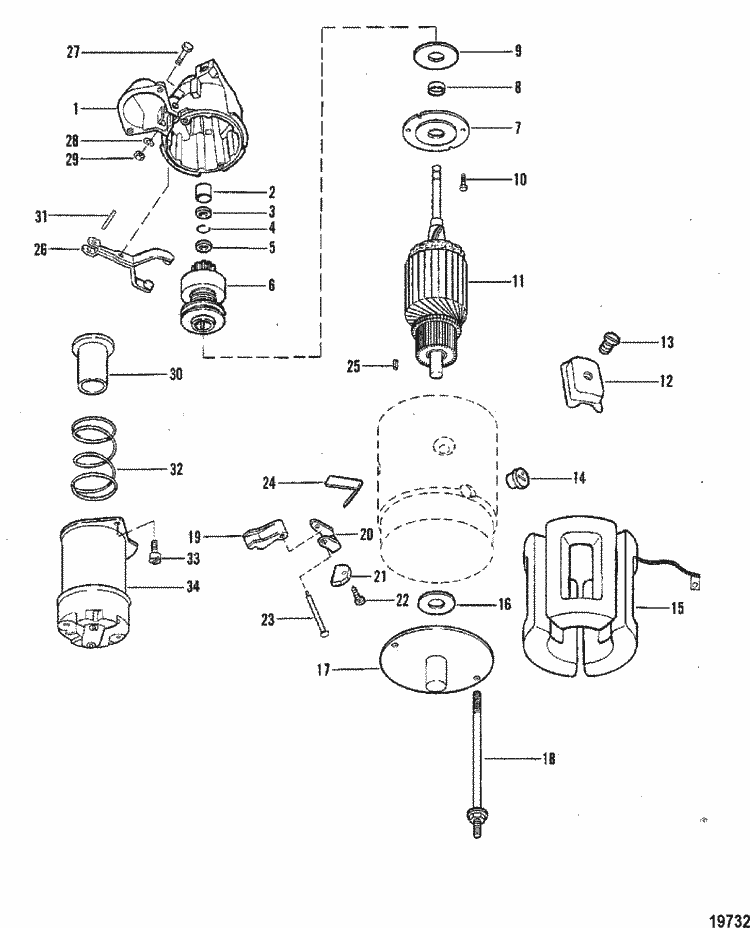

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 50-99419A 3 | STARTER MOTOR ASSEMBLEY (1 required per assembly) |
  |
50-99419A 3 - Starter Motor [ More info ] Unavailable |
|
  |
50-17251A 3 - Starter [ More info ] Unavailable |
|
  |
50-808011A 1 - Starter Assembly [ More info ] Unavailable |
|
  |
50-808011A 4 - Starter Motor ASY [ More info ] Unavailable |
|
  |
|
50-808011A05 - Starter Motor Assembly [ More info ]
|
  |
|
18-5911 - Starter, 60-5119 [ More info ]
|
  |
|
18-5908 - Starter, 50-808011A1, New [ More info ]
|
  |
|
18-5603-1 - Mercury/Pleasurecraft Starter [ More info ]
|
  |
|
30459 - Starter, 50-808011A4, 3862985 [ More info ]
|
  |
|
|
| #1 | 71696 | HOUSING, DRIVE END (1 required per assembly) |
  |
|
71696 - Drive Housing, NLA [ More info ] Unavailable |
| #2 | 23-33369 | BUSHING, DRIVE END HOUSING (1 required per assembly) |
  |
|
23-33369 - Bushing, NLA [ More info ]
|
| #3 | 33292 | COLLAR, THRUST (1 required per assembly) |
  |
33292 - Collar [ More info ] Unavailable |
|
  |
814474 - COLLAR [ More info ] Unavailable |
|
  |
|
23-809457 - Thrust Collar, NLA [ More info ] Unavailable |
| #4 | 53-33290 | RING, Retaining, PINION STOP COLLAR (1 required per assembly) |
  |
|
53-33290 - Ring - Retaining - Priced Individually [ More info ]
|
| #5 | 33291 | COLLAR, PINION STOP (1 required per assembly) |
  |
|
|
| #6 | 68608 | DRIVE ASSEMBLY, CLUTCH (1 required per assembly) |
  |
|
68608 - Drive Assembly, NLA [ More info ]
|
| #7 | N.S.S. | Not Sold Separate, Plate-Bearing (DELCO REMY #1956939) (1 required per assembly) |
  |
|
N.S.S. - Not Sold Separate [ More info ] Unavailable |
| #8 | 23-71694 | BUSHING, BEARING PLATE (1 required per assembly) |
  |
|
23-71694 - Bushing, NLA [ More info ]
|
| #9 | 12-68614 | WASHER, BEARING PLATE (2 required per assembly) |
  |
|
12-68614 - WASHER,NLA [ More info ] Unavailable |
| #10 | 10-79209 | SCREW (2 required per assembly) |
  |
|
10-79209 - Screw, NLA [ More info ]
|
| #11 | 75665 | ARMATURE (1 required per assembly) |
  |
|
75665 - Armature, NLA [ More info ] Unavailable |
| #14 | 25-79208 | GROMMET, FIELD COIL- FIELD FRAME (1 required per assembly) |
  |
|
25-79208 - Grommet, NLA [ More info ] Unavailable |
| #15 | 75664 | COIL ASSEMBLY (1 required per assembly) |
  |
|
75664 - Field Coil ASSY,NLA [ More info ] Unavailable |
| #16 | 12-33258 | WASHER, Leather, COMMUTATOR END FRAME (1 required per assembly) |
  |
|
12-33258 - Washer, Leather - Commutator End Frame, NLA [ More info ]
|
| #17 | 79211 | FRAME, COMMUTATOR END-LOWER (1 required per assembly) |
  |
|
79211 - Frame, NLA [ More info ] Unavailable |
| #19 | 33284 | HOLDER, INSULATED- FIELD FRAME BRUSH (2 required per assembly) |
  |
|
33284 - Insulated Holder, NLA [ More info ] Unavailable |
| #20 | 33283 | HOLDER, FIELD FRAME BRUSH GROUND (2 required per assembly) |
  |
|
33283 - Holder, NLA [ More info ]
|
| #21 | 33270 | BRUSH, FIELD FRAME (4 required per assembly) |
  |
|
|
| #23 | 33294 | SUPPORT, GROUND AND INSULATED HOLDERS (2 required per assembly) |
  |
|
33294 - Support, NLA [ More info ]
|
| #26 | 33297 | LEVER, SHIFT (1 required per assembly) |
  |
|
|
| #28 | 12-68615 | WASHER, SHIFT LEVER STUD (1 required per assembly) |
  |
|
12-68615 - Washer, Shift Lever Screw, NLA [ More info ]
|
| #29 | 11-26484 | NUT, (.312-18), SHIFT LEVER STUD (1 required per assembly) |
  |
|
11-26484 - Nut (5/16-18) [ More info ]
|
  |
|
11-8M0204646 - NUT @5 [ More info ] Unavailable |
| #30 | 33317 | PLUNGER, SHIFT LEVER (1 required per assembly) |
  |
|
33317 - Plunger, NLA [ More info ]
|
| #31 | 17-79207 | PIN, PLUNGER TO SHIFT LEVER (1 required per assembly) |
  |
|
17-79207 - PIN,NLA [ More info ] Unavailable |
| #34 | 33261 | SOLENOID SWITCH ASSEMBLY (1 required per assembly) |
  |
|
|
  |
|
18-5838 - Solenoid 89902 [ More info ]
|
  |
|
18-5837 - Solenoid 89-99253, 38538 [ More info ]
|
