Parts for MerCruiser 4.3L Carburetor Alpha / Bravo Standard Cooling System

Revise Search: All Models > 4.3L Carburetor Alpha / Bravo > 0M615000 - 0W300012 > Standard Cooling System

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

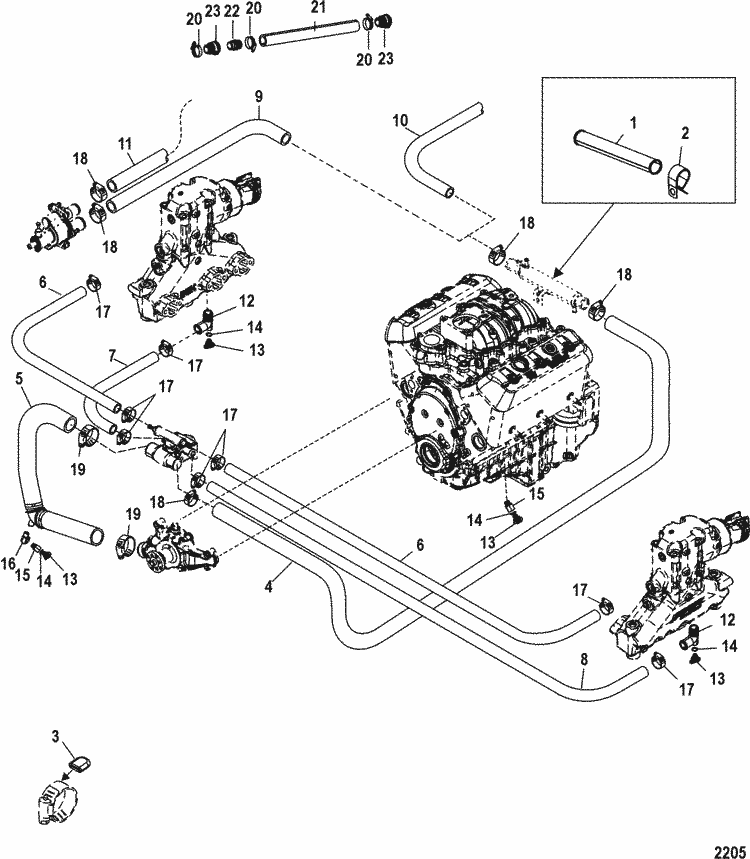

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	860315A 1	TUBE, Hose Extender (1 required per assembly) (Compact Hydralic Steering)(Cut to 10.5 Inch Length)
		860315A 1 - Tube - Hose Extender [ More info ] $41.49 Available to Order: Shipping delay up to 10 days.
#2	54-806616	CLAMP, Water Tube (1 required per assembly)
		54-806616 - Clamp [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#3	19-807992 3	COVER, Hose Clamp End (A/R required per assembly)
		19-807992 3 - Cover-.375 - Priced Individually [ More info ] $0.58 4 In Stock.
		198M0074364 [ More info ] Unavailable
		198M0074364 - Cover-Clamp - Priced Individually [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#4	32-865092	HOSE, Power Steering Cooler to Thermostat Housing (1 required per assembly)
		32-865092 - Hose - Power Steering Cooler To Thermostat Housing [ More info ] $70.05 1 In Stock.
#5	32-861590A05	HOSE ASSEMBLY, Circulating Pump to Thermostat Housing (1 required per assembly)
		32-861590A05 - Drain Hose Assembly [ More info ] $67.24 1 In Stock.
		18-71337 - Hose, 32-87108, 32-806825 [ More info ] $76.99 $59.97 2 In Stock.
#6	32-864977	HOSE, Thermostat Housing to Elbow (2 required per assembly)
		32-864977 - Hose - Elbow To Thermostat Housing [ More info ] Unavailable
#7	32-862124	HOSE, Thermostat Housing to Starboard Manifold (1 required per assembly)
		32-862124 - Molded Hose [ More info ] $64.49 Available to Order: Shipping delay up to 10 days.
#8	32-862139	HOSE, Thermostat Housing to Port Exhaust Manifold (1 required per assembly)
		32-862139 - Molded Hose [ More info ] $61.99 Available to Order: Shipping delay up to 10 days.
		18-70945 - Molded Hose [ More info ] $49.99 $48.88 1 In Stock.
#9	32-860205	HOSE, Oil Cooler to Sea Water Pump, Sea Pump To Power Steering Cooler (1 required per assembly) (Bravo)
		32-860205 - Water Hose [ More info ] $71.99 Available to Order: Shipping delay up to 10 days.
#10	32-807661	HOSE, Transom to Power Steering Cooler (1 required per assembly) (Alpha)
		32-807661 - Molded Hose [ More info ] $66.99 In Stock
#11	32-17435 79	HOSE, (96.00 Inches Bulk), Sea Water Pump to Drive (1 required per assembly) (Bravo)
		32-17435 79 - Hose-96 INCH [ More info ] Unavailable
		32-863343 79 - Hose-96 INCH [ More info ] Unavailable
		32-865672079 - Hose-96 Inch [ More info ] Unavailable
		32-8M0062666 - Water Hose Bulk -96" [ More info ] $220.99 $218.15 Available to Order: Shipping delay up to 10 days.
#12	22-862210A01	ELBOW KIT, Drain, Drain (2 required per assembly)
		22-862210A01 - Elbow Kit [ More info ] $29.09 In Stock
		18-4224 - Drain Elbow 22-806926A1 [ More info ] $11.15 10+ In Stock.
#13	22-806608A 1	PLUG KIT, (.500-13) Royal Blue, Drain Fitting (9 required per assembly)
		22-806608A 1 - Plug Kit, Priced Individually [ More info ] Unavailable
		22-806608A02 - Plug Assembly - Priced Individually [ More info ] $3.05 4 In Stock.
		22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ] $10.19 10+ In Stock.
		18-4226 - Blue Drain Plug, 22-806608A1 [ More info ] $4.10 10+ In Stock.
		22-806608Q01 - Plug - Priced Individually [ More info ] $10.29 1 In Stock.
#14	25-32509	O-RING, (.489 x .070) (9 required per assembly)
		25-32509 - O-ring, (.489 X .070) [ More info ] $2.39 10+ In Stock.
		18-7165-9 - O-Ring (PK5) , 0304174 [ More info ] $10.38 Available to Order: Shipping delay up to 10 days.
#15	22-860088	BUSHING (3 required per assembly)
		22-860088 - Bushing [ More info ] Unavailable
		22-8M0214973 - Cylinder Block Adaptor Bushing ZZ [ More info ] $12.79 8 In Stock.
#16	22-46982	FITTING, (90 Degree) (1 required per assembly)
		22-46982 - Fitting [ More info ] $28.51 10+ In Stock.
#17	54-815504216	CLAMP, Worm Gear (1.56 Diameter), Hose (4 required per assembly)
		54-815504216 - Clamp [ More info ] Unavailable
#18	54-815504222	CLAMP, Worm Gear (1.98 DIameter), Hose (11 required per assembly)
		54-815504222 - Clamp - See Note On Detail Page [ More info ] Unavailable
		54-8M0188622 - CLAMP [ More info ] Unavailable
#19	54-815504232	CLAMP, Worm Gear (2.50 Diameter), Hose (2 required per assembly)
		54-815504232 - Clamp [ More info ] $8.89 10+ In Stock.
#20	54-815504220	CLAMP, Worm Gear (3 required per assembly)
		54-815504220 - Clamp [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#21	32-865672013	HOSE, (4.00 Inches) (1 required per assembly)
		32-865672013 - Hose - 4 Inch [ More info ] Unavailable
		32-8M0062653 - Water Hose 4 IN [ More info ] $7.39 Available to Order: Shipping delay up to 10 days.
#22	22-865362	QUICK CONNECT (1 required per assembly)
		22-865362 - Spigot-q/C [ More info ] $9.69 Available to Order: Shipping delay up to 10 days.
#23	22-865324	QUICK CONNECT (2 required per assembly)
		22-865324 - Fitting -q/C [ More info ] $11.79 Available to Order: Shipping delay up to 10 days.
