Parts for MerCruiser 3.7LX (4 Barrel.) Mercury 224 I / L4 1988-1989 Front Mount
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 77877A 2 | BRACKET ASSEMBLY, Front Mount (1 required per assembly) |
  |
|
77877A 2 - Bracket, NLA [ More info ]
|
| #2 | 32833 | MOUNT, RUBBER (1 required per assembly) |
  |
|
|
| #3 | 23-35903 | SPACER, RUBBER MOUNT (1 required per assembly) |
  |
|
23-35903 - Spacer [ More info ]
|
| #4 | 16-56295 | STUD, (.437 x 2.69), MOUNTING BRACKET (3 required per assembly) |
  |
|
16-56295 - Stud - Priced Individually [ More info ]
|
| #5 | 12-34567 | WASHER, MOUNTING BRACKET STUD (3 required per assembly) |
  |
|
12-34567 - Washer (.453 X .875 X .12) Brace Slot [ More info ]
|
| #6 | 11-34933 | NUT, (.437-20) Stainless Steel, MOUNTING BRACKET STUD (3 required per assembly) |
  |
|
11-34933 - Nut (7/16-20) [ More info ]
|
  |
|
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|
11-00118 - Nut, Sold Individually [ More info ]
|
| #7 | 76839T | MOUNT, FRONT SUPPORT (1 required per assembly) |
  |
|
76839T - SUPPORT,NLA [ More info ] Unavailable |

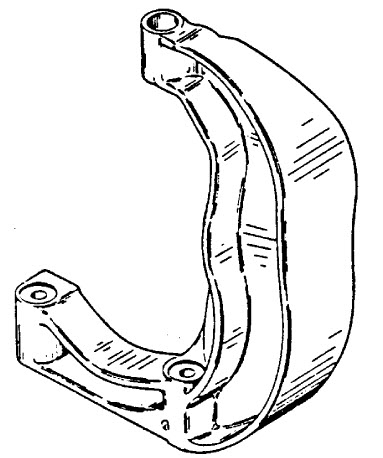

| #8 | 78814A 1 | SUPPORT, FRONT (22" CENTERS) (OPT. required per assembly) |
  |
|
78814A 1 - Mounting Assembly, NLA [ More info ] Unavailable |
| #9 | 78483A 1 | SUPPORT, FRONT (6" CENTERS) (OPT. required per assembly) |
  |
|
78483A 1 - Support Assembly, NLA [ More info ] Unavailable |
| #10 | 11-32882 | NUT, (.875-14), FRONT SUPPORT MOUNTING TO ADJUSTING STUD (1 required per assembly) |
  |
|
11-32882 - Nut, (.875-14) [ More info ]
|
| #11 | 11-47525 | NUT, (.875-14), Bottom - FRONT SUPPORT MOUNTING TO ADJUSTING STUD (1 required per assembly) |
  |
|
11-47525 - Nut (.875-14) [ More info ]
|
| #13 | 16-36100T | STUD, ADJUSTING (1 required per assembly) |
  |
|
16-36100T - Stud [ More info ]
|
| #14 | 12-36103 | WASHER, (Steel, 1.75 Inch Outside Diameter), STEEL - UPPER AND LOWER (2 required per assembly) |
  |
|
12-36103 - Washer, (steel, 1.75 Inch Outside Diameter) [ More info ]
|
| #15 | 12-32638 | WASHER, Rubber, ADJUSTING STUD (1 required per assembly) |
  |
|
12-32638 - Washer - Priced Individually [ More info ]
|
| #16 | 12-30119 | WASHER, (.875 Inch Outside Diameter), SPACER - ADJUSTING STUD (1 required per assembly) |
  |
|
12-30119 - Washer (7/8 X .1196) [ More info ]
|
| #17 | 23-32756 | SPACER, ADJUSTING STUD (1 required per assembly) |
  |
|
23-32756 - Spacer - Adjusting Stud [ More info ]
|
| #18 | 12-36104 | WASHER, Rubber, ADJUSTING STUD (1 required per assembly) |
  |
|
12-36104 - Washer - Priced Individually [ More info ]
|
| #19 | 11-20220 | NUT, (.500-20), ADJUSTING STUD (1 required per assembly) |
  |
|
11-20220 - Nut (1/2-20) [ More info ]
|
  |
|
11-826713 17 - Nut, (.500-20) [ More info ]
|
