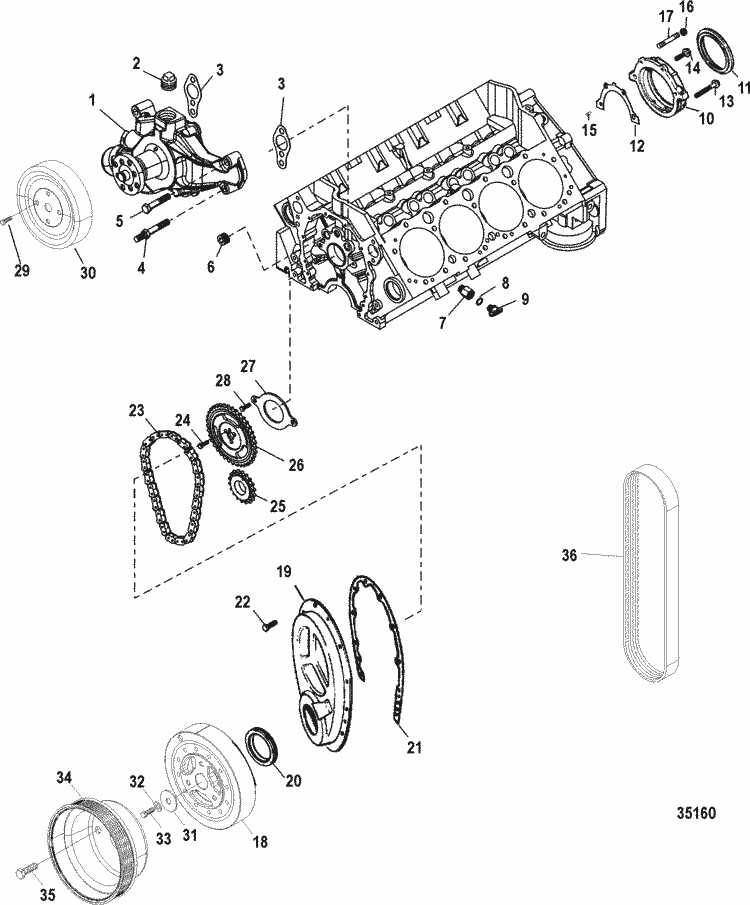

Parts for MerCruiser 357 Alpha 4V Front Cover & Circulating Pump
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 850399 1 | PUMP ASSEMBLY, Water (1 required per assembly) |
  |
850399 1 - Water Pump Assembly [ More info ] Unavailable |
|
  |
|
46-8M0113734 - Water Pump Assembly [ More info ]
|
  |
|
18-3599-2 - Circulating Water Pump, Small Block Chevy [ More info ]
|
  |
|
95-03599 - Water Circulating Pump, 3853850 [ More info ]
|
| #2 | 22-49146 | PLUG (1 required per assembly) |
  |
|
22-49146 - PLUG,NLA [ More info ] Unavailable |
| #3 | 27-34897 | GASKET (2 required per assembly) |
  |
|
27-34897 - Water Pump Gasket [ More info ]
|
  |
|
18-0891-9 - Gasket 27-34897 2-Pack [ More info ]
|
| #4 | 16-35342 | STUD, (.312-24/.375-16 x 2.5625) (2 required per assembly) |
  |
16-35342 - Stud [ More info ] Unavailable |
|
  |
|
16-8M0076418 - Stud [ More info ]
|
| #5 | 10-32132 | SCREW, (.375-16 x 1.750) (2 required per assembly) |
  |
|
10-32132 - Screw [ More info ]
|
| #6 | 19-816565 | PLUG, Pipe(.468) (1 required per assembly) |
  |
|
19-816565 - Plug [ More info ]
|
| #7 | 22-860088 | BUSHING (1 required per assembly) |
  |
22-860088 - Bushing [ More info ] Unavailable |
|
  |
|
22-8M0214973 - Cylinder Block Adaptor Bushing ZZ [ More info ]
|
| #8 | 22-806608A02 | PLUG ASSEMBLY, (.500-13) Blue (2 required per assembly) |
  |
|
22-806608A02 - Plug Assembly - Priced Individually [ More info ]
|
  |
|
22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ]
|
  |
|
18-4226 - Blue Drain Plug, 22-806608A1 [ More info ]
|
  |
|
22-806608Q01 - Plug - Priced Individually [ More info ]
|
| #9 | 25-8M2000926 | SEAL (2 required per assembly) |
  |
|
25-8M2000926 - Seal - Priced Individually [ More info ]
|
  |
|
25-26802 - O-ring, (.424 X .103) [ More info ]
|
| #10 | 14239 | RETAINER (1 required per assembly) |
  |
|
14239 - Retainer [ More info ]
|
| #11 | 26-14240 | SEAL, Oil (1 required per assembly) |
  |
|
26-14240 - Seal [ More info ] Unavailable |
  |
|
18-0519 - Seal, 26-14240 [ More info ]
|
| #12 | 27-881715 | GASKET (1 required per assembly) |
  |
|
27-881715 - Cylinder Block Gasket [ More info ]
|
| #13 | 10-14243 | BOLT, (.250-20 x 1.750) (1 required per assembly) |
  |
10-14243 - BOLT [ More info ] Unavailable |
|
  |
|
10-8M0064241 - Bolt [ More info ]
|
| #14 | 10-14242 | BOLT, (.250-20 x .875) (2 required per assembly) |
  |
|
10-14242 - Bolt, NLA [ More info ]
|
| #15 | 17-14263 | PIN, Dowel (1 required per assembly) |
  |
|
17-14263 - Pin -Dowel, NLA [ More info ]
|
| #16 | 11-816730 1 | NUT (1 required per assembly) |
  |
11-816730 1 - Nut [ More info ] Unavailable |
|
  |
|
11-8M0098315 - Nut [ More info ]
|
| #17 | 16-14827 | STUD, (.250-20 x 2.180) (1 required per assembly) |
  |
|
|
| #18 | 852946001 | BALANCER, Harmonic (1 required per assembly) |
  |
|
852946001 - Balancer [ More info ] Unavailable |
| #19 | 14249A 2 | COVER (1 required per assembly) |
  |
|
14249A 2 - Timing Cover Assembly V-6&V-8 [ More info ]
|
| #20 | 26-97335 | SEAL (1 required per assembly) |
  |
|
|
  |
|
18-1213 - Timing Cover Seal, 26-97335, 3853341 [ More info ]
|
| #21 | 27-14250 | GASKET (1 required per assembly) |
  |
|
27-14250 - Cover Gasket [ More info ]
|
| #22 | 10-35366 | SCREW, (.250-20 x .563) (1 required per assembly) |
  |
|
10-35366 - Screw - Priced Individually [ More info ]
|
  |
|
10-8M0040582 - Dipstick Tube MT Screw - Priced Individually [ More info ]
|
| #23 | 17161T | CHAIN (1 required per assembly) |
  |
17161T - Timing Chain [ More info ] Unavailable |
|
  |
|
8M0187687 - CHAIN [ More info ] Unavailable |
| #24 | 10-845942 | SCREW, (.312-18 x .750) (3 required per assembly) |
  |
10-845942 - Screw [ More info ] Unavailable |
|
  |
|
10-8M0043993 - Screw [ More info ]
|
| #25 | 43-17160 | SPROCKET (1 required per assembly) |
  |
43-17160 - Sprocket [ More info ] Unavailable |
|
  |
|
43-8M0184208 - SPROCKET [ More info ] Unavailable |
| #26 | 43-811659 1 | SPROCKET (1 required per assembly) |
  |
|
43-811659 1 - Timing Sprocket [ More info ]
|
| #27 | 845941 | RETAINER (1 required per assembly) |
  |
|
845941 - Retainer [ More info ]
|
| #28 | 10-845943 | SCREW, (.250-20 x .500) (2 required per assembly) |
  |
|
10-845943 - Screw [ More info ]
|
| #29 | 10-47277 | SCREW, (.312-24 x .750) (4 required per assembly) |
  |
|
10-47277 - Screw - Priced Individually [ More info ]
|
| #30 | 807729T | PULLEY (1 required per assembly) |
  |
807729T - Water Pump Pulley [ More info ] Unavailable |
|
  |
|
8M0153706 - Water Pump Pulley [ More info ]
|
| #31 | 12-71458 | WASHER (1 required per assembly) |
  |
|
12-71458 - Washer [ More info ]
|
| #32 | 13-39131 | LOCKWASHER, (.437) (1 required per assembly) |
  |
|
13-39131 - LockWasher [ More info ]
|
| #33 | 10-32515 | SCREW, (.437-20 x 2.50) (1 required per assembly) |
  |
|
10-32515 - Screw - Priced Individually [ More info ]
|
  |
|
10-8M2021674 - Screw [ More info ]
|
| #34 | 807730T | PULLEY (1 required per assembly) |
  |
|
807730T - CrankShaft Pulley [ More info ]
|
| #35 | 10-34352 | SCREW, (.375-24 x .875) (3 required per assembly) |
  |
|
10-34352 - Screw - Priced Individually [ More info ]
|
| #36 | 57-861757Q | BELT, Serpentine (1 required per assembly) 357 Bravo / 350 |
  |
|
57-861757Q - Belt [ More info ]
|
| #36 | 57-861758Q | BELT, Serpentine (1 required per assembly) 357 Alpha |
  |
|
57-861758Q - Belt [ More info ]
|
