Parts for MerCruiser 350 Mag. Alpha (4 Barrel.) GM 350 V-8 1997 Shift Bracket (Alpha Engines)

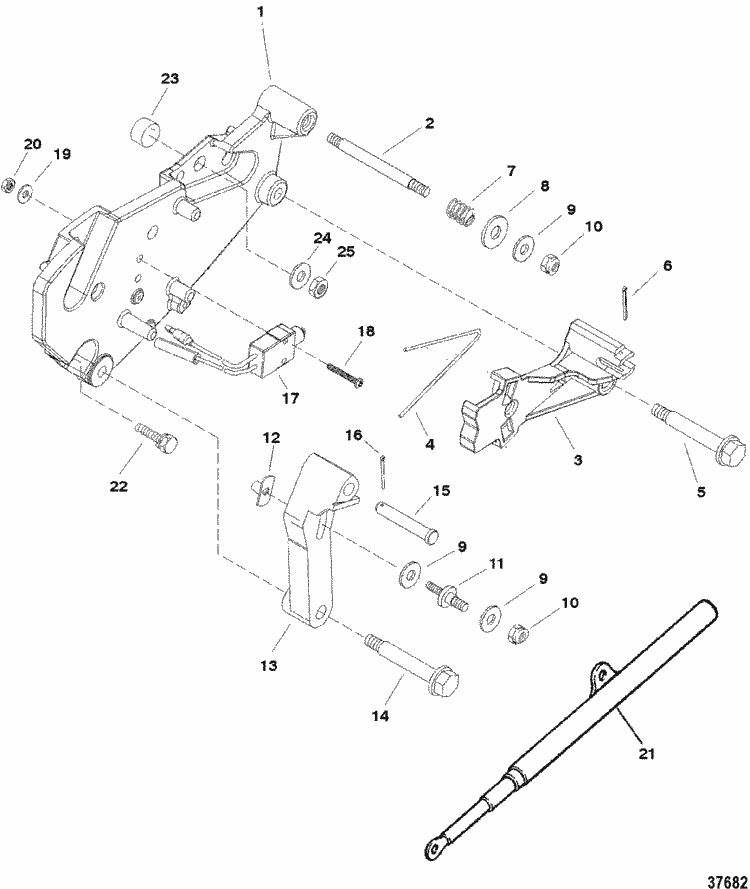

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 807962A 3 | BRACKET ASSEMBLY, Shift (1 required per assembly) |
  |
807962A 3 - Shift Bracket [ More info ] Unavailable |
|
  |
807962A10 - PLATE KIT-SHIFT [ More info ] Unavailable |
|
  |
807962A14 - PLATE KIT-SHIFT [ More info ] Unavailable |
|
  |
|
807962A15 - Shift Plate Kit [ More info ]
|
| #2 | 16-814002 1 | STUD, (.250 x 2.870) (1 required per assembly) |
  |
|
16-814002 1 - Stud [ More info ]
|
  |
16-865149A01 - STUD [ More info ] Unavailable |
|
  |
|
865149A02 - Stud [ More info ]
|
| #3 | 13051A 8 | LEVER ASSEMBLY, Actuating (1 required per assembly) |
  |
13051A 8 - Arm Kit [ More info ] Unavailable |
|
  |
865433A01 - ARM ASSY-Switch [ More info ] Unavailable |
|
  |
|
865433A02 - Arm Assembly - Switch [ More info ]
|
| #4 | 24-45599 | SPRING (1 required per assembly) |
  |
|
24-45599 - Spring, Actuating Lever [ More info ]
|
  |
24-45599 1 - Spring [ More info ] Unavailable |
|
  |
|
24-862850 - Spring [ More info ]
|
| #5 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder (1 required per assembly) |
  |
|
10-13743 - Screw [ More info ]
|
  |
10-865148 - Screw [ More info ] Unavailable |
|
  |
|
108M0207774 - SCREW [ More info ]
|
| #6 | 18-32857 | COTTER PIN (1 required per assembly) |
  |
|
18-32857 - Cotter Pin , Priced Individually [ More info ]
|
  |
|
18-32857 1 - Cotter Pin [ More info ]
|
  |
|
18-8M0214922 - PIN-COTTER [ More info ] Unavailable |
| #7 | 24-98880 | SPRING (1 required per assembly) |
  |
|
24-98880 - Spring-shift Cable Stud [ More info ]
|
  |
|
248M0207784 - SPRING [ More info ]
|
| #8 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel (1 required per assembly) |
  |
|
12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ]
|
| #10 | 11-13438 | NUT, (.250-28) (2 required per assembly) |
  |
11-13438 - Nut (1/4-28) [ More info ] Unavailable |
|
  |
|
11-826711 9 - Nut [ More info ]
|
| #11 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor (1 required per assembly) |
  |
16-96112 - Stud [ More info ] Unavailable |
|
  |
|
16-8M0113178 - Stud [ More info ]
|
| #12 | 11-63341 | TEE NUT (1 required per assembly) |
  |
|
11-63341 - Nut -tee [ More info ]
|
| #13 | 13898A 3 | LEVER ASSEMBLY, Shift (1 required per assembly) |
  |
13898A 3 - Lever Assembly [ More info ] Unavailable |
|
  |
|
13898T06 - Shift Lever Assembly [ More info ]
|
| #15 | 17-814001 | PIN, Clevis (1 required per assembly) |
  |
|
17-814001 - Clevis Pin [ More info ] Unavailable |
| #16 | 18-21071 | COTTER PIN (1 required per assembly) |
  |
18-21071 - Cotter Pin - Priced Individually [ More info ] Unavailable |
|
  |
|
18-21071 1 - Cotter Pin - Priced Individually [ More info ]
|
| #17 | 87-814281A 5 | SWITCH ASSEMBLY (1 required per assembly) |
  |
|
87-814281A 5 - Switch Assembly [ More info ]
|
| #18 | 10-860077 | SCREW, (#6-32 x 1.00) (2 required per assembly) |
  |
|
10-860077 - Screw [ More info ]
|
| #19 | 12-11303 | WASHER (2 required per assembly) |
  |
|
12-11303 - Washer - Priced Individually [ More info ]
|
| #20 | 11-F1669 | NUT, (#6-32) (2 required per assembly) |
  |
|
11-F1669 - Nut (#6-32) [ More info ]
|
  |
|
11-8M0207777 - NUT-SS [ More info ] Unavailable |
| #21 | 813995A 1 | GUIDE ASSEMBLY, Spring (1 required per assembly) |
  |
|
813995A 1 - Spring,Guide Assembly [ More info ]
|
| #22 | 10-65746 1 | SCREW AND LOCKWASHER, (.250-20 x .625) (3 required per assembly) USE WITH CAST IRON ELBOWS |
  |
|
10-65746 1 - Screw [ More info ]
|
| #23 | 23-806981 | SPACER (3 required per assembly) USE WITH STAINLESS STEEL ELBOWS |
  |
|
23-806981 - Spacer [ More info ]
|
| #24 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel (3 required per assembly) USE WITH STAINLESS STEEL ELBOWS |
  |
|
12-35462 - Washer, (.2656 X .625 X .0625) Stainless Steel [ More info ]
|
| #25 | 11-64015 | NUT, (.250-20) (3 required per assembly) USE WITH STAINLESS STEEL ELBOWS |
  |
|
11-64015 - Nut (1 /4-20) [ More info ]
|
