Parts for MerCruiser 2.5L GM 153 I / L4 1987-1989 Shift Components (New Design With Spring Guide)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #2 | 16-814002 | STUD, SHIFT CABLE (1 required per assembly) |
  |
|
16-814002 - Stud [ More info ]
|
  |
|
16-814002 1 - Stud [ More info ]
|
  |
16-865149A01 - STUD [ More info ] Unavailable |
|
  |
|
865149A02 - Stud [ More info ]
|
| #3 | -13051A 4 | LEVER ASSEMBLY, ACTUAITNG (1 required per assembly) |
  |
|
13051A 4 - Actuating Lever [ More info ] Unavailable |

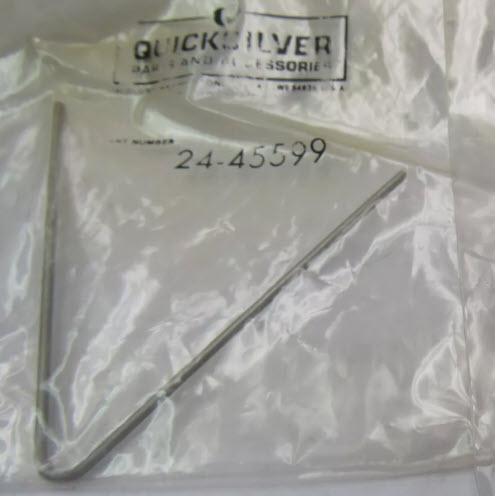

| #4 | 24-45599 | SPRING, ACTUATING LEVER (1 required per assembly) |
  |
|
24-45599 - Spring, Actuating Lever [ More info ]
|
  |
24-45599 1 - Spring [ More info ] Unavailable |
|
  |
|
24-862850 - Spring [ More info ]
|
| #5 | 10-13743 | SHOULDER SCREW, LEVER (1 required per assembly) |
  |
|
10-13743 - Screw [ More info ]
|
  |
10-865148 - Screw [ More info ] Unavailable |
|
  |
|
108M0207774 - SCREW [ More info ]
|
| #6 | 18-32857 | COTTER PIN, SHIFT CABLE RETAINING (1 required per assembly) |
  |
|
18-32857 - Cotter Pin , Priced Individually [ More info ]
|
  |
|
18-32857 1 - Cotter Pin [ More info ]
|
  |
|
18-8M0214922 - PIN-COTTER [ More info ] Unavailable |
| #7 | 24-98880 | SPRING, SHIFT CABLE STUD (1 required per assembly) |
  |
|
24-98880 - Spring-shift Cable Stud [ More info ]
|
  |
|
248M0207784 - SPRING [ More info ]
|
| #8 | 12-56720 | WASHER, SHIFT BRACKET STUD (1 required per assembly) |
  |
|
12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ]
|
| #9 | 23-814003 | SPACER, SHIFT CABLE STUD (1 required per assembly) |
  |
|
23-814003 - Spacer, 16-814002-1,NLA [ More info ] Unavailable |
| #10 | 12-35462 | WASHER, SHIFT CABLE STUD (3 required per assembly) |
  |
|
12-35462 - Washer, (.2656 X .625 X .0625) Stainless Steel [ More info ]
|
| #11 | 11-13438 | NUT, SHIFT CABLE STUD (2 required per assembly) |
  |
11-13438 - Nut (1/4-28) [ More info ] Unavailable |
|
  |
|
11-826711 9 - Nut [ More info ]
|
| #12 | 16-96112 | STUD, SHIFT CABLE (1 required per assembly) |
  |
16-96112 - Stud [ More info ] Unavailable |
|
  |
|
16-8M0113178 - Stud [ More info ]
|
| #13 | 11-63341 | TEE NUT, HSIFT CABLE STUD (1 required per assembly) |
  |
|
11-63341 - Nut -tee [ More info ]
|
| #14 | -13898A 3 | SHIFT LEVER ASSEMBLY (1 required per assembly) |
  |
13898A 3 - Lever Assembly [ More info ] Unavailable |
|
  |
|
13898T06 - Shift Lever Assembly [ More info ]
|
| #16 | 17-814001 | SHOULDER PIN, SHIFT LEVER (1 required per assembly) |
  |
|
17-814001 - Clevis Pin [ More info ] Unavailable |
| #17 | 18-21071 | COTTER PIN, SHIFT LEVER (1 required per assembly) |
  |
18-21071 - Cotter Pin - Priced Individually [ More info ] Unavailable |
|
  |
|
18-21071 1 - Cotter Pin - Priced Individually [ More info ]
|
| #18 | -39670A28 | SWITCH ASSEMBLY, CUT-OUT (1 required per assembly) |
  |
|
39670A28 - Switch, See Bulletin 2002-1 [ More info ] Unavailable |
| #19 | 10-30902 | SCREW, SWITCH TO SHIFT BRACKET (2 required per assembly) |
  |
|
10-30902 - Screw - Priced Individually [ More info ]
|
| #20 | 86-66986 | TERMINAL BLOCK (1 required per assembly) |
  |
|
86-66986 - Terminal Block, NLA [ More info ] Unavailable |
| #21 | 10-96113 | SCREW, TERMINAL BLOCK (7/8") (1 required per assembly) |
  |
|
10-96113 - Screw [ More info ]
|
| #22 | 10-73287 | SCREW, TERMINAL BLOCK (3/8") (1 required per assembly) |
  |
|
10-73287 - Screw - Priced Individually [ More info ]
|
| #23 | 13-26996 | LOCKWASHER, TERMINAL BLOCK SCREW (2 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #24 | -813995A 1 | SPRING GUIDE ASSEMBLY (1 required per assembly) |
  |
|
813995A 1 - Spring,Guide Assembly [ More info ]
|
