Parts for MerCruiser 230 (4 Barrel.) GM 305 V-8 1987 Driveshaft Extension Components (Jackshaft Models)

Revise Search: All Models > 230 (4 Barrel.) GM 305 V-8 1987 > 0B525982 - 0B773739 > Driveshaft Extension Components (Jackshaft Models)

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

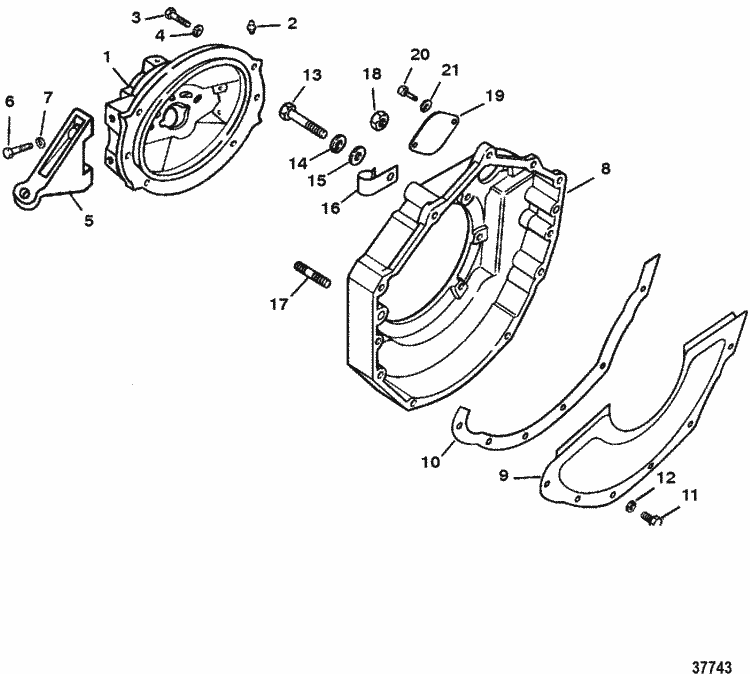

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	93911A 4	HOUSING ASSEMBLY, Shaft Extension Support (1 required per assembly)
		93911A 4 - Housing Assembly [ More info ] $985.99 Available to Order: Shipping delay up to 10 days.
#2	22-74036	FITTING, Grease (1 required per assembly)
		22-74036 - Fitting - Priced Individually [ More info ] Unavailable
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#3	10-47651	SCREW, (.437-14 x 1.50) (6 required per assembly)
		10-47651 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#4	13-32993	LOCKWASHER, (.437) (6 required per assembly)
		13-32993 - LockWasher - Priced Individually [ More info ] $1.70 9 In Stock.
#5	93923A 1	MOUNT ASSEMBLY (2 required per assembly)
		93923A 1 - Mount Assembly [ More info ] $157.99 Available to Order: Shipping delay up to 10 days.
#8	814309A 1	HOUSING ASSEMBLY (1 required per assembly)
		814309A 1 - Flywheel Housing Assembly [ More info ] $533.99 Available to Order: Shipping delay up to 10 days.
		MC-24-44187 - Bellhousing [ More info ] $473.00 $362.70 Available to Order: Shipping delay up to 10 days.
#9	818718A 3	COVER KIT (1 required per assembly)
		818718A 3 - Cover Assembly [ More info ] $70.99 Available to Order: Shipping delay up to 10 days.
		MC-24-14043 - Flywheel Housing Dust Cover [ More info ] $52.00 $39.87 Available to Order: Shipping delay up to 10 days.
#10	27-86015	GASKET (1 required per assembly)
		27-86015 - Flywheel Housing Cover Gasket [ More info ] $11.49 Available to Order: Shipping delay up to 10 days.
#11	10-98253	SCREW, (.250-20 x .500) (7 required per assembly)
		10-98253 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#12	13-26992	LOCKWASHER, (.250) Stainless Steel (7 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#13	10-37612	SCREW, (.375-16 x 1.250) (2 required per assembly)
		10-37612 - Screw - Priced Individually [ More info ] $2.49 3 In Stock.
#13	10-47688	SCREW, (.375-16 x 2.750) (2 required per assembly)
		10-47688 - Screw [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#14	13-35048	LOCKWASHER, (.375) (6 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#15	12-20572	WASHER, (.390 x .750 x .093) (FOR SLOT) (1 required per assembly)
		12-20572 - Washer, (.390 X .750 X .093) [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#16	54-92850	CLAMP (1 required per assembly)
		54-92850 - J Clip [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#17	16-64066	STUD, (.375-16 x 2.750) Special (1 required per assembly)
		16-64066 - Stud [ More info ] $6.23 10 In Stock.
		16-861316 - Stud [ More info ] $15.09 Available to Order: Shipping delay up to 10 days.
#18	11-32219	NUT, (.375-16) (1 required per assembly)
		11-32219 - Nut (3/8-16) [ More info ] $2.79 10+ In Stock.
#19	93920 1	PLATE (1 required per assembly)
		93920 1 - Plate - Cover [ More info ] $53.99 Available to Order: Shipping delay up to 10 days.
#20	10-92913	SCREW, (.437-14 x .750) (2 required per assembly)
		10-92913 - Screw [ More info ] $15.49 $12.40 3 In Stock.
