Parts for MerCruiser 160 1967-1969 Gear Housing Assembly, Complete
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 1623-3646A 3 | GEAR HOUSING ASSEMBLY, COMPLETE (PLASTIC WATER PUMP ) (1 required per assembly) SEE NOTE BELOW |
  |
1623-3646A 3 - Gear Housing Assembly [ More info ] Unavailable |
|
  |
|
1623-4110A 5 - Gear Housing, NLA [ More info ] Unavailable |
| # | 1623-2764A 3 | GEAR HOUSING ASSEMBLY, COMPLETE (ALUMINUM WATER PUMP ) (1 required per assembly) SEE NOTE BELOW |
  |
1623-2764A 3 - Gear Housing Assembly [ More info ] Unavailable |
|
  |
1623-3489A 3 - Gear Housing [ More info ] Unavailable |
|
| #1 | 1623-2764A 1 | GEAR HOUSING ASSEMBLY (ALUMINUM) (1 required per assembly) |
  |
|
1623-2764A 1 - Gear Housing,BASIC,NLA [ More info ] Unavailable |
| #1 | 1623-3489A 1 | GEAR HOUSING ASSEMBLY (PLASTIC) - USES B-31-36387A1 BEARING (1 required per assembly) SEE REF #19 |
  |
1623-3489A 1 - Gear Housing Assembly [ More info ] Unavailable |
|
  |
1623-3646A 4 - Gear Housing [ More info ] Unavailable |
|
  |
1623-4110A 3 - Gear Housing Assembly [ More info ] Unavailable |
|
  |
|
1623-5356A 4 - Gear Housing Assembly [ More info ]
|
| #1 | 1623-3646A 1 | GEAR HOUSING ASSEMBLY(PLASTIC) - USES B-31-53079A1 BEARING (1 required per assembly) SEE REF #19 |
  |
1623-3646A 1 - Gear Housing Assembly [ More info ] Unavailable |
|
| #2 | 17-37972 | PIN, SHIFT CRANK - GEAR HOUSING (1 required per assembly) |
  |
|
17-37972 - Pin, Shaft Crank - Gear Housing [ More info ]
|
  |
|
17-37972 1 - Pin [ More info ]
|
| #3 | 16-46911 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 3/16 ) (1 required per assembly) |
  |
|
|
| #4 | 16-46909 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 ) (2 required per assembly) |
  |
16-46909 - Stud [ More info ] Unavailable |
|
  |
|
|
| #5 | 26-45577 | SEAL, GEAR HOUSING (1 required per assembly) |
  |
26-45577 - Seal - Priced Individually [ More info ] Unavailable |
|
  |
26-45577 1 - Seal - Priced Individually [ More info ] Unavailable |
|
  |
|
26-8M0204680 - QUAD RING SEAL, ORANGE, Priced Individually [ More info ]
|
| #6 | 16-36292 | STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8 ) (1 required per assembly) |
  |
16-36292 - Stud [ More info ] Unavailable |
|
  |
|
|
  |
16-56297 2 - Stud [ More info ] Unavailable |
|
  |
|
16-8M0034463 - Stud [ More info ]
|
| #7 | 16-30667 | STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8) (2 required per assembly) |
  |
16-30667 - Stud [ More info ] Unavailable |
|
  |
|
|
| #8 | 17-46912 | PIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSING (2 required per assembly) |
  |
|
17-46912 - Pin -Dowel [ More info ]
|
  |
|
17-85500 - Pin, Dowel (.187 X .530) [ More info ]
|
  |
|
178M0084726 - Pin - Dowel [ More info ]
|

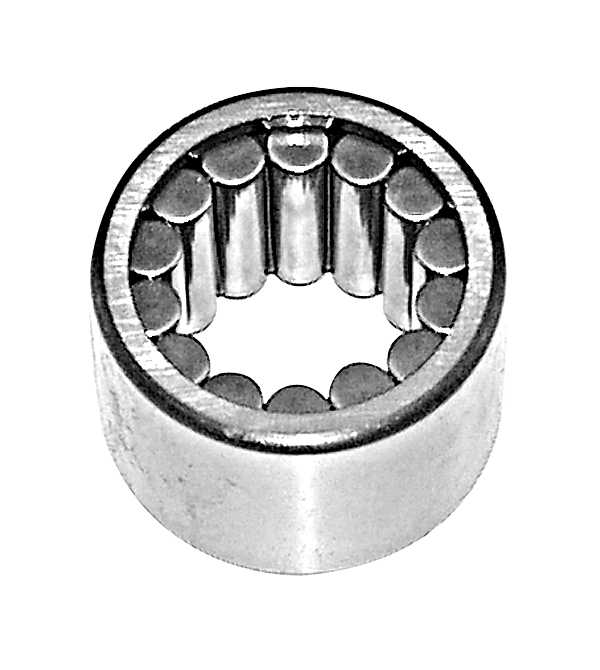

| #9 | 31-35934 | BEARING, ROLLER DRIVE SHAFT (1 required per assembly) |
  |
31-35934 - Roller Bearing [ More info ] Unavailable |
|
  |
|
31-35934A 1 - Roller Bearing [ More info ]
|
| #10 | 39235 | SLEEVE, THREADED - GEAR HOUSING (1 required per assembly) EARLY MODELS ONLY |
  |
|
|
  |
79270 - Sleeve [ More info ] Unavailable |
|
  |
|
23-98621 - Sleeve [ More info ]
|
| #11 | 19-38148 | WELCH PLUG, GEAR HOUSING (1 required per assembly) EARLY MODELS ONLY |
  |
|
19-38148 - Plug, NLA [ More info ] Unavailable |
| #12 | 45-36386A 1 | DRIVE SHAFT ASSEMBLY (1 required per assembly) |
  |
|
45-36386A 1 - Drive Shaft Assembly, NLA [ More info ]
|
| #13 | 17-30545 | PIN, DRIVE SHAFT (1 required per assembly) |
  |
|
17-30545 - Pin - Priced Individually [ More info ]
|
| #14 | 24-34576 | SPRING, COMPRESSION - DRIVE SHAFT (1 required per assembly) |
  |
|
24-34576 - Spring, Compression - Drive Shaft,NLA [ More info ]
|
| #15 | 25-30613 | "O" RING, UPPER - DRIVE SHAFT (1 required per assembly) |
  |
25-30613 - O-ring, Upper Drive Shaft [ More info ] Unavailable |
|
  |
|
25-8M0214919 - O RING @5 [ More info ] Unavailable |
| #16 | 43-35922 | GEAR, PINION - DRIVE SHAFT (1 required per assembly) |
  |
43-35922 - Gear, Pinion - Drive Shaft [ More info ] Unavailable |
|
  |
43-55812 - Gear, Pinion - Drive Shaft [ More info ] Unavailable |
|
  |
|
43-55812T - Pinion Gear [ More info ]
|
| #17 | 11-35921 | NUT, PINION - GEAR TO DRIVE SHAFT (1 required per assembly) |
  |
|
11-35921 - Nut, (.625-18) [ More info ]
|
  |
|
18-3719 - Nut, 11-35921, 314730 [ More info ]
|
  |
|
18-2359 - Nut Kit [ More info ]
|
| #18 | 15-33143A 1 | SHIM, DRIVE SHAFT BEARING TO GEAR HOUSING (.002-3-5-10 ) (AR required per assembly) |
  |
15-33143A 1 - Shim Assembly [ More info ] Unavailable |
|
  |
|
15-57007A 1 - Shim Set [ More info ]
|
| #19 | 31-36387A 1 | TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT (1 required per assembly) IDENTIFICATION: STAMPED #M84510 ON CUP) |
  |
|
31-36387A 1 - New # 318M0146566 [ More info ] Unavailable |
  |
|
31-02194 - Bearing Kit 31-36387A 1 [ More info ]
|
| #19 | 31-53079A 1 | TAPERED ROLLER BEARING ASSEMBLY, DIRVE SHAFT (1 required per assembly) IDENTIFICATION: STAMPED #M15520 ON CUP) |
  |
|
31-53079A 1 - Tapered Roller Bearing - Dirve Shaft [ More info ]
|
| #20 | 27-33146 | GASKET, WATER PUMP BASE TO GEAR HOUSING (1 required per assembly) |
  |
27-33146 - Water Pump Base Gasket [ More info ] Unavailable |
|
  |
|
27-85610 - Water Pump To Gear Housing Gasket [ More info ]
|
  |
|
27-85610 1 - Gasket - Priced Individually [ More info ]
|
  |
|
27-856704 - Water Pump To Gear Housing Gasket [ More info ]
|
  |
|
27-8M0214962 - GASKET @5 [ More info ] Unavailable |
| #21 | 25-33145 | "O"RING, WATER PUMP BASE (1 required per assembly) |
  |
25-33145 - O-ring, (1.984 X .139) [ More info ] Unavailable |
|
  |
|
25-8M0214923 - O RING, sold individually [ More info ]
|
  |
|
18-7162-9 - (PK5) O-Ring 25-33145 [ More info ]
|
| #22 | 46-34447A 1 | WATER PUMP BASE ASEMBLY (ALUMINUM ) (1 required per assembly) |
  |
|
46-34447A 1 - Base Assembly [ More info ]
|
  |
|
46-48762A 4 - Base Assembly [ More info ]
|
| #22 | 46-48748A 1 | WATER PUMP BASE ASSEMBLY (PLASTIC) (1 required per assembly) |
  |
|
46-48748A 1 - Water Pump Base [ More info ]
|
| #23 | 26-33144 | OIL SEAL, WATER PUMP BASE (1 required per assembly) |
  |
|
26-33144 - Oil Seal , Priced Individually [ More info ]
|
  |
|
|
  |
|
18-2014 - Seal 26-89238, 26F69430 [ More info ]
|
  |
|
26-00171 - Seal 26-89238, 26F694305 [ More info ]
|
| #24 | 26-31507 | OIL SEAL, WATER PUMP BASE (1 required per assembly) |
  |
26-31507 - OIL Seal , Priced Individually [ More info ] Unavailable |
|
  |
26-79884 - Oil Seal [ More info ] Unavailable |
|
  |
|
|
  |
|
18-2026 - Seal, 321453 [ More info ]
|
  |
|
18-2013 - Seal, 26-16977 [ More info ]
|
| #25 | 17-35973 | DOWEL PIN, WATER PUMP BASE WATER PUMP BODY (2 required per assembly) |
  |
|
17-35973 - Pin -Dowel - Priced Individually [ More info ]
|
| #26 | 27-32433 | GASKET, LOWER - WATER PUMP BASE TO FACE PLACTE (1 required per assembly) |
  |
27-32433 - Lower Water Pump Gasket [ More info ] Unavailable |
|
  |
|
27-85608 - Water Pump Gasket [ More info ]
|
  |
|
27-85608 1 - Gasket - Priced Individually [ More info ]
|
  |
|
27-8M0090319 - Water Pump Gasket - Priced Individually [ More info ]
|
  |
|
18-2914-9 - Gasket 27-85608 2-Pack [ More info ]
|
| #27 | 32435 | PLATE, FACE -WATER PUMP BASE TO WATER PUMP BODY (1 required per assembly) |
  |
32435 - Face Plate - Priced Individually [ More info ] Unavailable |
|
  |
32435 1 - Face Plate [ More info ] Unavailable |
|
  |
|
8M0204677 - Wear Plate [ More info ]
|
| #28 | 27-32434 | GASKET, UPPER - FACE PLATE TO WATER PUMP BODY (1 required per assembly) |
  |
27-32434 - Upper Water Pump Gasket [ More info ] Unavailable |
|
  |
27-85609 - Water Pump Gasket [ More info ] Unavailable |
|
  |
27-85609 1 - Gasket , Priced Individually [ More info ] Unavailable |
|
  |
|
27-858524 - Water Pump Base Gasket [ More info ]
|
  |
|
18-2915-9 - Gasket 27-858524 2-Pack [ More info ]
|
| #29 | 46-37433A 1 | WATER PUMP BODY ASSEMBLY (ALUMINUM) (1 required per assembly) |
  |
46-37433A 1 - BODY ASSY [ More info ] Unavailable |
|
  |
|
46-60367A 1 - Body Assembly [ More info ] Unavailable |
  |
|
18-3517 - Water Pump Kit, No Base, 46-96148A8 [ More info ]
|
| #29 | 46-48743A 1 | WATER PUMP BODY ASSEMBLY (PLASTIC) (1 required per assembly) |
  |
46-48743A 1 - BODY ASSY [ More info ] Unavailable |
|
  |
46-64141A 1 - Water Pump Body [ More info ] Unavailable |
|
  |
46-96148A 1 - Water Pump Body Assembly [ More info ] Unavailable |
|
  |
|
46-96148T 1 - Water Pump Body [ More info ]
|
  |
|
18-3116 - Housing 46-96148A1 [ More info ]
|
| #30 | 30915 | INSERT, WATER PUMP BODY (ALUMINUM) (1 required per assembly) |
  |
|
|
| #30 | 48752 | INSERT, WATER PUMP BODY (PLASTIC) (1 required per assembly) |
  |
|
48752 - Water Pump Insert, Priced Individually [ More info ]
|
  |
|
48752T - Water Pump Insert - Priced Individually [ More info ]
|
  |
|
18-3114 - SS Cup, 48752 [ More info ]
|
| #32 | 26-38970 | SEAL, RUBBER - WATER INLET TUBE (1 required per assembly) |
  |
|
26-38970 - Seal - Priced Individually [ More info ]
|
  |
|
18-3110 - Seal, 26-38970 [ More info ]
|
| #33 | 47-30221 | IMPELLER, WATER PUMP (1 required per assembly) |
  |
47-30221 - Impeller, Priced Individually [ More info ] Unavailable |
|
  |
47-65960 - Impeller, Priced Individually [ More info ] Unavailable |
|
  |
47-89984 - Impeller [ More info ] Unavailable |
|
  |
47-89984 2 - Impeller [ More info ] Unavailable |
|
  |
47-89984 4 - Impeller [ More info ] Unavailable |
|
  |
|
47-89984T 4 - Impeller [ More info ]
|
  |
|
18-3017 - Impeller 47-89984 [ More info ]
|
  |
|
47-00001 - Water Pump Impeller Mercury Force 47-89984T 4 [ More info ]
|
| #34 | 17-29967 | PIN, IMPELLER DRIVE (1 required per assembly) |
  |
|
17-29967 - Pin, Impeller Drive [ More info ]
|
  |
17-8M0034466 - Pin - Priced Individually [ More info ] Unavailable |
|
  |
|
17-8M0214994 - PIN @5 [ More info ] Unavailable |
| #35 | 10-30720 | SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4") ALUMINUM (1 required per assembly) |
  |
|
10-30720 - Screw, NLA [ More info ]
|
| #36 | 13-26992 | LOCKWASHER, WATER PUMP BODY SCREW ALUMINUM (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #37 | 11-35888 | NUT, WATER PUMP BODY STUDS (1/4-28) ALUMINUM (2 required per assembly) |
  |
|
11-35888 - Nut (1/4-28) [ More info ]
|
  |
|
18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
|
| #38 | 11-35814 | NUT, WATER PUMP BODY STUD (5/16-24) ALUMINUM (1 required per assembly) |
  |
11-35814 - Nut (5/16-24) [ More info ] Unavailable |
|
  |
|
11-826709 11 - Nut (5/16-24) [ More info ]
|
| #35 | 10-53155 | SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/2") PLASTIC (1 required per assembly) |
  |
|
10-53155 - Screw [ More info ]
|
| #36 | 12-36001 | WASHER, WATER PUMP BODY SCREW PLASTIC (1 required per assembly) |
  |
|
12-36001 - Washer - Priced Individually [ More info ]
|
  |
|
18-4270 - Washer 12-36001 [ More info ]
|
| #37 | 11-35045 | NUT, WATER PUMP BODY STUDS (1/4-28) PLASTIC (2 required per assembly) |
  |
11-35045 - Nut (1/4-28) [ More info ] Unavailable |
|
  |
|
11-826709109 - Nut, (.250-28) Stainless Steel [ More info ]
|
| #38 | 11-45592 | NUT, WATER PUMP BODY STUD (5/16-24) PLASTIC (1 required per assembly) |
  |
|
11-45592 - Nut (5/16-24) [ More info ]
|
  |
|
11-826709111 - Nut, (.312-24) Stainless Steel [ More info ]
|
  |
|
18-3723-9 - Lock Nut, 11-45592, 5PK [ More info ]
|
| #39 | 12-29245 | WASHER, WATER PUMP BODY STUD PLASTIC (3 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #40 | 25-30271 | RING, RUBBE - CENTRIFUGAL SLINGER (DRIVE SHAFT) (1 required per assembly) |
  |
|
25-30271 - Ring - Priced Individually [ More info ]
|
  |
|
25-8M0214918 - WATER PUMP HSG RUBBER RING O/B [ More info ]
|
  |
|
18-7426-9 - O-Ring (PK2) 25-30271 [ More info ]
|
| #41 | 23-29804 | SLEEVE, GUIDE - WATER INLET TUBE (1 required per assembly) |
  |
|
2329804 - Sleeve - Priced Individually [ More info ]
|
  |
|
23-29804T - Sleeve - Priced Individually [ More info ]
|
  |
|
18-3109 - Tube 23-29804 [ More info ]
|
| #42 | 37973 | SHAFT, SHIFT - LOWER (1 required per assembly) |
  |
37973 - SHAFT [ More info ] Unavailable |
|
  |
65028 - Shift Shaft Note: Priced Individually [ More info ] Unavailable |
|
  |
66066 - Shift Shaft, Priced Individually [ More info ] Unavailable |
|
  |
77481 - Shift Shaft - Lower [ More info ] Unavailable |
|
  |
|
77481 1 - Shift Shaft - Lower [ More info ]
|
  |
|
18-2150 - Shaft, 77481-1 [ More info ]
|
| #43 | 18-20233 | CLIP, RETAINING - SHIFT SHAFT (1 required per assembly) |
  |
|
18-20233 - Pin, Hair-Ext, Priced Individually [ More info ]
|
  |
|
53-29641 - E Ring - Priced Individually [ More info ]
|
| #44 | 25-25439 | "O" RING, SHIFT SHAFT BUSHING (1 required per assembly) |
  |
|
25-25439 - O-Ring, Shaft Shaft Bushing [ More info ]
|
| #45 | 23-30617A 2 | BUSHING ASSEMBLY, SHIFT SHAFT (1 required per assembly) |
  |
23-30617A 2 - Bushing Assembly [ More info ] Unavailable |
|
  |
|
23-8M0112749 - Shift Shaft Bushing ZZ [ More info ]
|
  |
|
18-2154 - Bushing, 23-30617A2 [ More info ]
|
| #46 | 26-46021 | OIL SEAL, SHIFT SHAFT BUSHING (1 required per assembly) |
  |
26-46021 - Oil Seal - Priced Individually [ More info ] Unavailable |
|
  |
|
|
  |
|
26-89236 1 - Seal [ More info ]
|
  |
|
18-2009 - Seal, 26-89236 [ More info ]
|
| #47 | 12-31266 | WASHER, RUBBER - SHIFT SHAFT BUSHING (1 required per assembly) |
  |
|
12-31266 - Washer (rubber) [ More info ]
|
| #48 | 12-29395 | WASHER, SHIFT SHAFT (1 required per assembly) |
  |
|
12-29395 - Washer, (.390 X 1.00 X .06) [ More info ]
|
  |
|
12-8M0042641 - Washer [ More info ]
|
  |
|
18-4267-9 - Washer, 12-29395, 2PK [ More info ]
|
| #49 | 10-28634 | SCREW, GEAR HOUSING GREASE FILLER AND VENT HOLE (2 required per assembly) |
  |
10-28634 - Drain Screw ONLY, Priced Individually [ More info ] Unavailable |
|
  |
10-79953 - Drain Screw ONLY, Priced Individually [ More info ] Unavailable |
|
  |
10-79953A 2 - Drain Screw Kit [ More info ] Unavailable |
|
  |
10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable |
|
  |
|
10-79953Q04 - Screw Kit - Priced Individually [ More info ]
|
  |
|
18-2244 - Plug Kit, 10-79953A2 [ More info ]
|
  |
|
10-79953K04 - Drain Screw - Priced Individually [ More info ]
|
| #50 | 12-20260 | WASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW (2 required per assembly) |
  |
12-20260 - Sealing Washer [ More info ] Unavailable |
|
  |
12-19183 - Washer (3/8 Inch Screw) [ More info ] Unavailable |
|
  |
12-19183 2 - Washer - Priced Individually [ More info ] Unavailable |
|
  |
12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable |
|
  |
|
12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ]
|
  |
|
18-2945-9 - Gasket 12-19183 2-Pack [ More info ]
|
  |
|
12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ]
|
  |
|
12-19183K02 - Seal, Pack of 4 [ More info ]
|
  |
|
12-02108-1 - Drain Gasket (1 piece) [ More info ]
|
| #51 | 10-45582 | SCREW, GEAR HOUSING FLUSHING HOLE ALUMINUM (1 required per assembly) |
  |
|
10-45582 - Screw, NLA [ More info ]
|
| #52 | 27-29586 | GASKET, GEAR HOUSING FLUSHING HOLE SCREW ALUMINUM (1 required per assembly) |
  |
|
27-29586 - Gear Housing Flushing Hole Screw Gasket [ More info ]
|
  |
|
27-8M0214916 - GASKET @5 [ More info ] Unavailable |
| #53 | 26-45583 | SEAL, GEAR HOUSING FLUSHING HOLE SCREW ALUMINUM (1 required per assembly) |
  |
|
26-45583 - Seal - Priced Individually [ More info ]
|
  |
|
26-8M0214933 - SEAL @4 [ More info ] Unavailable |
| #54 | 12-49221 | WASHER, FLUSH PLUG - GEAR HOUSING FLUSHING HOLE PLASTIC (1 required per assembly) |
  |
12-49221 - Washer, (.187 X .500 X .062) Neoprene [ More info ] Unavailable |
|
  |
|
12-8M0204663 - Washer, Sold Individually [ More info ]
|
| #55 | 19-48751 | PLUG, FLUSH - GEAR HOUSING FLUSHING HOLE PLASTIC (1 required per assembly) |
  |
|
19-48751 - Plug - Priced Individually [ More info ]
|
