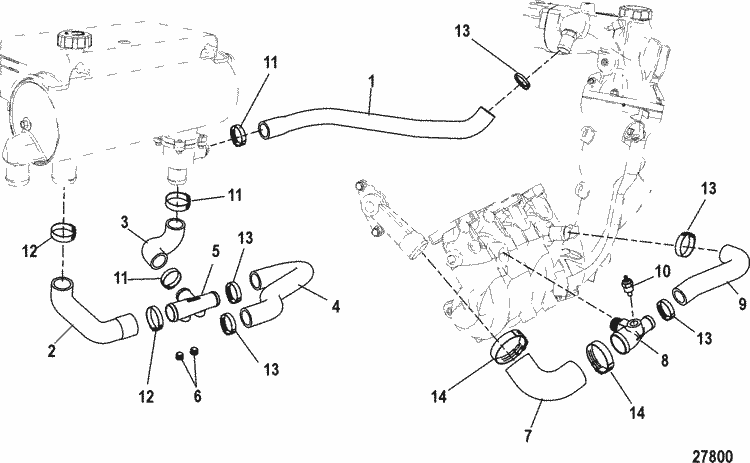

Parts for MerCruiser 100 Vazer Cooling System, Fresh Water System
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 32-8M2000579 | HOSE (1 required per assembly) |
  |
|
32-8M2000579 - Hose [ More info ] Unavailable |
| #2 | 32-8M2000598 | HOSE (1 required per assembly) |
  |
|
32-8M2000598 - Hose [ More info ] Unavailable |

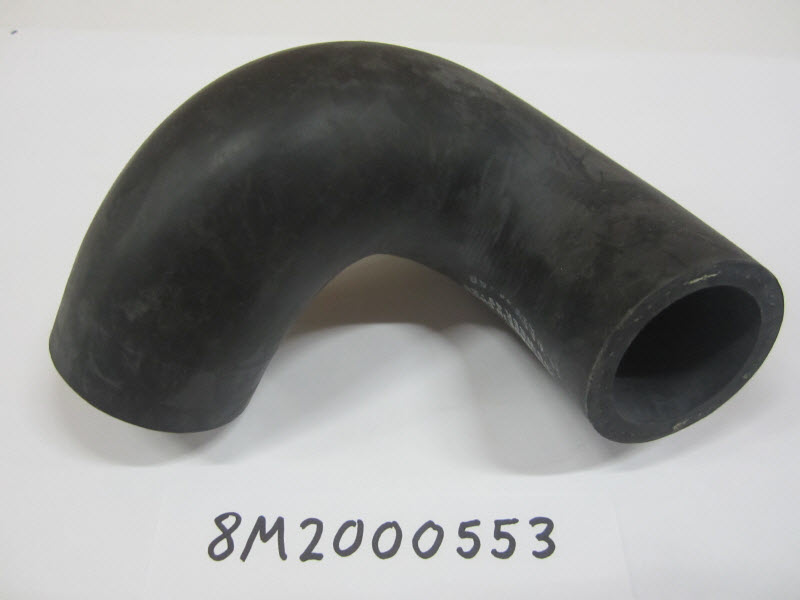

| #3 | 32-8M2000553 | HOSE (1 required per assembly) |
  |
|
8M2000553 - Thermostat Hose [ More info ] Unavailable |
| #4 | 32-8M2000599 | HOSE (1 required per assembly) |
  |
|
32-8M2000599 - Manifold Hose [ More info ] Unavailable |
| #5 | 8M2000597 | MANIFOLD, Hose (1 required per assembly) |
  |
8M2000597 - Manifold-COOLANT [ More info ] Unavailable |
|
  |
|
8M2000601 - Manifold [ More info ] Unavailable |
| #6 | 22-12524 | PLUG, (.375-18 x .475) Brass (2 required per assembly) |
  |
|
|
| #7 | 32-8M2000551 | HOSE (1 required per assembly) |
  |
|
8M2000551 - Hose - Outlet [ More info ]
|
| #8 | 22-8M2001694 | FITTING (1 required per assembly) |
  |
|
22-8M2001694 - Ftz Fitting [ More info ] Unavailable |
| #9 | 32-8M2000552 | HOSE (1 required per assembly) |
  |
|
8M2000552 - Hose -tee to Exhaust [ More info ]
|
| #10 | 806490T | SENDER (1 required per assembly) |
  |
|
806490T - Water Temperature Sender [ More info ]
|
  |
|
18-5897 - Sender, 97257A1 [ More info ]
|
| #11 | 54-8M2001489 | CLAMP, (32 - 50 mm) (3 required per assembly) |
  |
54-8M2001489 - Ord 54-815504228, NLA [ More info ] Unavailable |
|
  |
|
54-815504224 - Clamp [ More info ]
|
| #14 | 54-8M2001490 | CLAMP, Worm Gear (2 required per assembly) |
  |
54-8M2001490 - Clamp [ More info ] Unavailable |
|
  |
|
54-815504232 - Clamp [ More info ]
|
