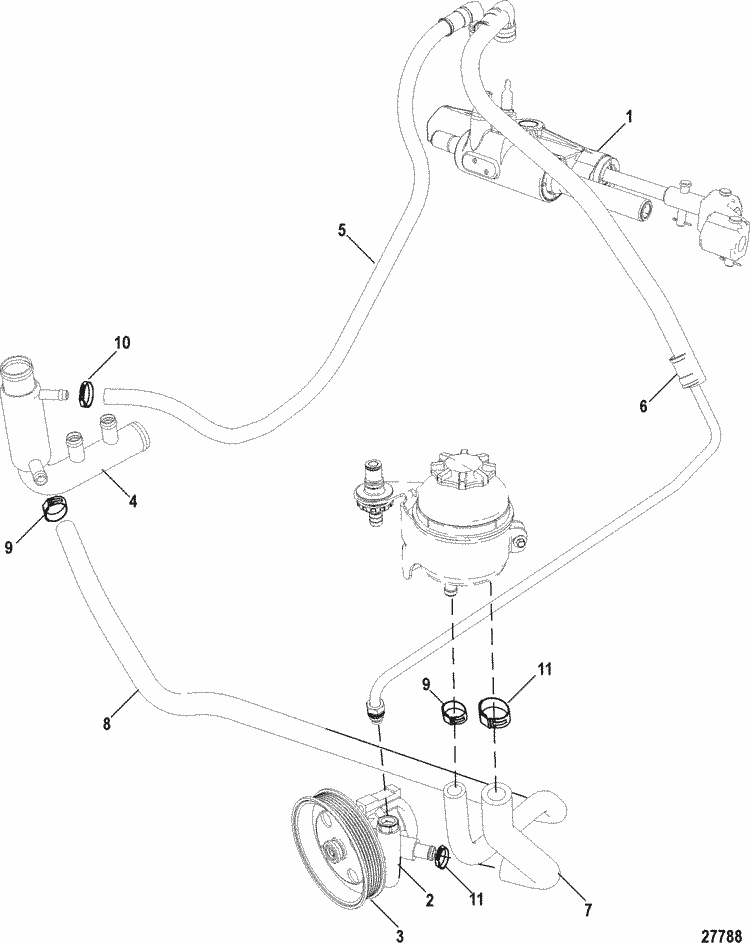

Parts for MerCruiser 100 Vazer EC Steering Components, Power Assisted
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 866439A01 | POWER STEERING ASSEMBLY (1 required per assembly) |
  |
|
866439A01 - Power Steering Assembly [ More info ]
|
| #2 | 865710T | PUMP (1 required per assembly) |
  |
|
865710T - Power Steering Pump [ More info ] Unavailable |
| #3 | 8M2001037 | PULLEY (1 required per assembly) |
  |
|
8M2001037 - Pulley- Power Steering [ More info ]
|
| #4 | 8M8000514 | COOLER (1 required per assembly) |
  |
|
8M8000514 - Housing-Power Steering Cooler [ More info ] Unavailable |
| #5 | 32-8M2000562 | HOSE (1 required per assembly) |
  |
|
32-8M2000562 - Hose [ More info ] Unavailable |
| #6 | 32-866824 | HOSE (1 required per assembly) |
  |
|
32-866824 - Hose - Power Steering [ More info ] Unavailable |
| #7 | 8M2000019 | HOSE (1 required per assembly) |
  |
|
8M2000019 - Hose [ More info ]
|
| #8 | 32-8M2001709 | HOSE, (36.00 Inches Bulk) (1 required per assembly) |
  |
32-8M2001709 - Hose - Breather - 36 Inch [ More info ] Unavailable |
|
  |
32-8M2012906 - Hose [ More info ] Unavailable |
|
  |
|
328M0062669 - Hose [ More info ]
|
| #9 | 54-8M2001486 | CLAMP, Worm Gear (16-27 mm) (2 required per assembly) |
  |
54-8M2001486 - Clamp [ More info ] Unavailable |
|
  |
|
54-815504210 - Clamp [ More info ]
|
| #10 | 54-8M2001485 | CLAMP, Worm Gear (12 - 20 mm) (1 required per assembly) |
  |
54-8M2001485 - Clamp [ More info ] Unavailable |
|
  |
54-815504105 - Clamp [ More info ] Unavailable |
|
  |
|
54-8M0188618 - CLAMP [ More info ] Unavailable |
| #11 | 54-8M2001489 | CLAMP, (32 - 50 mm) (2 required per assembly) |
  |
54-8M2001489 - Ord 54-815504228, NLA [ More info ] Unavailable |
|
  |
|
54-815504224 - Clamp [ More info ]
|
