Parts for MerCruiser 100 Vazer EC Cooling System, Raw Water System
Tap to zoom. Scroll down to order.

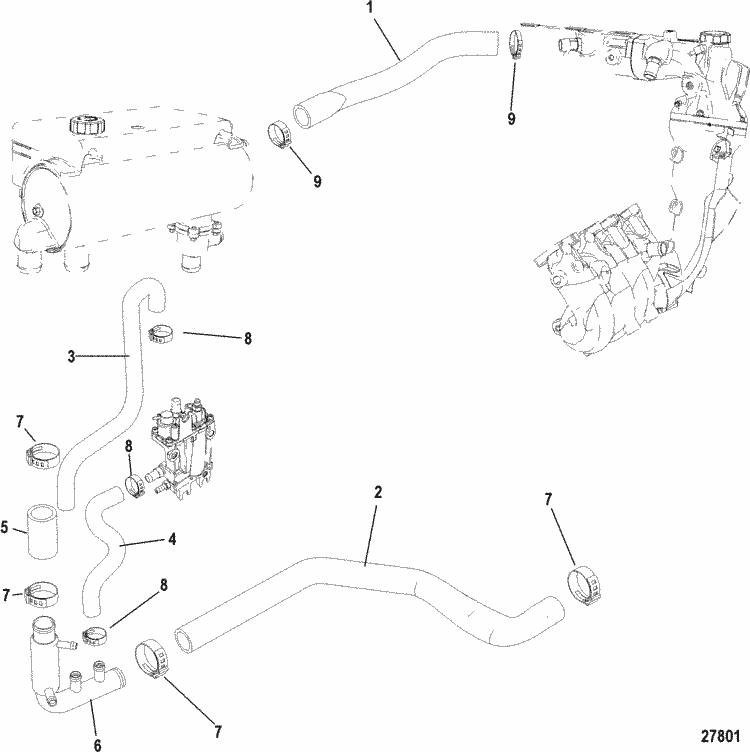

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 32-8M2000143 | HOSE (1 required per assembly) |
  |
|
32-8M2000143 - Hose [ More info ]
|
| #2 | 32-8M2000557 | HOSE (1 required per assembly) |
  |
|
32-8M2000557 - Hose [ More info ] Unavailable |
| #3 | 32-8M2001233 | HOSE (1 required per assembly) |
  |
|
32-8M2001233 - Hose [ More info ] Unavailable |
| #4 | 32-8M2001232 | HOSE (1 required per assembly) |
  |
|
32-8M2001232 - Hose [ More info ] Unavailable |
| #5 | 32-866331 | HOSE, Cut to 2.75 Inches (1 required per assembly) |
  |
|
32-866331 - Hose [ More info ]
|
| #6 | 8M8000514 | COOLER (1 required per assembly) |
  |
|
8M8000514 - Housing-Power Steering Cooler [ More info ] Unavailable |
| #7 | 54-8M2001489 | CLAMP, (32 - 50 mm) (4 required per assembly) |
  |
54-8M2001489 - Ord 54-815504228, NLA [ More info ] Unavailable |
|
  |
|
54-815504224 - Clamp [ More info ]
|
| #8 | 54-815504212 | CLAMP, Worm Gear (4 required per assembly) |
  |
|
54-815504212 - Clamp [ More info ] Unavailable |
| #9 | 54-8M2001487 | CLAMP, (25 - 40 mm) (2 required per assembly) |
  |
54-8M2001487 - Clamp [ More info ] Unavailable |
|
  |
|
54-815504216 - Clamp [ More info ] Unavailable |
