Parts for MerCruiser Race Engine and Drive 1075 SCi Intake Components (Boost Valve)

Revise Search: All Models > 1075 SCi > 0M962886 & Up (USA) > Intake Components (Boost Valve)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

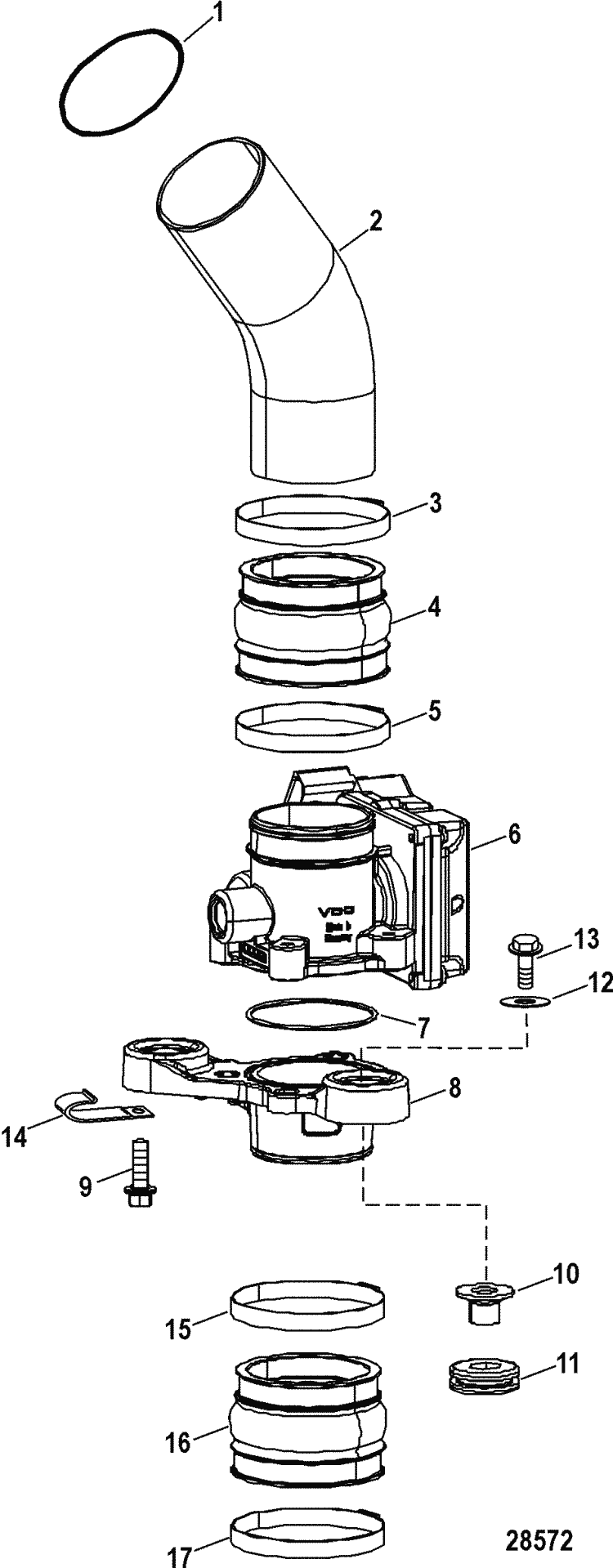

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	27-842593A01	GASKET/SEAL SET, Engine Overhaul (1 required per assembly) - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
		27-842593A01 - Engine Overhaul Gasket Set [ More info ] $2,192.23 Available to Order: Shipping delay up to 10 days.
#1	25-33145	O-RING, (1.984 x .139) (1 required per assembly)
		25-33145 - O-ring, (1.984 X .139) [ More info ] Unavailable
		25-8M0214923 - O RING, sold individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
		18-7162-9 - (PK5) O-Ring 25-33145 [ More info ] $17.00 Available to Order: Shipping delay up to 10 days.
#2	843516001	TUBE, By Pass (1 required per assembly)
		843516001 - TUBE [ More info ] Unavailable
		8M0050957 - Tube [ More info ] Unavailable

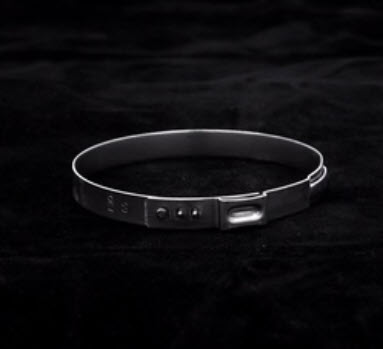

#3	54-888988006	CLAMP, (59.0 mm) (1 required per assembly)
		54-888988006 - Clamp [ More info ] $4.34 Available to Order: Shipping delay up to 10 days.

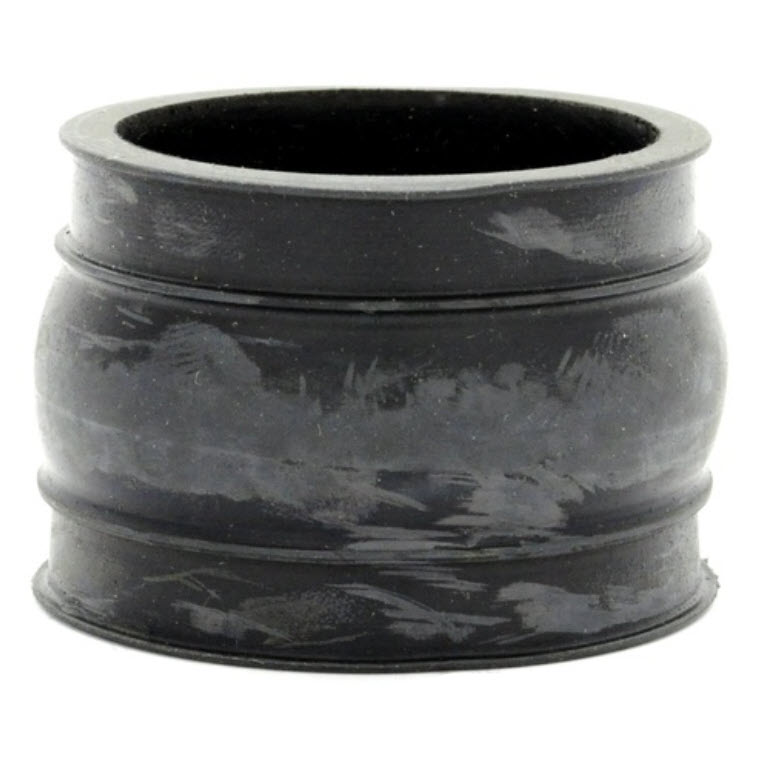

#4	32-887938	TUBE (1 required per assembly)
		32-887938 - Tube [ More info ] $75.32 Available to Order: Shipping delay up to 10 days.
#6	884408A07	VALVE KIT, Control - Electric Boost (1 required per assembly)
		884408A07 - Control Valve KIT [ More info ] Unavailable
		884408A08 - Control Valve Kit [ More info ] $750.49 Available to Order: Shipping delay up to 10 days.
#7	25-892079	O-RING (1 required per assembly)
		25-892079 - O-ring, Boost Pump [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#8	887939007	PLATE, Boost Valve Mounting (1 required per assembly)
		887939007 - Plate [ More info ] $11.89 Available to Order: Shipping delay up to 10 days.
#9	10-885525 20	SCREW, (M6 x 20) Stainless Steel (4 required per assembly)
		10-885525 20 - Screw - Priced Individually [ More info ] Unavailable
		108M0103806 - Screw - Priced Individually [ More info ] $2.39 1 In Stock.
#10	23-850234 1	BUSHING (2 required per assembly)
		23-850234 1 - Bushing [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#11	25-833155	GROMMET (2 required per assembly)
		25-833155 - Grommet [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#12	12-70132	WASHER, (.323 x .563 x .063) Stainless Steel (2 required per assembly)
		12-70132 - Washer, (.323 X .563 X .063 - Stainless Steel) [ More info ] Unavailable
		12-8M0042642 - Washer - Priced Individually [ More info ] $1.80 6 In Stock.
#13	10-F430732	SCREW, (.312-18 x 1.250) Stainless Steel (2 required per assembly)
		10-F430732 - Screw -ss [ More info ] $7.89 $6.32 7 In Stock.
#14	54-47483	J CLIP (1 required per assembly)
		54-47483 - J Clip [ More info ] $8.49 Available to Order: Shipping delay up to 10 days.
#17	54-888988004	CLAMP, (62.0 mm) (1 required per assembly)
		54-888988004 - Clamp [ More info ] $5.69 Available to Order: Shipping delay up to 10 days.
