Parts for MerCruiser Race Engine and Drive 1075 SCi Engine Components (Water Pump)

Revise Search: All Models > 1075 SCi > 0M962886 & Up (USA) > Engine Components (Water Pump)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

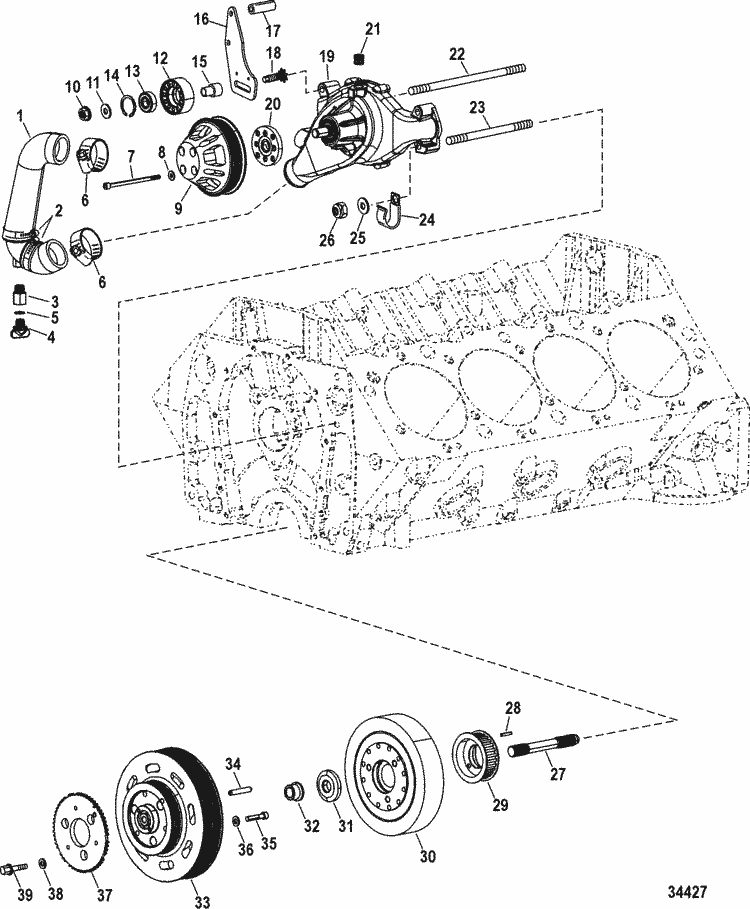

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	841950A07	PARTIAL ENGINE ASSEMBLY (1 required per assembly) 1200
		841950A07 - Partial Engine Assembly [ More info ] Unavailable
#	841350A07	PARTIAL ENGINE ASSEMBLY (1 required per assembly) 850
		841350A07 - Partial Engine Assembly [ More info ] Unavailable
#	841000A17	PARTIAL ENGINE ASSEMBLY (1 required per assembly) 1025/1075
		841000A17 - Partial Engine Assembly [ More info ] Unavailable
#1	32-842416A03	HOSE ASSEMBLY, Drain (1 required per assembly)
		32-842416A03 - Hose - Drain [ More info ] Unavailable
		32-8M0192210 - HOSE ASSY [ More info ] Unavailable
#2	54-18076 8	CLAMP, Worm Gear (2 required per assembly)
		54-18076 8 - Clamp [ More info ] $15.69 Available to Order: Shipping delay up to 10 days.
#3	22-860088	BUSHING (2 required per assembly)
		22-860088 - Bushing [ More info ] Unavailable
		22-8M0214973 - Cylinder Block Adaptor Bushing ZZ [ More info ] $12.79 8 In Stock.
#4	22-806608A02	PLUG ASSEMBLY, (.500-13) Blue (2 required per assembly)
		22-806608A02 - Plug Assembly - Priced Individually [ More info ] $3.05 4 In Stock.
		22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ] $10.19 10+ In Stock.
		18-4226 - Blue Drain Plug, 22-806608A1 [ More info ] $4.10 10+ In Stock.
		22-806608Q01 - Plug - Priced Individually [ More info ] $10.29 1 In Stock.
#5	25-8M2000926	SEAL (2 required per assembly)
		25-8M2000926 - Seal - Priced Individually [ More info ] $1.39 10+ In Stock.
		25-26802 - O-ring, (.424 X .103) [ More info ] $2.89 8 In Stock.
#7	10-849377	SCREW, (.312-24 x .750) Stainless Steel (4 required per assembly)
		10-849377 - Screw [ More info ] $15.13 Available to Order: Shipping delay up to 10 days.
#8	12-70132	WASHER, (.323 x .563 x .063) Stainless Steel (4 required per assembly)
		12-70132 - Washer, (.323 X .563 X .063 - Stainless Steel) [ More info ] Unavailable
		12-8M0042642 - Washer - Priced Individually [ More info ] $1.80 6 In Stock.
#9	899898T79	PULLEY, Water Pump - Polished/Clear Coat (1 required per assembly)
		899898T79 - Pulley - Clear [ More info ] $460.71 Available to Order: Shipping delay up to 10 days.
#10	11-859135	NUT, (.437-20) Brass/Nickel Plated (1 required per assembly)
		11-859135 - Nut (7/16-20), Priced Individually [ More info ] $6.09 2 In Stock.
#11	12-74759	WASHER, (.391 x .880 x .125) Stainless Steel (1 required per assembly)
		12-74759 - Washer, (.391 X .880 X .125) Stainless Steel [ More info ] $11.09 Available to Order: Shipping delay up to 10 days.
#12	899898T62	PULLEY ASSEMBLY, Polished/Clear Coat (1 required per assembly)
		899898T62 - Pulley Assembly - Clear [ More info ] Unavailable
#13	30-33451	BEARING, Ball (1 required per assembly)
		30-33451 - Ball Bearing [ More info ] $63.99 $61.04 6 In Stock.
#14	53-18917	RING, Retaining (1 required per assembly)
		53-18917 - Ring - Retaining [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#15	845117	BUSHING (1 required per assembly)
		845117 - Bushing [ More info ] $25.86 Available to Order: Shipping delay up to 10 days.
#16	8M8021180	BRACKET, Idler Pulley - High Gloss Finish (1 required per assembly)
		8M8021180 - Bracket [ More info ] Unavailable
#17	23-841364	SPACER, (.390 x .750 x 2.10) Black (2 required per assembly)
		23-841364 - Spacer - .39 X .75 X 2.1 [ More info ] Unavailable
#18	43-818381 2	PINION STUD, (.437-20) Stainless Steel (1 required per assembly)
		43-818381 2 - Pinion Stud [ More info ] Unavailable
		43-8M0113182 - Pinion Stud [ More info ] $22.96 2 In Stock.
#19	811573A04	PUMP ASSEMBLY, Circulating Water (1 required per assembly)
		811573A04 - Water Pump Assembly [ More info ] $614.49 In Stock
#20	47530	HUB (1 required per assembly)
		47530 - Hub [ More info ] $65.49 Available to Order: Shipping delay up to 10 days.
#21	22-845174	PLUG, (.500-14 x .610) Brass (1 required per assembly)
		22-845174 - Plug [ More info ] $13.09 Available to Order: Shipping delay up to 10 days.
#22	16-841363	STUD, (.375-16/.375-24 x 7.750) (2 required per assembly)
		16-841363 - Stud [ More info ] Unavailable
#23	16-847532 1	STUD, (.375-16/.375-24 x 5.500) (2 required per assembly)
		16-847532 1 - Stud [ More info ] Unavailable
#24	54-78945	J CLAMP, Harness Support (1 required per assembly)
		54-78945 - J Clamp [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#25	12-856774	WASHER, (.406 x .750 x .105) Stainless Steel (2 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#25	12-34931	WASHER, (.406 x .734 x .063) Stainless Steel (2 required per assembly)
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.
#26	11-826710 13	NUT, (.375-24) Stainless Steel (4 required per assembly)
		11-826710 13 - Nut, (.375-24) Stainless Steel [ More info ] $4.69 10+ In Stock.
		18-3720-9 - Lock Nut, 11-34932, 5PK [ More info ] $16.40 Available to Order: Shipping delay up to 10 days.
#27	16-842627	STUD, (.750-16 x 6.265) (1 required per assembly)
		16-842627 - Stud [ More info ] $120.68 Available to Order: Shipping delay up to 10 days.
#28	28-20094	KEY, Woodruff (1 required per assembly) - NOTE: Also Included With 822922A03 Camshaft Timing Drive Assembly
		28-20094 - Key - Priced Individually [ More info ] $1.80 8 In Stock.
#29	822927	PULLEY, Lower (1 required per assembly) - NOTE: Also Included With 822922A03 Camshaft Timing Drive Assembly
		822927 - Pulley - Lower [ More info ] Unavailable
#30	96479T05	DAMPER (1 required per assembly)
		96479T05 - Damper [ More info ] Unavailable
#31	12-842628	WASHER, Special (1 required per assembly)
		12-842628 - Washer [ More info ] $54.44 Available to Order: Shipping delay up to 10 days.
#32	11-842626	NUT, (.750-16) (1 required per assembly)
		11-842626 - Nut, (.750-16) [ More info ] $127.18 Available to Order: Shipping delay up to 10 days.
#33	879270T92	PULLEY ASSEMBLY, Crankshaft - Polished/Clear Coat (1 required per assembly)
		879270T92 - Pulley Assembly - Clear [ More info ] Unavailable
#34	17-843857	PIN, Roll (1 required per assembly)
		17-843857 - Pin -roll [ More info ] Unavailable
#35	10-823029	SCREW, (.312-18 x 1.500) Stainless Steel (3 required per assembly)
		10-823029 - Screw [ More info ] $6.44 Available to Order: Shipping delay up to 10 days.
#36	12-843108	WASHER, (.330 x .560 x .060) Stainless Steel (3 required per assembly)
		12-843108 - Washer, (.330 X .560 X .060) Stainless Steel [ More info ] $0.69 Available to Order: Shipping delay up to 10 days.
#37	842580	WHEEL, Trigger (1 required per assembly)
		842580 - WHEEL-TRIGGER [ More info ] Unavailable
		8M0051039 - Trigger Wheel [ More info ] Unavailable
#38	12-8M0031525	WASHER, (.390 x .675 x .120) Black (3 required per assembly)
		12-8M0031525 - Washer, (.390 X .675 X .120) Black [ More info ] $10.26 Available to Order: Shipping delay up to 10 days.
#39	10-843831	SCREW, (.375-16 x 1.500) (3 required per assembly)
		10-843831 - Screw [ More info ] $9.85 Available to Order: Shipping delay up to 10 days.
