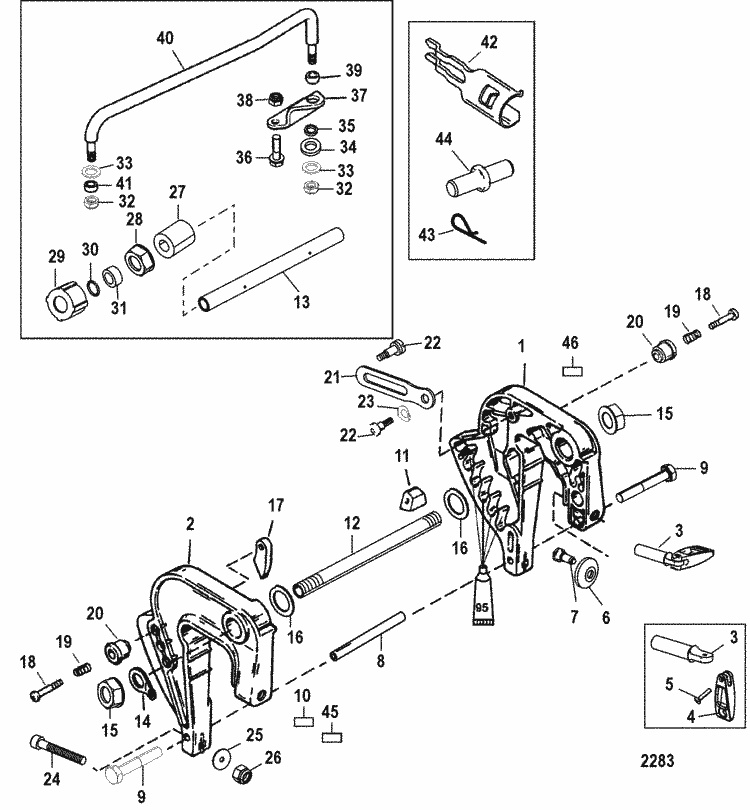

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	3404-8894A 8	CLAMP BRACKET ASSEMBLY (1 required per assembly) (Port) (Black)
		3404-8894A 8 - Clamp Bracket Assembly [ More info ] $233.49 Available to Order: Shipping delay up to 10 days.
#2	3403-8892A 6	CLAMP BRACKET ASSEMBLY (1 required per assembly) (Starboard) (Black)
		3403-8892A 6 - Clamp Bracket [ More info ] $233.49 Available to Order: Shipping delay up to 10 days.
#3	10-92767A 3	THUMB SCREW ASSEMBLY, (16 mm) (2 required per assembly)
		10-92767A 3 - Thumb Screw Assembly, 16MM [ More info ] $50.43 4 In Stock.
#6	12-73719	WASHER (2 required per assembly)
		12-73719 - Washer, Thumb Screw [ More info ] $3.89 10+ In Stock.
#7	10-76804 2	SHOULDER SCREW, Hex (2 required per assembly)
		10-76804 2 - Screw [ More info ] $3.49 Available to Order: Shipping delay up to 10 days.
#8	23-818539	SPACER (1 required per assembly)
		23-818539 - Spacer [ More info ] Unavailable
		238M0084719 - Spacer [ More info ] $15.19 Available to Order: Shipping delay up to 10 days.
#9	10-40003 33	SCREW, (M6 x 40) (2 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#10	37-12869	DECAL, Tilt Position (1 required per assembly)
		37-12869 - Decal [ More info ] $5.49 2 In Stock.
#11	814427	SHUTTLE (1 required per assembly)
		814427 - Tilt Lock Shuttle [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#12	42078	TILT TUBE (1 required per assembly) (Handle Models)
		42078 - Tilt Tube [ More info ] $73.49 Available to Order: Shipping delay up to 10 days.
#13	883067	TILT TUBE (1 required per assembly) (RC Models)
		883067 - Tilt Tube [ More info ] Unavailable
		8M0035074 - Tilt Tube [ More info ] Unavailable
		8M0041936 - Tilt Tube [ More info ] $29.75 2 In Stock.
#14	54-30954	CLIP (1 required per assembly)
		54-30954 - Clip [ More info ] Unavailable
		548M0085928 - Clip [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#15	11-93164	NUT, (.875) (2 required per assembly)
		11-93164 - Nut, (.875) [ More info ] $3.80 7 In Stock.
#16	12-71421	WASHER, Nylon (2 required per assembly)
		12-71421 - Washer, Nylon [ More info ] $1.80 2 In Stock.
#17	42390A 1	LEVER ASSEMBLY, Tilt Return (2 required per assembly)
		42390A 1 - Lever Assembly [ More info ] $20.09 Available to Order: Shipping delay up to 10 days.
#21	90901	STRAP, Port Side (1 required per assembly)
		90901 - Tilt Stop Strap [ More info ] Unavailable
#22	10-42498	SCREW, (M6 x 1.0) (2 required per assembly)
		10-42498 - Screw [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#23	13-31030	WAVE WASHER (1 required per assembly)
		13-31030 - Wave Washer - Priced Individually [ More info ] $1.80 10+ In Stock.
#24	10-43216	BOLT, (.250-20 x 3.50) (2 required per assembly)
		10-43216 - Screw [ More info ] $5.39 $4.32 5 In Stock.
#25	12-67983	WASHER (2 required per assembly)
		12-67983 - Washer, Clamp Bracket Bolt [ More info ] $3.09 $0.62 10+ In Stock.
#26	11-826711 8	NUT, (.250-20) (2 required per assembly)
		11-826711 8 - Nut [ More info ] $3.71 7 In Stock.
#27	23-11384 1	SPACER (1 required per assembly) (RC Models)
		23-11384 1 - Spacer [ More info ] $16.77 1 In Stock.
#29	19624A 1	SEAL KIT (1 required per assembly) (RC Models)
		19624A 1 - Seal Kit [ More info ] $11.51 2 In Stock.
#30	25-29619	O-RING, (.583 x .103) (1 required per assembly) (RC Models)
		25-29619 - O-ring, (.583 X .103) [ More info ] $2.69 10+ In Stock.
#31	23-78861	SPACER (1 required per assembly) (RC Models)
		23-78861 - Spacer [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#32	11-826709113	NUT, (.375-24) Stainless Steel (2 required per assembly) (RC Models)
		11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable
		11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#33	12-37828	WASHER, (.390 x .625 x .062) Stainless Steel (.625 O.D.) (3 required per assembly) (RC Models)
		12-37828 - Washer, (.390 X .625 X .062) Stainless Steel [ More info ] $0.80 2 In Stock.
#34	12-30521	WASHER, (.97 x .56 x .19) (1 required per assembly) (RC Models)
		12-30521 - Washer, (.97 X .56 X .19) (neoprene) [ More info ] $3.11 10+ In Stock.
#35	12-71970	WASHER, (.390 x .546 x .12) (1 required per assembly) (RC Models)
		12-71970 - Washer (.39 X .546 X .10) [ More info ] $5.49 5 In Stock.
		128M0109680 - Washer [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#36	10-824071 7	SCREW, (M8 x 30) (2 required per assembly) (RC Models)
		10-824071 7 - Screw [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#37	11607	BRACKET (1 required per assembly) (RC Models)
		11607 - Bracket [ More info ] $66.03 1 In Stock.
#38	11-40138 8	NUT, (M8) Stainless Steel (2 required per assembly) (RC Models)
		11-40138 8 - Nut - Priced Individually [ More info ] $3.11 3 In Stock.
#39	29698	BALL JOINT (1 required per assembly) (RC Models)
		29698 - Ball Joint [ More info ] $13.09 10+ In Stock.
#40	11606A 1	ATTACHING KIT, Starboard (1 required per assembly) (RC Models)
		11606A 1 - Attaching Kit - Starboard [ More info ] $180.04 Available to Order: Shipping delay up to 10 days.
#41	23-66751	SPACER, (.250 x .390 x .630) Stainless Steel (1 required per assembly) (RC Models)
		23-66751 - Spacer - .25 X .39 X .63 [ More info ] $13.39 10+ In Stock.
		23-8M0151156 - SPACER [ More info ] Unavailable
#42	42429 1	RETAINER (2 required per assembly) (RC Models)
		42429 1 - Retainer [ More info ] $13.30 Available to Order: Shipping delay up to 10 days.
#43	54-11372	CLIP (1 required per assembly) (RC Models)
		54-11372 - Clip [ More info ] $5.43 Available to Order: Shipping delay up to 10 days.
#44	15822	PLUG (1 required per assembly) (RC Models)
		15822 - Plug [ More info ] Unavailable
		15822001 - Plug [ More info ] $13.09 1 In Stock.
#45	NSS	NOT SOLD SEPARATE (Decal-Lower Tilt Limit) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
