Parts for Mariner W8 (M) (W / Marathon) Remote Control Attaching Kit

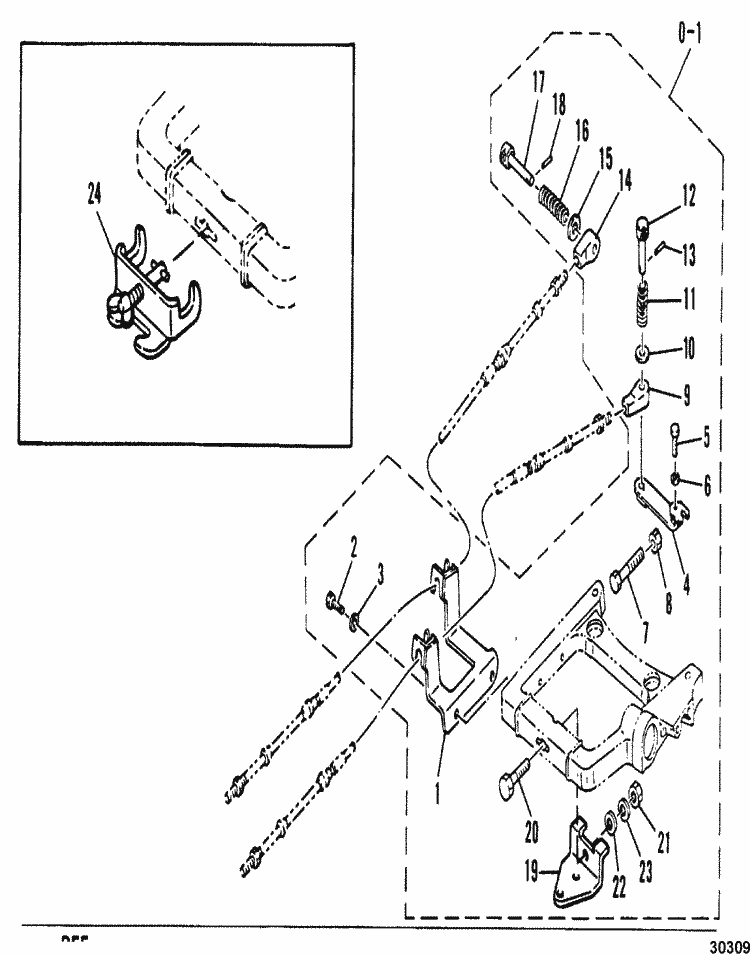

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #0-1 | 43986A 1 | ATTACHING KIT, Remote Control (1 required per assembly) |
  |
|
43986A 1 - Remote Control Attaching Kit [ More info ]
|
| #1 | 84224M | BRACKET, CABLE (1 required per assembly) |
  |
|
84224M - Bracket, NLA [ More info ] Unavailable |
| #2 | 10-84541M | BOLT (2 required per assembly) |
  |
|
91-84541M - BOLT NLA [ More info ] Unavailable |
| #3 | 12-82214M | WASHER (2 required per assembly) |
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #4 | 84225M | LEVER, THROTTLE CONTROL (1 required per assembly) |
  |
|
84225M - Lever [ More info ] Unavailable |
| #5 | 10-82447M | BOLT (1 required per assembly) |
  |
|
10-82447M - Bolt, NLA [ More info ]
|
| #6 | 12-82211M | WASHER (1 required per assembly) |
  |
|
12-82211M - Washer - Priced Individually [ More info ]
|
| #7 | 10-92536M | BOLT (1 required per assembly) |
  |
10-92536M - BOLT [ More info ] Unavailable |
|
  |
|
10-84657M - Screw, NLA [ More info ]
|
| #8 | 11-83611M | NUT (1 required per assembly) |
  |
11-83611M - NUT Note: Priced Individually [ More info ] Unavailable |
|
  |
|
11-82389M - Nut, NLA [ More info ] Unavailable |
| #9 | 84227M | END, Cable (1 required per assembly) |
  |
|
84227M - Cable End, NLA [ More info ] Unavailable |
| #10 | 12-82217M | WASHER (1 required per assembly) |
  |
|
12-82217M - Washer, NLA [ More info ]
|
| #11 | 24-83725M | SPRING (1 required per assembly) |
  |
|
24-83725M - Spring, NLA [ More info ] Unavailable |
| #12 | 17-83726M | HOOK (1 required per assembly) |
  |
17-83726M - Pin [ More info ] Unavailable |
|
  |
|
17-814499M - PIN-ANCHOR,NLA [ More info ] Unavailable |
| #13 | 17-82146M | PIN, ROLL (1 required per assembly) |
  |
|
17-82146M - Pin -roll, NLA [ More info ] Unavailable |
| #14 | 83724M | END, Cable (1 required per assembly) |
  |
|
83724M - Cable End Fitting, NLA [ More info ]
|
| #16 | 24-83721M | SPRING (1 required per assembly) |
  |
|
24-83721M - Spring, NLA [ More info ] Unavailable |
| #17 | 17-83722M | HOOK (1 required per assembly) |
  |
17-83722M - Pin [ More info ] Unavailable |
|
  |
|
17-814500M - Anchor Pin, NLA [ More info ]
|
| #19 | 11670M | BRACKET, STEERING ATTACHING . (1 required per assembly) SN# M-057971/ML-383909/MUL-702821 & Up |
  |
11670M - Steering Bracket Ball Post Type [ More info ] Unavailable |
|
  |
|
11670T - Bracket [ More info ] Unavailable |
| #19 | 83698M | HOOK, STEERING ATTACHING . (1 required per assembly) SN# M-057970/ML-383908/MUL-702820 & Below |
  |
|
83698M - Bracket, NLA [ More info ]
|
| #20 | 10-91636M | BOLT (1 required per assembly) |
  |
|
10-91636M - Screw, NLA [ More info ]
|
| #21 | 11-81785M | LOCKNUT (1 required per assembly) |
  |
|
11-81785M - Nut, Nylon,NLA [ More info ]
|
| #22 | 12-82220M | WASHER (1 required per assembly) |
  |
|
12-82220M - Washer - Priced Individually [ More info ] Unavailable |
| #23 | 13-82218M | LOCKWASHER (1 required per assembly) SN# M-060863/ML-389232/MUL-702828 & Below |
  |
|
13-82218M - LockWasher - Priced Individually [ More info ]
|
| #24 | 83727M | BRACKET, STEERING (ROPE TYPE, OPT) (1 required per assembly) |
  |
|
83727M - Bracket, NLA [ More info ] Unavailable |
