Parts for Mariner W15 HP Intake Manifold & Choke
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 81212M | BASE, AIR INTAKE COVER (1 required per assembly) |
  |
|
81212M - SILENCER,NLA [ More info ] Unavailable |
| #2 | 81213M | COVER, AIR INTAKE (1 required per assembly) |
  |
|
81213M - SILENCER,NLA [ More info ] Unavailable |
| #3 | 10-82492M | SCREW (2 required per assembly) |
  |
10-82492M - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-82521M - Screw [ More info ]
|
  |
|
10-83108M - Screw, NLA [ More info ]
|
| #4 | 12-82211M | WASHER (2 required per assembly) |
  |
|
12-82211M - Washer - Priced Individually [ More info ]
|
| #5 | 34-81209M | REED VALVE ASS'Y (1 required per assembly) |
  |
|
34-81209M - REED,NLA [ More info ] Unavailable |
| #6 | 34-84491M | REED SET (REED STOPS NOT INCLUDED) (1 required per assembly) |
  |
|
34-84491M - REED KIT,NLA [ More info ] Unavailable |
| #7 | 27-81210M | GASKET, RED VALVE (1 required per assembly) |
  |
|
27-81210M - Gasket, NLA [ More info ] Unavailable |
| #8 | 27-81211M | GASKET, CARBURETOR TO REED VALVE (1 required per assembly) |
  |
|
27-81211M - Gasket, NLA [ More info ] Unavailable |
| #9 | 10-82423M | BOLT (3 required per assembly) |
  |
|
10-82423M - Bolt, NLA [ More info ]
|
| #10 | 13-82212M | LOCKWASHER (4 required per assembly) |
  |
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #12 | 11-82381M | NUT (2 required per assembly) |
  |
11-82381M - Nut - Priced Individually [ More info ] Unavailable |
|
  |
|
11-82390M - Nut, (M6) [ More info ]
|
| #13 | 12-82214M | WASHER (2 required per assembly) |
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|

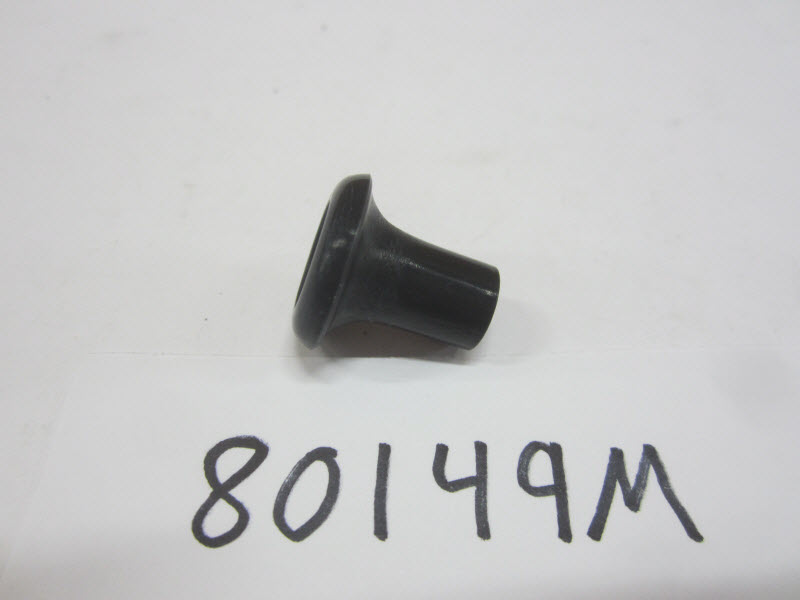

| #14 | 80149M | KNOB, CHOKE (1 required per assembly) |
  |
|
80149M - Knob, NLA [ More info ] Unavailable |
| #15 | 80128M | INDICATOR, CHOKE (1 required per assembly) |
  |
|
80128M - Indicator, NLA [ More info ] Unavailable |
| #16 | 23-80053M | BUSHING, CHOKE KNOB (1 required per assembly) |
  |
|
23-80053M - Bushing, NLA [ More info ] Unavailable |
| #17 | 80766M | LINK ROD, CHOKE (1 required per assembly) |
  |
|
80766M - Link Rod, NLA [ More info ] Unavailable |
| #18 | 12-82847M | WASHER (1 required per assembly) |
  |
|
12-82847M - Washer, NLA [ More info ]
|
| #19 | 83110M | CHOKE LINK ASS'Y (1 required per assembly) |
  |
|
83110M - Linkage, NLA [ More info ] Unavailable |
| #20 | 10-84315M | BOLT (1 required per assembly) |
  |
10-84315M - BOLT [ More info ] Unavailable |
|
  |
|
10-84088M - Bolt [ More info ]
|
| #21 | 81228M | LINK ROD, CHOKE LEER (1 required per assembly) |
  |
|
81228M - LINK ROD,NLA [ More info ] Unavailable |
| #22 | 12-82933M | WASHER (2 required per assembly) |
  |
|
12-82933M - Washer, Throttle Handle Pin, NLA [ More info ]
|
| #23 | 13-81864M | WASHER, WAVE (1 required per assembly) |
  |
|
13-81864M - WASHER-WAVE,NLA [ More info ] Unavailable |
| #24 | 18-82051M | PIN (1 required per assembly) |
  |
|
18-82051M - Cotter Pin - Priced Individually [ More info ]
|
| #25 | 13-81863M | WASHER, WAVE (2 required per assembly) |
  |
|
13-81863M - WAVE WASHER,NLA [ More info ] Unavailable |
| #26 | 18-82050M | PIN (2 required per assembly) |
  |
|
18-82050M - Cotter Pin, NLA [ More info ]
|
