Parts for Mariner V-200 HP EFI (2.5L) Flywheel / Alternator

Revise Search: All Models > V-200 HP EFI (2.5L) > 1B227000 & Up (USA) > Flywheel / Alternator

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

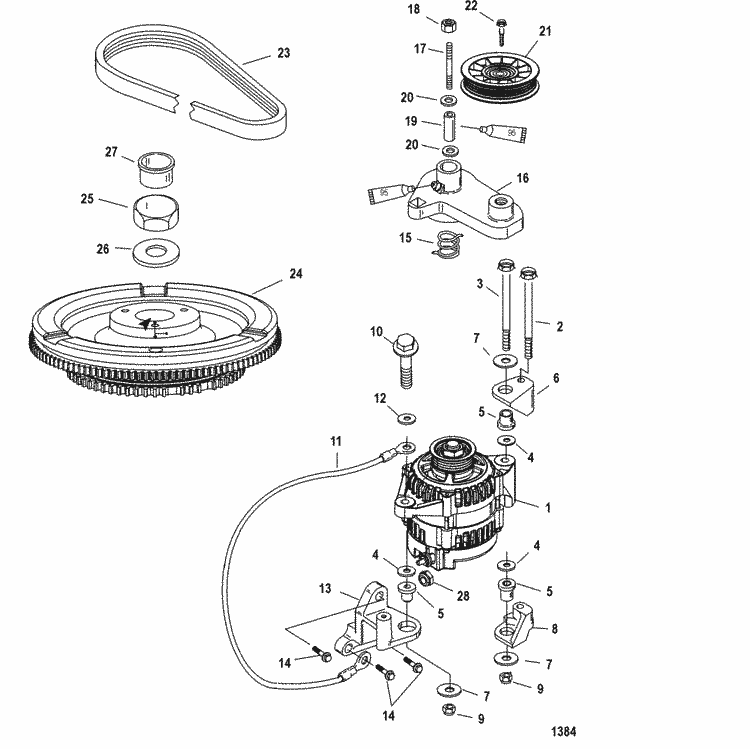

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	881248T	ALTERNATOR (1 required per assembly) SN# 1B417701 & Below
		881248T - Alternator [ More info ] Unavailable
		889955A03 - 8M0064021 [ More info ] Unavailable
		8M0064021 - Alternator [ More info ] $814.49 Available to Order: Shipping delay up to 10 days.
		18-6454 - Alternator, 875285T1 [ More info ] $529.99 $524.74 Available to Order: Shipping delay up to 10 days.
		20840 - Alternator [ More info ] $503.33 2 In Stock.
#1	889955A03	ALTERNATOR KIT (1 required per assembly) SN# 1B417702 & Up
#2	10-40108100	SCREW, (M10 x 100) Hex Flange - Stainless Steel (1 required per assembly)
		10-40108100 - Screw [ More info ] Unavailable
		10-8M0012503 - Screw [ More info ] $12.99 Available to Order: Shipping delay up to 10 days.
#3	10-40108120	SCREW, (M10 x 120) Hex Flange - Stainless Steel (1 required per assembly)
		10-40108120 - Screw [ More info ] $13.59 Available to Order: Shipping delay up to 10 days.
#4	12-29395	WASHER, (.390 x 1.00 x .06) (3 required per assembly)
		12-29395 - Washer, (.390 X 1.00 X .06) [ More info ] $0.98 10+ In Stock.
		12-8M0042641 - Washer [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
		18-4267-9 - Washer, 12-29395, 2PK [ More info ] $3.49 Available to Order: Shipping delay up to 10 days.
#5	23-856975	MOUNT (3 required per assembly)
		23-856975 - Mount [ More info ] $83.49 Available to Order: Shipping delay up to 10 days.
#6	858391T	BRACKET (1 required per assembly)
		858391T - Bracket [ More info ] Unavailable
		858391T01 - Bracket [ More info ] $35.49 Available to Order: Shipping delay up to 10 days.
#7	12-845998	WASHER, (.406 x 1.250 x .089) (3 required per assembly)
		12-845998 - Washer, (.406 X 1.250 X .089) [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#8	858393T	BRACKET (1 required per assembly)
		858393T - Bracket [ More info ] Unavailable
		858393T01 - Bracket [ More info ] $41.99 Available to Order: Shipping delay up to 10 days.
#9	11-826292	NUT, (M10) Brass/Nickel Plated (2 required per assembly)
		11-826292 - Nut (M10) [ More info ] $4.19 $3.36 10+ In Stock.
#10	10-824461 55	SCREW, (M10 x 55) (1 required per assembly)
		10-824461 55 - Screw - Priced Individually [ More info ] $13.49 $10.80 8 In Stock.
#11	84-856583T 2	CABLE ASSEMBLY (1 required per assembly)
		84-856583T 2 - Cable Assembly [ More info ] $16.39 Available to Order: Shipping delay up to 10 days.
#12	12-40023 19	WASHER (1 required per assembly)
		12-40023 19 - Washer (M10) [ More info ] $3.19 7 In Stock.
#13	857142T	BRACKET (1 required per assembly)
		857142T - Bracket [ More info ] $41.99 Available to Order: Shipping delay up to 10 days.
#14	10-812618	SCREW, (.312-18 x 1.00) Stainless Steel With Nylon Patch (3 required per assembly)
		10-812618 - Screw [ More info ] $4.19 2 In Stock.
#15	24-855798001	SPRING (1 required per assembly)
		24-855798001 - Spring [ More info ] $53.99 Available to Order: Shipping delay up to 10 days.
#16	856815T 2	ARM TENSIONER ASSEMBLY (1 required per assembly)
		856815T 2 - Arm Tensioner Assembly [ More info ] $74.49 Available to Order: Shipping delay up to 10 days.
#17	16-856900	STUD, (M10 x 85) (1 required per assembly)
		16-856900 - Stud [ More info ] Unavailable
		16-8M0034457 - Stud [ More info ] $21.29 Available to Order: Shipping delay up to 10 days.
#19	23-856894 1	BUSHING (1 required per assembly)
		23-856894 1 - Bushing [ More info ] $54.49 Available to Order: Shipping delay up to 10 days.
#20	12-40023 20	WASHER (2 required per assembly)
		12-40023 20 - Washer - Priced Individually [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#21	883471T	PULLEY (1 required per assembly)
		883471T - Pulley [ More info ] $49.99 Available to Order: Shipping delay up to 10 days.
#22	10-40108 35	SCREW, (M10 x 35) Hex Flange - Stainless Steel (1 required per assembly)
		10-40108 35 - Screw [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#23	57-828507 11	BELT (1 required per assembly)
		57-828507 11 - BELT [ More info ] $32.70 3 In Stock.
		57-828507Q11 - Belt [ More info ] $60.99 $60.83 Available to Order: Shipping delay up to 10 days.
#24	281-859734T 1	FLYWHEEL (1 required per assembly)
		281-859734T 1 - Flywheel [ More info ] $730.49 Available to Order: Shipping delay up to 10 days.
#25	11-52901	NUT, (.625-18) (1 required per assembly)
		11-52901 - Nut (5/8-18) [ More info ] $13.19 Available to Order: Shipping delay up to 10 days.
#26	12-68229	WASHER, (.641 x 1.250 x .190) (1 required per assembly)
		12-68229 - Washer, (.641 X 1.250 X .190), Flywheel Nut [ More info ] Unavailable
		12-33001 - Washer, Flywheel Nut [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#27	19-45907	PLUG, Yellow (1 required per assembly)
		19-45907 - Plug [ More info ] $7.09 2 In Stock.
#28	11-40138 6	NUT, (M6) Stainless Steel (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 10+ In Stock.
