Parts for Mariner V-175 HP Reed Block

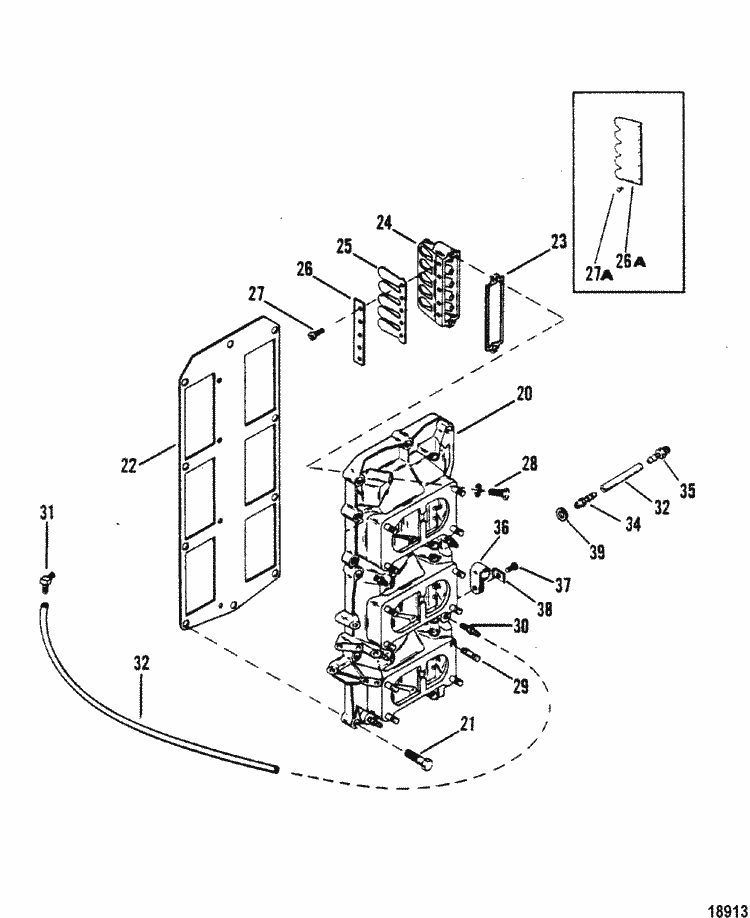

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-11338A88 | GASKET SET, Engine Overhaul (1 required per assembly) SN# 6618751 & Up |
  |
|
27-11338A88 - Engine Overhaul Gasket Set [ More info ] Unavailable |
  |
|
18-4319 - Gasket, 27-11338A88 [ More info ]
|
| # | 27-79583A81 | GASKET SET (1 required per assembly) SN# 5875204 THRU 6618750 |
  |
|
27-79583A81 - Engine Gasket Set [ More info ] Unavailable |
| #20 | 99747A 2 | HOUSING (1 required per assembly) |
  |
|
99747A 2 - Housing, NLA [ More info ] Unavailable |
| #20 | 99747A 9 | HOUSING (1 required per assembly) (USE W/SQUARE FUEL PUMP) |
  |
|
99747A 9 - Reed Block Housing, NLA [ More info ] Unavailable |
| #21 | 10-24878 | SCREW, (.250-20 x 1.25) (1 required per assembly) |
  |
|
10-24878 - Screw, NLA [ More info ]
|
| #21 | 10-69067 | SCREW, (.25-20 X 1.375) (1 required per assembly) |
  |
|
10-69067 - Screw - Priced Individually [ More info ]
|
| #21 | 10-69093 | SCREW, (.25-20 X 1.50) (8 required per assembly) |
  |
|
10-69093 - Screw, NLA [ More info ]
|
| #22 | 27-93536 1 | GASKET, REED BLOCK HOUSING (1 required per assembly) |
  |
|
27-93536 1 - Gasket - Priced Individually [ More info ]
|
| #23 | 27-65744 3 | GASKET, REED BLOCK (6 required per assembly) |
  |
|
27-65744 3 - Gasket [ More info ]
|
| #24 | 75953 | REED BLOCK (6 required per assembly) |
  |
|
75953 - Reed Block [ More info ]
|
| #26A | 34-67298 | REED STOP (12 required per assembly) (DESIGN I) |
  |
|
34-67298 - Reed Stop, NLA [ More info ] Unavailable |
| #27A | 10-76497 | SCREW, REEDS TO REED BLOCK (60 required per assembly) (DESIGN I) |
  |
|
10-76497 - Screw, NLA [ More info ]
|
| #25 | 34-75362A 1 | REED ASSEMBLY (6 required per assembly) (DESIGN II) |
  |
|
34-75362A 1 - Reed Kit [ More info ]
|
| #26 | 96183 | REED CLAMP (12 required per assembly) (DESIGN II) |
  |
96183 - Clamp [ More info ] Unavailable |
|
  |
|
96183 2 - Clamp - Reed [ More info ]
|
| #27 | 10-57583 | SCREW, (#8-32 x .375), REEDS TO REED BLOCK (60 required per assembly) (DESIGN II) |
  |
10-57583 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
|
10-57583T - Screw - Priced Individually [ More info ]
|
| #28 | 10-65746 | SCREW, (.250-20 x .750), REED BLOCK (12 required per assembly) |
  |
|
10-65746 - Screw w/ Lw - Priced Individually [ More info ]
|
| #29 | 16-27037 | STUD, (.250-28 x 1.125), CARBURETOR MOUNTING (12 required per assembly) |
  |
16-27037 - Stud [ More info ] Unavailable |
|
  |
|
16-27037 2 - Stud [ More info ]
|
| #30 | 21-42658 | CHECK VALVE (5 OR 6 required per assembly) |
  |
21-42658 - Check Valve [ More info ] Unavailable |
|
  |
21-42658 2 - Check Valve [ More info ] Unavailable |
|
  |
|
21-42658 5 - Check Valve [ More info ]
|
| #31 | 22-15133 | FITTING (90 DEG.) (5 OR 6 required per assembly) |
  |
|
22-15133 - Fitting [ More info ]
|
| #32 | 32-99130122 | TUBING, (20.00 Feet Bulk), BLEED LINE (1 required per assembly) (.092 I.D.) |
  |
32-99130122 - Tubing-20 FEET [ More info ] Unavailable |
|
  |
|
32-892024122 - Tubing - 20 Feet [ More info ]
|
| #32 | 32-99387 79 | HOSE, BLEED (1 required per assembly) LINE (.077 I.D.) |
  |
|
32-99387 79 - Hose -27 Inch [ More info ]
|
| #34 | 22-65857 | CONNECTOR (Press-In) (1 required per assembly) SN# 6618751 & Up |
  |
|
22-65857 - Fitting [ More info ]
|
  |
|
22-56759 - Fitting [ More info ]
|
| #34 | 22-79790 | FITTING (1 required per assembly) (5/16-24 THREAD) |
  |
|
22-79790 - Check Valve, NLA [ More info ]
|
| #35 | 21-64871A 2 | CHECK VALVE (1 required per assembly) (ELBOW) |
  |
|
21-64871A 2 - Check Valve Assembly, NLA [ More info ]
|
| #35 | 22-42867 | CHECK VALVE (1 required per assembly) (STRAIGHT) |
  |
21-42867 - Check Valve [ More info ] Unavailable |
|
  |
|
21-42867 1 - Check Valve, NLA [ More info ]
|
| #36 | 54-23567 | CLIP (2 required per assembly) |
  |
|
|
| #37 | 10-62568 | SCREW, (#10-16 x .375), CLAMP (2 required per assembly) |
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
| #38 | 69205 | C WASHER (2 required per assembly) |
  |
69205 - C Washer [ More info ] Unavailable |
|
  |
|
8M0084613 - Washer [ More info ]
|
| #39 | 12-73473 | WASHER (1 required per assembly) (USE W/THREADED REF. #34) |
  |
|
12-73473 - WASHER,NLA [ More info ] Unavailable |
