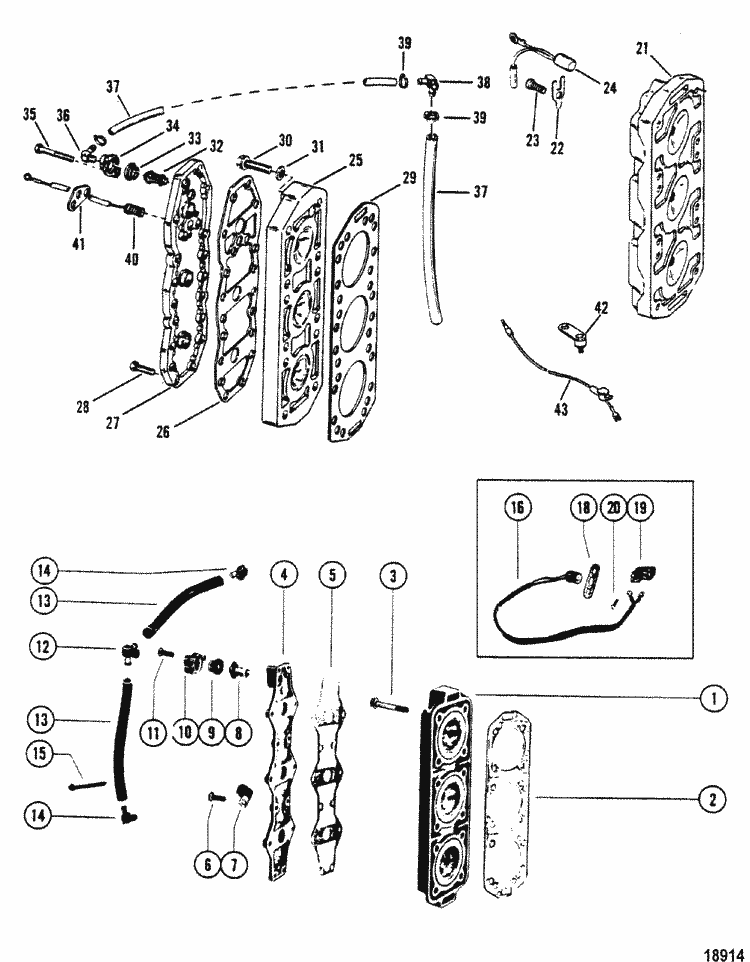

Parts for Mariner V-175 HP Cylinder Head
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | NLA | No Longer Available, Gasket Set (1 required per assembly) (Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & Below |
  |
|
NLA - No Longer Availab [ More info ] Unavailable |
| # | 27-11338A88 | GASKET SET, Engine Overhaul (1 required per assembly) SN# 6618751 & Up |
  |
|
27-11338A88 - Engine Overhaul Gasket Set [ More info ] Unavailable |
  |
|
18-4319 - Gasket, 27-11338A88 [ More info ]
|
| # | 27-79583A81 | GASKET SET (1 required per assembly) SN# 5875204 THRU 6618750 |
  |
|
27-79583A81 - Engine Gasket Set [ More info ] Unavailable |
| #1 | 79715 | CYLINDER HEAD (2 required per assembly) (DESIGN I) |
  |
|
79715 - Cylinder Head, NLA [ More info ] Unavailable |
| #2 | 27-79583 | GASKET (2 required per assembly) (DESIGN I) |
  |
27-79583 - Cylinder Head Gasket [ More info ] Unavailable |
|
  |
|
27-79583 1 - Gasket [ More info ]
|
| #3 | 10-66863 | SCREW (2-1/2") (24 required per assembly) (DESIGN I) |
  |
10-66863 - Screw, Priced Individually [ More info ] Unavailable |
|
  |
|
10-66863 1 - Screw [ More info ]
|
| #4 | 1026-7270A 1 | COVER (2 required per assembly) (DESIGN I) |
  |
|
1026-7270A 1 - Cover, NLA [ More info ] Unavailable |
| #5 | 27-65788 | GASKET (2 required per assembly) (DESIGN I) |
  |
|
27-65788 - Cylinder Cover Gasket [ More info ]
|
| #6 | 10-35386 | SCREW, (.312-18 x 1.00) (26 required per assembly) (DESIGN I) |
  |
|
10-35386 - Screw - Priced Individually [ More info ]
|
| #6 | 10-74824 | SCREW, (.312-18 x 1.250) (26 required per assembly) (DESIGN I) |
  |
|
10-74824 - Screw - Priced Individually [ More info ]
|
| #7 | 54-47483 | J CLIP (2 required per assembly) (DESIGN I) |
  |
|
54-47483 - J Clip [ More info ]
|
| #8 | 75692 | THERMOSTAT (2 required per assembly) (DESIGN I) |
  |
|
75692 - Thermostat, 147 Degrees [ More info ]
|
  |
|
18-3553 - Thermostat, 143 Degrees, 75692 [ More info ]
|
  |
|
75-02658 - OMC Thermostat Kit, 5005440 (dual) [ More info ]
|
  |
|
75-00456-IR - Thermostat Kit, 75692Q03,T2,Q2 [ More info ]
|
  |
|
75-00403 - Thermostat, 5005440 [ More info ]
|
| #9 | 27-62386 | GASKET (2 required per assembly) (DESIGN I) |
  |
27-62386 - Thermostat Gasket [ More info ] Unavailable |
|
  |
|
27-62386001 - Thermostat Gasket [ More info ]
|
  |
|
27-8M0204714 - Thermostat Gasket, Priced Individually [ More info ]
|
  |
|
18-0182-9 - Gasket 27-62386 2-Pack [ More info ]
|
| #10 | 90390A 1 | COVER KIT (2 required per assembly) (DESIGN I) |
  |
|
90390A 1 - Thermostat Cover Kit [ More info ]
|
| #11 | 10-66023 | SCREW (2 required per assembly) (2"-FLANGED HEAD)(DESIGN I) |
  |
|
10-66023 - Screw, NLA [ More info ] Unavailable |
| #11 | 10-815549 | SCREW, .312-18 x 2.00 (2 required per assembly) (DESIGN I) |
  |
|
10-815549 - Screw [ More info ]
|
| #12 | 22-68728 | FITTING (1 required per assembly) (DESIGN I) |
  |
|
22-68728 - Fitting [ More info ] Unavailable |
| #13 | 32-77653 77 | HOSE, (24.500 Inches Bulk) (1 required per assembly) (DESIGN I) |
  |
32-77653 77 - Hose - 24.5 Inch [ More info ] Unavailable |
|
  |
32-77653 78 - Hose-25 INCH [ More info ] Unavailable |
|
  |
|
32-77653101 - Hose -48 Inch [ More info ]
|
| #14 | 22-68727 | FITTING, (.250-18 Brass) (2 required per assembly) (DESIGN I) |
  |
|
22-68727 - Fitting [ More info ]
|
  |
|
22-68727 1 - Fitting [ More info ]
|
| #15 | 61990 | CABLE TIE, (14.00 Inches) (AR required per assembly) (DESIGN I) |
  |
|
61990 - Tie Strap - Priced Individually [ More info ]
|
| #16 | 78799 | TEMPERATURE SENDER, (19.50 Inch) (1 required per assembly) (DESIGN I) |
  |
|
78799 - Temperature Sender [ More info ]
|
| #18 | 71162 | COVER (1 required per assembly) (DESIGN I) |
  |
|
|
| #19 | 45915 | TERMINAL BLOCK (1 required per assembly) (DESIGN I) |
  |
|
86-45915 - Terminal Block [ More info ]
|
| #20 | 10-69079 | SCREW, (#10-16 x .440) (2 required per assembly) (DESIGN I) |
  |
|
10-69079 - Screw [ More info ]
|
| #21 | 15221A 2 | CYLINDER HEAD (1 required per assembly) (1 Piece Design)(DESIGN II) |
  |
15221A 2 - Cylinder Head Kit [ More info ] Unavailable |
|
  |
15221A 4 - HEAD KIT-CYLINDER [ More info ] Unavailable |
|
  |
|
15221A 5 - Cylinder Head, One Head Only [ More info ]
|
| #22 | 13715 | RETAINER (2 required per assembly) (Use With Ref. #21)(DESIGN II) |
  |
13715 - Retainer [ More info ] Unavailable |
|
  |
|
13715 1 - Retainer [ More info ]
|
| #23 | 10-98257 | SCREW, (.312-18 x .500) (2 required per assembly) (Use With Ref. #21)(DESIGN II) |
  |
|
10-98257 - Screw [ More info ]
|
| #24 | 13536A 7 | TEMPERATURE SENSOR (1 required per assembly) (Use With Ref #21)(DESIGN II) |
  |
|
13536A 7 - Temperature Sensor Assembly [ More info ]
|
| #25 | 96532 | CYLINDER HEAD (2 required per assembly) (2 Piece Design)(DESIGN II) |
  |
|
96532 - Cylinder Head, NLA [ More info ]
|
| #26 | 27-96278 | GASKET (2 required per assembly) (2 Piece Design)(DESIGN II) |
  |
|
27-96278 - Cylinder Cover Gasket [ More info ]
|
  |
|
18-2808-9 - Gasket 27-96278 2-Pack [ More info ]
|

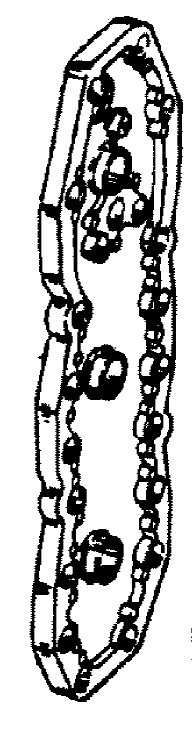

| #27 | 96283T | COVER (2 required per assembly) (2 Piece Design)(DESIGN II) |
  |
96283T - Cover [ More info ] Unavailable |
|
  |
|
96283 - Cover, NLA [ More info ] Unavailable |
| #29 | 27-41246 1 | GASKET (2 required per assembly) (DESIGN II) |
  |
27-41246 1 - Gasket [ More info ] Unavailable |
|
  |
|
27-41247T01 - Head Gasket [ More info ]
|
  |
|
18-3862 - Head Gasket 27-41247T01 [ More info ]
|
| #30 | 10-98534 | SCREW, (.375-16 X 2.30) (24 required per assembly) (DESIGN II) |
  |
|
10-98534 - Screw [ More info ] Unavailable |
| #31 | 12-25909 | WASHER, (.406 x .812 x .065) (24 required per assembly) (DESIGN II) |
  |
|
12-25909 - Washer (.406 X .812 X .065) [ More info ]
|
| #39 | 54-816311 | CABLE TIE, (8.00 Inches) (AR required per assembly) (DESIGN II) |
  |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #40 | 97465 | TEMPERATURE SENDER (1 required per assembly) (DESIGN II) |
  |
|
97465 - Temperature Sender [ More info ]
|
| #41 | 96282 | COVER (1 required per assembly) (Not Used With Ref. #21)(DESIGN II) |
  |
|
96282 - Cover, NLA [ More info ] Unavailable |
| #42 | 18753 1 | TEMPERATURES SENDER (1 required per assembly) (OYSTER) |
  |
|
18753 1 - Temperature Sender, NLA [ More info ] Unavailable |
| #43 | 84-88824A 8 | CABLE (1 required per assembly) (OYSTER) |
  |
|
84-88824A 8 - Cable, NLA [ More info ]
|
