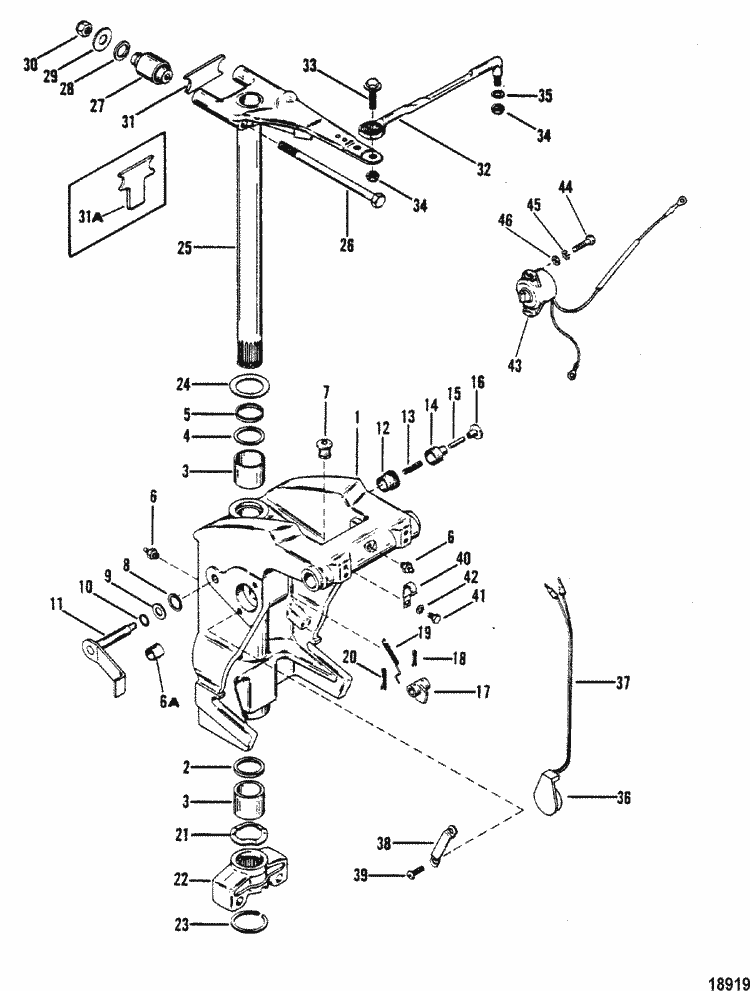

Parts for Mariner V-150 Swivel Bracket & Steering Arm
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-90484A88 | GASKET SET (1 required per assembly) SN# ME-6042946/MA-6038681 & Up |
  |
|
27-90484A88 - Gasket Set [ More info ] Unavailable |
| # | 27-79583A81 | GASKET SET (1 required per assembly) SN# 5866777 THRU 6042945 |
  |
|
27-79583A81 - Engine Gasket Set [ More info ] Unavailable |
| # | NLA | No Longer Available, Gasket Set (1 required per assembly) (Service Bulletin 81-8) SN# ME-5866776/MA-6038680 & Below |
  |
|
NLA - No Longer Availab [ More info ] Unavailable |
| #1 | 1491-9225A 2 | SWIVEL BRACKET ASSEMBLY (1 required per assembly) (Black) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
1491-9225A 2 - Swivel Bracket [ More info ] Unavailable |
|
  |
|
1491-9225A 3 - Swivel Bracket,NLA [ More info ] Unavailable |
| #1 | 1491-9225A 4 | SWIVEL BRACKET ASSEMBLY (1 required per assembly) (Gray) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
1491-9225A 4 - Swivel Bracket,NLA [ More info ] Unavailable |
| #1 | 1499-8710A20 | SWIVEL BRACKET ASSEMBLY (1 required per assembly) (Black) SN# 6616991 & Up |
  |
1499-8710A20 - Swivel Bracket-BL [ More info ] Unavailable |
|
  |
1499-8710T20 - Swivel Bracket, Black [ More info ] Unavailable |
|
  |
|
14998M0102865 - Swivel Bracket, Black [ More info ]
|
| #1 | 1499-8710A18 | SWIVEL BRACKET ASSEMBLY (1 required per assembly) (Gray) SN# 6616991 & Up |
  |
1499-8710A18 - Swivel Bracket ASSY [ More info ] Unavailable |
|
  |
1499-8710A21 - Swivel Bracket-GR [ More info ] Unavailable |
|
  |
|
1499-8710T21 - Ord 1499-8710T20, NLA [ More info ] Unavailable |
| #2 | 26-87735 | SEAL, Oil (1 required per assembly) |
  |
|
|
| #3 | 23-67669 | BUSHING (2 required per assembly) |
  |
23-67669 - Bushing [ More info ] Unavailable |
|
  |
|
23-818764 - Bushing [ More info ]
|
| #4 | 25-33466 | O-RING (1 required per assembly) |
  |
|
25-33466 - O-ring (1.362 I.d.) [ More info ]
|
  |
|
18-7164-9 - O-Ring (PK5) 25-33466 [ More info ]
|
| #5 | 23-67668 | SPACER (1 required per assembly) |
  |
|
23-67668 - Spacer - Swivel Bracket - Upper [ More info ] Unavailable |
| #6 | 22-74036 | FITTING, Grease (4 required per assembly) |
  |
22-74036 - Fitting - Priced Individually [ More info ] Unavailable |
|
  |
|
228M0169589 - Fitting Note: Priced Individually [ More info ]
|
| #6A | 23-99608 | BUSHING (1 required per assembly) SN# 6616991 & Up |
  |
23-99608 - Bushing [ More info ] Unavailable |
|
  |
|
23-821207 - Bushing [ More info ]
|
| #7 | 25-88341 | GROMMET (2 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
25-88341 - Grommet, Swivel Bracket,NLA [ More info ]
|
| #8 | 26-85023 | SEAL, Oil (2 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
|
| #9 | 12-87161 | WASHER (2 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
12-87161 - Washer, Tilt Lock Lever [ More info ]
|
| #10 | 25-48171 | O-RING, (.364. x .070) (2 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
25-48171 - O-Ring - Priced Individually [ More info ]
|
  |
|
18-7168-9 - O-Ring (PK5) 202893, 25-48171 [ More info ]
|
| #11 | 85030A 2 | LEVER ASSEMBLY, Tilt Lock (1 required per assembly) (Port) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
85030A 2 - Lever Assembly - Port [ More info ]
|
| #11 | 85028A 2 | LEVER ASSEMBLY, Tilt Lock (1 required per assembly) (Starboard) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
85028A 2 - Lever Assembly - Stbd, NLA [ More info ]
|
| #12 | 23-86600 | BUSHING (1 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
23-86600 - Bushing [ More info ]
|
| #13 | 24-85367 | SPRING (1 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
24-85367 - Spring [ More info ]
|
| #14 | 41052 | PLUNGER (1 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
|
| #15 | 16-88876 | STUD (1 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
|
| #16 | 86603 | KNOB (1 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
|
| #17 | 86475 1 | COUPLING (1 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
86475 1 - Coupling [ More info ]
|
| #18 | 18-87200 | COTTER PIN (2 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
18-87200 - Cotter Pin - Priced Individually [ More info ] Unavailable |
| #19 | 24-88049 | SPRING (1 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
24-88049 - Spring, Tension - Coupling [ More info ]
|
| #20 | 18-93861 | COTTER PIN (1 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
18-93861 - Cotter Pin [ More info ]
|
| #21 | 13-78854 | WAVE WASHER (1 required per assembly) |
  |
|
13-78854 - Wave Washer [ More info ]
|
| #22 | 86580A 1 | YOKE ASSEMBLY, Bottom (1 required per assembly) (BLACK) |
  |
|
86580A 1 - ORD 878182T [ More info ] Unavailable |
  |
|
878182T01 - Yoke -bottom [ More info ]
|
| #22 | 86580A 2 | YOKE ASSEMBLY, Bottom (1 required per assembly) (GRAY) |
  |
86580A 2 - Yoke Assembly -bot-gra [ More info ] Unavailable |
|
| #23 | 53-67684 | RING, Retaining (1 required per assembly) |
  |
|
53-67684 - Ring - Retaining [ More info ]
|
| #24 | 12-67670 | WASHER (1 required per assembly) |
  |
|
12-67670 - Washer, Thrust, Swivel Bracket, NLA [ More info ]
|
| #25 | 17-67706A46 | SWIVEL PIN ASSEMBLY (1 required per assembly) (Black) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
17-67706A46 - SWIVEL PIN ASSY [ More info ] Unavailable |
|
  |
17-840309A 1 - Swivel Pin Kit - Black [ More info ] Unavailable |
|
  |
|
17-840792A 1 - SWIVEL PIN KT-BLK,NLA [ More info ] Unavailable |
| #25 | 17-67706A47 | SWIVEL PIN ASSEMBLY (1 required per assembly) (Gray) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
17-67706A47 - SWIVEL PIN ASSY [ More info ] Unavailable |
|
  |
17-840309A 2 - SWIVEL PIN KT-GR [ More info ] Unavailable |
|
  |
17-840792A 2 - SWIVEL PIN KIT-GR [ More info ] Unavailable |
|
| #25 | 17-67706A35 | SWIVEL PIN ASSEMBLY (1 required per assembly) (Black) SN# 6616991 & Up |
  |
17-67706A35 - SWIVEL PIN [ More info ] Unavailable |
|
  |
|
17-67706A55 - ORD 17-826432A 2 [ More info ] Unavailable |
| #25 | 17-67706A36 | SWIVEL PIN ASSEMBLY (1 required per assembly) (Gray) SN# 6616991 & Up |
  |
17-67706A36 - SWIVEL PIN [ More info ] Unavailable |
|
  |
17-67706A56 - SWIVEL PIN ASY-GR [ More info ] Unavailable |
|
| #26 | 10-78689 | SCREW, (.437-20 x 7.50) (2 required per assembly) |
  |
10-78689 - BOLT [ More info ] Unavailable |
|
  |
10-8M0000491 - Screw [ More info ] Unavailable |
|
  |
|
108M0176309 - SCREW [ More info ]
|
| #27 | 78687 | MOUNT (UPPER) (2 required per assembly) |
  |
78687 - Mount [ More info ] Unavailable |
|
  |
|
78687T - Mount [ More info ] Unavailable |
  |
|
|
| #28 | 12-66921 | WASHER (2 required per assembly) |
  |
|
12-66921 - Washer, Upper Mount Bolt [ More info ]
|
| #29 | 12-814432 | WASHER (2 required per assembly) |
  |
12-814432 - Washer, Upper Mount Bolt [ More info ] Unavailable |
|
  |
|
12-78688 - Washer, Upper Mount Bolt [ More info ]
|
| #30 | 11-34933 | NUT, (.437-20) Stainless Steel (2 required per assembly) |
  |
|
11-34933 - Nut (7/16-20) [ More info ]
|
  |
|
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|
11-00118 - Nut, Sold Individually [ More info ]
|
| #31 | 67754 | BUMPER (1 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
67754 - Bumper, NLA [ More info ] Unavailable |
| #31A | 88882 | BUMPER, Top Yoke (1 required per assembly) SN# 6616991 & Up |
  |
|
|
| #32 | 92876A 1 | LINK ASSEMBLY, Steering (1 required per assembly) |
  |
92876A 1 - Steering Link Kit [ More info ] Unavailable |
|
  |
92876A10 - Steering Link Kit [ More info ] Unavailable |
|
  |
|
92876A12 - Link Rod Assembly [ More info ] Unavailable |
| #33 | 10-14000 | SCREW, (.375-24 x 1.25) (1 required per assembly) |
  |
|
10-14000 - Screw [ More info ]
|
  |
|
10-849838 - Screw [ More info ]
|
| #34 | 11-34863 | NUT, (.375-24) (2 required per assembly) |
  |
11-34863 - Nut (3/8-24) [ More info ] Unavailable |
|
  |
11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable |
|
  |
11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable |
|
  |
|
118M0204726 - NUT-BRASS Note: Priced Individually [ More info ]
|
| #35 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel (2 required per assembly) |
  |
|
12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ]
|
| #36 | 86485A 5 | SENDER ASSEMBLY, Trim (1 required per assembly) (Female Terminals) SN# ME-5503247/MA-5600162 & Up |
  |
|
86485A 5 - Sender Assembly, NLA [ More info ] Unavailable |
| #36 | 86485A 6 | TILT SWITCH ASSEMBLY (1 required per assembly) (Male Terminals) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
86485A 6 - Switch Assembly, NLA [ More info ]
|
| #37 | 84-65017A15 | HARNESS ASSEMBLY (1 required per assembly) (Female Terminals) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
84-65017A15 - Trim Harness, NLA [ More info ] Unavailable |
| #37 | 84-65017A14 | HARNESS ASSEMBLY (1 required per assembly) (Male Terminals) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
84-65017A14 - Harness Assembly [ More info ]
|
| #38 | 88342 | STRAP (2 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
88342 - Strap, NLA [ More info ]
|
| #39 | 10-87926 | SCREW, (#10-32 x .500) (4 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
10-87926 - Screw - Priced Individually [ More info ]
|
| #40 | 54-54457 | J CLIP (1 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
54-54457 - J Clip [ More info ]
|
| #41 | 10-98256 | SCREW, (.250-28 x .500) (1 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
10-98256 - Screw [ More info ]
|
| #42 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel (1 required per assembly) SN# ME-5503247/MA-5600162 THRU ME-6616990/MA-6616990 |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #43 | 95164A 9 | SENDER ASSEMBLY, Trim (1 required per assembly) SN# 6616991 & Up |
  |
|
95164A 9 - Trim Sender Kit [ More info ]
|
  |
821180A 3 - Trim Sender Kit [ More info ] Unavailable |
|
  |
821180A 6 - Sender Assembly [ More info ] Unavailable |
|
  |
|
8M0074846 - Trim Sender [ More info ] Unavailable |
  |
|
8M0098273 - Trim Sender - [ More info ]
|
| #44 | 10-56682 | SCREW, (#10-24 x .750) (2 required per assembly) SN# 6616991 & Up |
  |
10-56682 - Screw [ More info ] Unavailable |
|
  |
|
10-852368 - Screw [ More info ]
|
| #45 | 13-26996 | LOCKWASHER, (#10) Stainless Steel (2 required per assembly) SN# 6616991 & Up |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #46 | 12-89302 | WASHER, (.203 x .406 x .040) (2 required per assembly) SN# 6616991 & Up |
  |
|
12-89302 - Washer (.203 X .406 X .040) [ More info ]
|
