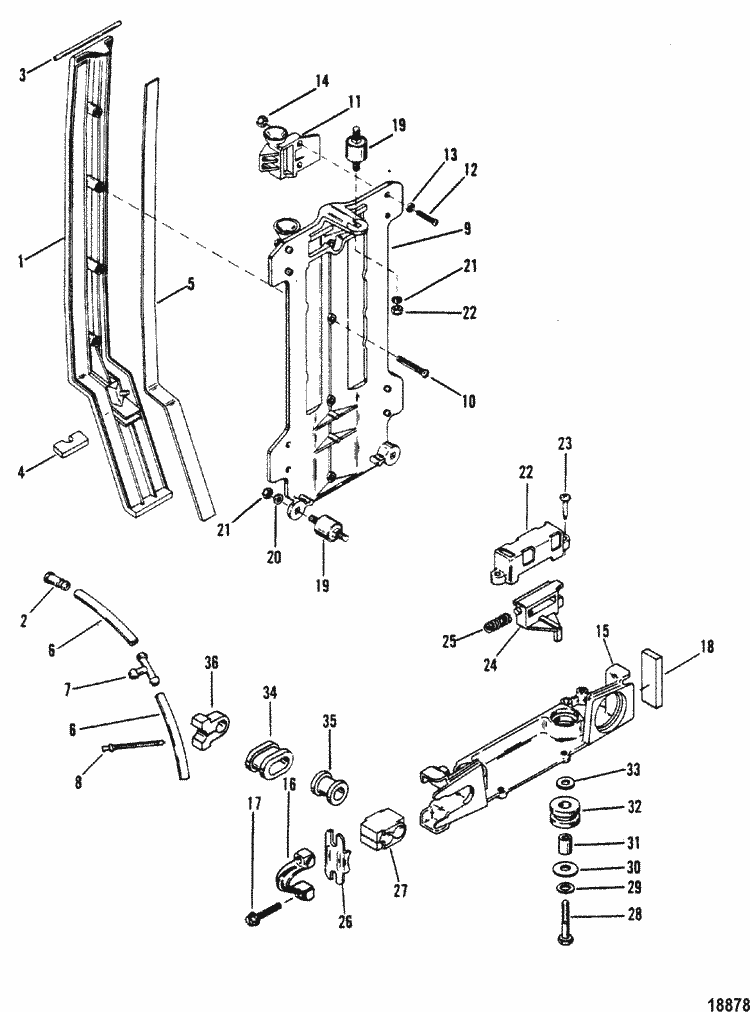

Parts for Mariner V-150 Cowl Mounting Brackets
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 76258A 2 | BRACKET, REAR COWL (1 required per assembly) (BLACK) |
  |
|
76258A 2 - Bracket, NLA [ More info ] Unavailable |
| #1 | 76258A 3 | BRACKET, REAR COWL (1 required per assembly) (GRAY) |
  |
|
76258A 3 - Bracket, NLA [ More info ] Unavailable |
| #2 | 22-76256 | NOZZLE (1 required per assembly) |
  |
|
22-76256 - Fitting [ More info ]
|
| #3 | 67984 | SEAL (1 required per assembly) |
  |
|
67984 - Seal, NLA [ More info ] Unavailable |
| #4 | 67228 | SEAL (1 required per assembly) |
  |
|
67228 - Seal, NLA [ More info ] Unavailable |
| #5 | 67999 | SEAL (2 required per assembly) |
  |
|
67999 - Seal, Read Cowl Bracket to Cowl, NLA [ More info ] Unavailable |
| #6 | 32-99127109 | LINE, (57.00 Inches Bulk), TELL TALE (2 required per assembly) |
  |
32-99127109 - TUBING-57 INCH [ More info ] Unavailable |
|
  |
32-830756109 - Hose, 57 Inch [ More info ] Unavailable |
|
  |
32-8M0047428 - Hose -57 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #7 | 22-90824 | TEE (1 required per assembly) SN# ME-586677/MA-5940581 & Up |
  |
|
22-90824 - Fitting [ More info ]
|
  |
|
22-90824001 - Tee Fitting [ More info ]
|
| #8 | 61990 | TIE STRAP, (14.00 Inches) (2 required per assembly) |
  |
|
61990 - Tie Strap - Priced Individually [ More info ]
|
| #9 | 86386A 1 | BRACKET ASSEMBLY (1 required per assembly) |
  |
|
86386A 1 - Bracket, NLA [ More info ] Unavailable |
| #10 | 10-66687 | SCREW, (#10-32 x 1.50) (4 required per assembly) |
  |
|
10-66687 - Screw - Priced Individually [ More info ]
|
| #11 | 85651 | HOUSING (2 required per assembly) (PORT) |
  |
|
85651 - Housing, NLA [ More info ]
|
| #11 | 85650 | HOUSING (2 required per assembly) (STARBOARD) |
  |
|
85650 - Housing, NLA [ More info ]
|
| #12 | 10-31294 | SCREW (1") (8 required per assembly) |
  |
10-31294 - Screw, NLA [ More info ] Unavailable |
|
  |
|
10-64278 - Screw, NLA [ More info ]
|
| #13 | 12-20583 | WASHER (8 required per assembly) |
  |
|
12-20583 - Washer - Priced Individually [ More info ]
|
| #14 | 11-20361 | NUT, (.250-28) (8 required per assembly) |
  |
|
|
  |
|
11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
|
| #15 | 88623A 1 | BRACKET (1 required per assembly) SN# ME-5866776/MA-5940580 & Below |
  |
|
88623A 1 - Bracket Assembly, NLA [ More info ]
|
| #15 | 92009T | BRACKET (1 required per assembly) SN# ME-5866777/MA-5940581 THRU ME-6443212/MA-6443817 |
  |
|
92009T - Bracket, NLA [ More info ] Unavailable |
| #15 | 99424 | BRACKET (1 required per assembly) SN# ME-6443213/MA-6443818 & Up |
  |
|
99424 - Bracket, NLA [ More info ] Unavailable |
| #16 | 88621 | RETAINER (1 required per assembly) SN# 6616990 & Below |
  |
|
88621 - Retainer, NLA [ More info ]
|
| #16 | 99447T | RETAINER (1 required per assembly) SN# 6616991 & Up |
  |
99447T - Retainer [ More info ] Unavailable |
|
  |
|
99447 - Cable Retainer, NLA [ More info ] Unavailable |
| #17 | 10-89900 | SCREW, (#10-24 x 1.00) (2 required per assembly) |
  |
|
10-89900 - Screw, NLA [ More info ]
|
| #18 | 67260 | SEAL (1 required per assembly) |
  |
|
67260 - Seal, NLA [ More info ]
|
| #19 | 90435 | MOUNT (3 required per assembly) |
  |
|
90435 - Rubber Mount [ More info ]
|
| #20 | 12-21249 | WASHER (6 required per assembly) |
  |
|
12-21249 - Washer - Priced Individually [ More info ]
|
| #22 | 67241 | HOUSING (1 required per assembly) |
  |
|
67241 - Cowl Latch Housing [ More info ]
|
| #23 | 10-92051 | SCREW, (10-16 x .75) (2 required per assembly) |
  |
|
10-92051 - Screw [ More info ]
|
| #24 | 76264 | LATCH (1 required per assembly) SN# ME-6443212/MA-6443817 & Below |
  |
|
76264 - Latch, NLA [ More info ]
|
| #24 | 87608 | LATCH, Cowl (1 required per assembly) SN# ME-6443213/MA-6443818 & Up |
  |
|
87608 - Cowl Latch [ More info ]
|
| #25 | 24-60295 | SPRING (1 required per assembly) |
  |
|
24-60295 - Spring [ More info ] Unavailable |
| #26 | 88622 | PLATE (1 required per assembly) SN# ME-5866776/MA-5940580 & Below |
  |
|
|
| #27 | 99391 | RETAINER (1 required per assembly) SN# ME-6443213/MA-6443818 & Up |
  |
|
99391 - Retainer, NLA [ More info ]
|
| #28 | 10-69067 | SCREW, (.250-20 x 1.375) (2 required per assembly) SN# ME-6443213/MA-6443818 & Up |
  |
|
10-69067 - Screw - Priced Individually [ More info ]
|
| #29 | 12-20346 | WASHER (SMALL) (4 required per assembly) SN# ME-6443213/MA-6443818 & Up |
  |
12-20346 - Washer, 3/4 O.D. [ More info ] Unavailable |
|
  |
|
12-69057 - Washer, (.281 X .734 X .063) [ More info ]
|
| #30 | 12-57427 | WASHER (LARGE) (4 required per assembly) SN# ME-6443213/MA-6443818 & Up |
  |
|
12-57427 - Washer [ More info ]
|
  |
|
12-35280 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ]
|
| #31 | 23-88180 | BUSHING (2 required per assembly) SN# ME-6443213/MA-6443818 & Up |
  |
|
23-88180 - Bushing, NLA [ More info ] Unavailable |
| #32 | 25-88033 | GROMMET (2 required per assembly) SN# ME-6443213/MA-6443818 & Up |
  |
|
25-88033 - Grommet, Bracket,NLA [ More info ]
|
| #33 | 12-28927 | WASHER (2 required per assembly) SN# ME-6443213/MA-6443818 & Up |
  |
|
12-28927 - Washer - Priced Individually [ More info ]
|
  |
|
12-26907 - Washer (5/8 In. O.d.) NLA [ More info ]
|
| #34 | 25-67272 | GROMMET (2 required per assembly) SN# ME-6443212/MA-6443817 & Below |
  |
|
25-67272 - Grommet, NLA [ More info ] Unavailable |
| #35 | 25-87743 | GROMMET (1 required per assembly) SN# ME-5866776/MA-5940580 & Below |
  |
|
25-87743 - Grommet, NLA [ More info ] Unavailable |
| #36 | 67739 | SEAL (1 required per assembly) SN# ME-5432021 & Below |
  |
|
67739 - Seal, NLA [ More info ] Unavailable |
