Parts for Mariner V-150 Marathon Oil Injection Components

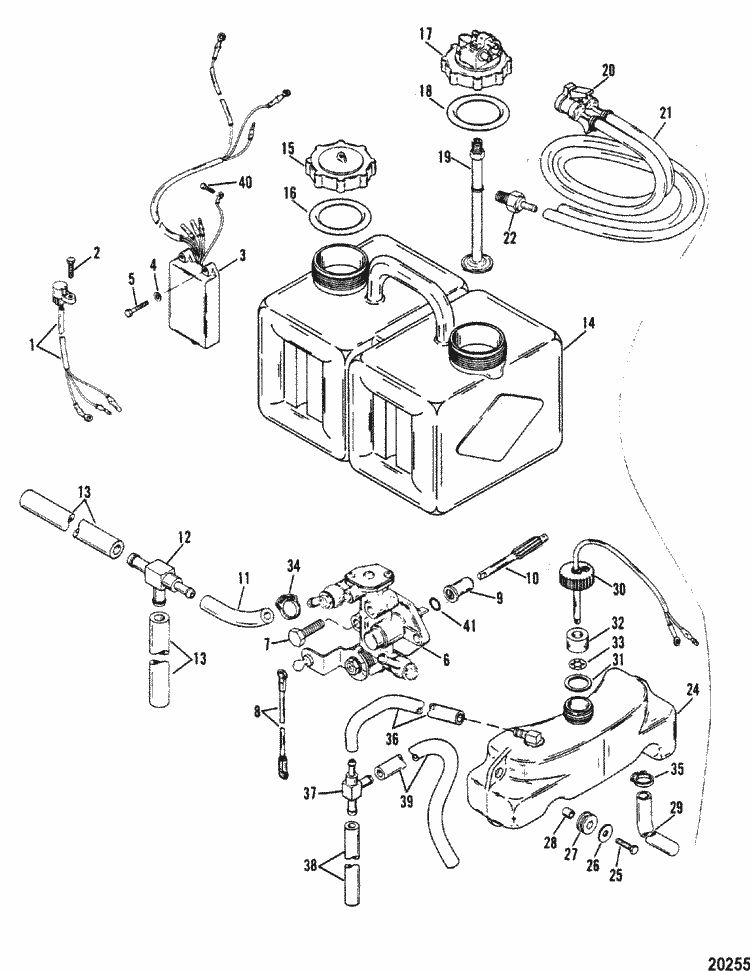

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-90484A88 | GASKET SET (1 required per assembly) SN# ME-6042946/MA-6038681 & Up |
  |
|
27-90484A88 - Gasket Set [ More info ] Unavailable |
| #1 | 12430A 4 | SENSOR ASSEMBLY (1 required per assembly) |
  |
|
12430A 4 - Sensor Kit [ More info ]
|
| #2 | 10-48409 | SCREW, (#10-16 x .625) Stainless Steel (1 required per assembly) |
  |
|
10-48409 - Screw - Priced Individually [ More info ]
|
| #3 | 41470A11 | WARNING MODULE ASSEMBLY (1 required per assembly) |
  |
41470A11 - Module [ More info ] Unavailable |
|
  |
41470A21 - WARNING MODULE [ More info ] Unavailable |
|
  |
|
41470A27 - Oil Warning Module [ More info ]
|
| #4 | 12-38833 | WASHER (3 required per assembly) |
  |
|
12-38833 - Washer [ More info ]
|
| #5 | 10-69020 | SCREW, (#10-32 x .875) (3 required per assembly) |
  |
10-69020 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
|
10-69020 1 - Screw [ More info ]
|
| #6 | 815698 | PUMP, Oil (1 required per assembly) |
  |
815698 - Oil Pump [ More info ] Unavailable |
|
  |
|
815698T - Oil Pump Assembly [ More info ]
|
| #7 | 10-32228 | SCREW, (#10-32 x .625) (1 required per assembly) |
  |
|
10-32228 - Screw - Priced Individually [ More info ]
|
| #7 | 10-41507 | SCREW, (#10-32 x 1.120) (1 required per assembly) |
  |
|
10-41507 - Screw [ More info ]
|
| #8 | 19385 6 | LINK (1 required per assembly) |
  |
|
19385 6 - Link, NLA [ More info ] Unavailable |
| #9 | 23-41429A 2 | BEARING ASSEMBLY (1 required per assembly) |
  |
|
23-41429A 2 - Bearing - Drive Gear [ More info ]
|
| #10 | 43-12726 | GEAR, Driven (1 required per assembly) |
  |
43-12726 - Driven Gear [ More info ] Unavailable |
|
  |
|
43-14563 - Driven Gear [ More info ]
|
| #11 | 32-43016 25 | TUBING, (8.00 Inches) (1 required per assembly) |
  |
32-43016 25 - TUBING-10 INCH [ More info ] Unavailable |
|
  |
32-823813 25 - Tubing, 10 Inch [ More info ] Unavailable |
|
  |
32-823813 29 - TUBING-12 INCH [ More info ] Unavailable |
|
  |
|
32-823813 35 - Tubing - 15 Inch [ More info ]
|
| #12 | 22-42425 | TEE (2 required per assembly) |
  |
|
22-42425 - Fitting 5/16 Inch [ More info ] Unavailable |
| #13 | 32-99127109 | LINE, (57.00 Inches Bulk) (3 required per assembly) |
  |
32-99127109 - TUBING-57 INCH [ More info ] Unavailable |
|
  |
32-830756109 - Hose, 57 Inch [ More info ] Unavailable |
|
  |
32-8M0047428 - Hose -57 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #14 | 1257-8742 1 | TANK (1 required per assembly) |
  |
|
1257-8742 1 - Oil Reservoir [ More info ]
|
| #15 | 36-43298A 2 | CAP ASSEMBLY (1 required per assembly) |
  |
|
36-43298A 2 - Cap Assembly [ More info ]
|
| #16 | 25-11332 | O-RING, (2.225 x .210) (1 required per assembly) (NEW DESIGN) |
  |
|
25-11332 - O-ring, (2.225 X .210) [ More info ]
|
| #16 | 27-11009 | GASKET (1 required per assembly) (OLD DESIGN) |
  |
|
27-11009 - Inner Exhaust Gasket [ More info ]
|
| #17 | 43295A 5 | HOUSING ASSEMBLY, Adaptor (1 required per assembly) |
  |
|
43295A 5 - Housing Assembly - Adaptor [ More info ]
|
  |
|
816190A 4 - Oil Sender Assembly [ More info ]
|
| #19 | 32-99802 | TUBE (1 required per assembly) |
  |
|
32-99802 - Tube Assembly [ More info ]
|
| #20 | NLA | No Longer Available, Quick Disconnect Kit (Order parts separately) (1 required per assembly) |
  |
|
NLA - No Longer Availab [ More info ] Unavailable |
| #21 | 32-99439 | HOSE, (114.00 Inches) (1 required per assembly) |
  |
|
32-99439 - Hose - Oil - 114 Inch [ More info ]
|
| #22 | 21-43278 | FITTING (CRANKCASE) (1 required per assembly) |
  |
21-43278 - Check Valve [ More info ] Unavailable |
|
  |
21-43278 1 - Check Valve [ More info ] Unavailable |
|
  |
21-43278 3 - Check Valve [ More info ] Unavailable |
|
  |
21-878105 - Check Valve [ More info ] Unavailable |
|
  |
|
21-878105 1 - Check Valve [ More info ]
|
| #24 | 99443 3 | RESERVOIR, Oil (1 required per assembly) |
  |
99443 3 - Reservoir-OIL [ More info ] Unavailable |
|
  |
99443 4 - Oil Reservoir [ More info ] Unavailable |
|
  |
99443 5 - Oil Reservoir [ More info ] Unavailable |
|
  |
|
99443 6 - Oil Reservoir [ More info ]
|
| #26 | 12-42118 | WASHER (6 required per assembly) |
  |
|
12-42118 - Washer, Oil Reservoir Screw [ More info ]
|
| #27 | 25-42117 | GROMMET (3 required per assembly) |
  |
|
25-42117 - Grommet, Oil Reservoir Screw [ More info ]
|
| #28 | 23-42116 | BUSHING (3 required per assembly) |
  |
|
23-42116 - Bushing [ More info ]
|
| #29 | 32-43017 36 | TUBING (1 required per assembly) |
  |
32-43017 36 - TUBING [ More info ] Unavailable |
|
  |
32-823814 36 - Tubing-15.5 INCH [ More info ] Unavailable |
|
  |
32-823814 51 - TUBING-23 INCH [ More info ] Unavailable |
|
  |
|
32-823814 55 - Tubing - 25 In - Priced Individually [ More info ]
|
| #30 | 36-43300A 9 | CAP ASSEMBLY (1 required per assembly) |
  |
|
36-43300A 9 - Oil Tank Cap Assembly [ More info ]
|
| #31 | 27-43307 | GASKET (1 required per assembly) |
  |
27-43307 - Reservoir Cap Gasket [ More info ] Unavailable |
|
  |
|
27-43307T - Gasket [ More info ]
|
| #32 | 99022A 1 | FLOAT ASSEMBLY (1 required per assembly) |
  |
|
99022A 1 - Float Assembly [ More info ]
|
| #33 | 11-99265 | PUSH NUT (1 required per assembly) |
  |
|
11-99265 - Push Nut [ More info ]
|
| #34 | 54-41582 1 | CLAMP (SMALL) (2 required per assembly) |
  |
|
54-41582 1 - Clamp [ More info ]
|
| #35 | 54-41582 3 | CLAMP (LARGE) (2 required per assembly) |
  |
|
54-41582 3 - Clamp, NLA [ More info ]
|
| #38 | 32-90729 25 | HOSE (1 required per assembly) |
  |
|
32-90729 25 - Fuel Line [ More info ]
|
| #40 | 10-42813 | SCREW (1 required per assembly) |
  |
|
10-42813 - Screw [ More info ]
|
| #41 | 25-11379 | O-RING (1 required per assembly) |
  |
|
25-11379 - O-ring, Oil Pump [ More info ]
|
