Parts for Mariner K 40 HP Mounting System

Revise Search: All Models > K 40 HP > 6F5K-302372 & Up (Belgium) > Mounting System

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

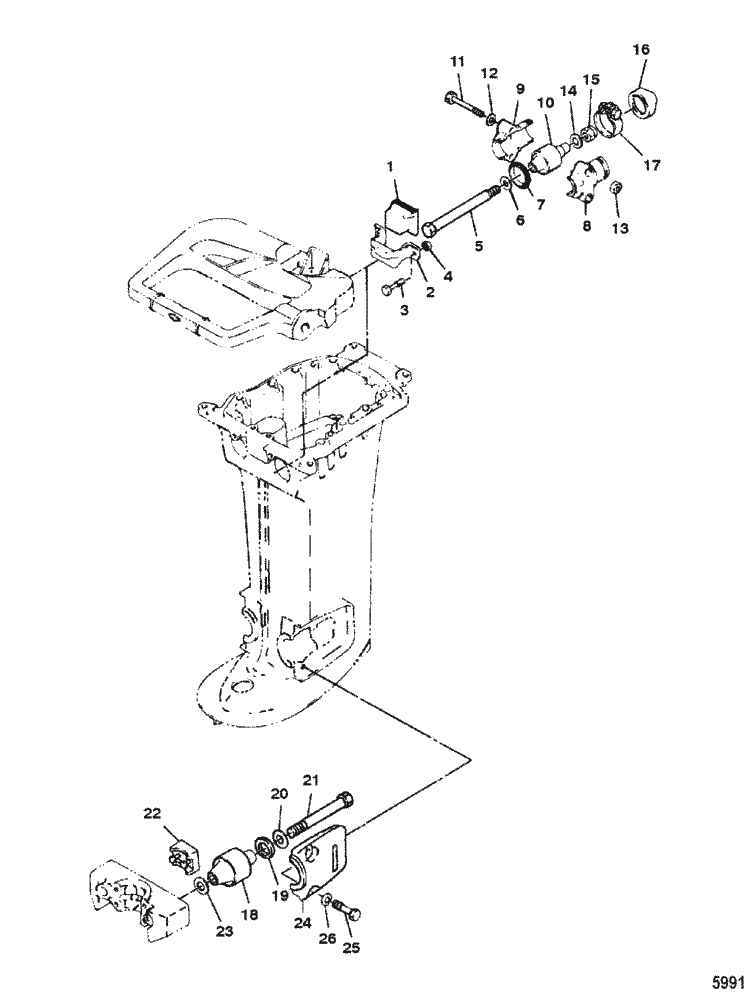

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	83496M	DAMPER (1 required per assembly)
		83496M - Damper, NLA [ More info ] Unavailable
#2	83497M	BRACKET (1 required per assembly)
		83497M - Bracket, NLA [ More info ] $9.99 $8.45 6 In Stock.
#3	10-82405M	BOLT (2 required per assembly)
		10-82405M - Screw, NLA [ More info ] $10.86 $9.19 10+ In Stock.
#4	11-852816 3	NUT (2 required per assembly)
		11-852816 3 - NUT [ More info ] Unavailable
#5	10-83501M	BOLT (2 required per assembly)
		10-83501M - Screw, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#6	12-83911M	WASHER (2 required per assembly)
		12-83911M - Washer, NLA [ More info ] $1.63 $1.39 8 In Stock.
#7	25-83505M	SEAL (2 required per assembly)
		25-83505M - Grommet, NLA [ More info ] Unavailable
#8	83498M	COVER (2 required per assembly)
		83498M - Cover [ More info ] $9.99 $8.45 6 In Stock.
#9	83499M	COVER (2 required per assembly)
		83499M - Cover [ More info ] Unavailable
#10	83910T	MOUNT (2 required per assembly)
		83910T - Mount [ More info ] Unavailable
		8M0121495 - MOUNT [ More info ] $104.49 Available to Order: Shipping delay up to 10 days.
#11	10-83506M	BOLT (4 required per assembly)
		10-83506M - Screw, NLA [ More info ] $2.72 $2.31 2 In Stock.
#12	12-82217M	WASHER (4 required per assembly)
		12-82217M - Washer, NLA [ More info ] $1.67 $1.42 10 In Stock.
#13	11-82382M	NUT (4 required per assembly)
		11-82382M - Nut - Priced Individually [ More info ] $3.90 $3.12 10+ In Stock.
#14	12-83504M	WASHER (2 required per assembly)
		12-83504M - Washer, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#15	11-84295M	NUT (2 required per assembly)
		11-84295M - Nut, Nylon,NLA [ More info ] $7.88 $6.67 10 In Stock.
#16	83912M	CAP (2 required per assembly)
		83912M - Cap, NLA [ More info ] Unavailable
#17	54-827148M	CLAMP (2 required per assembly)
		54-827148M - Clamp [ More info ] Unavailable
#18	83914M	MOUNT DAMPER (2 required per assembly)
		83914M - MOUNT [ More info ] Unavailable
		8M0050006 - Mount [ More info ] $146.99 Available to Order: Shipping delay up to 10 days.
#19	12-81860M	WASHER (2 required per assembly)
		12-81860M - Washer, NLA [ More info ] $3.33 $2.82 10+ In Stock.
#20	12-83915M	WASHER (2 required per assembly)
		12-83915M - Washer, NLA [ More info ] $3.33 $2.82 10+ In Stock.
#21	10-83510M	BOLT (2 required per assembly)
		10-83510M - Screw, NLA [ More info ] $8.70 $7.38 10+ In Stock.
#22	83511M	DAMPER (1 required per assembly)
		83511M - Damper,NLA [ More info ] Unavailable
#23	12-84429M	WASHER (2 required per assembly)
		12-84429M - WASHER,NLA [ More info ] Unavailable
#24	83512M	COVER (2 required per assembly)
		83512M - Cover [ More info ] $14.99 $12.69 6 In Stock.
#25	10-852776 15	BOLT (4 required per assembly)
		10-852776 15 - BOLT,NLA [ More info ] Unavailable
#26	13-82215M	LOCKWASHER (4 required per assembly)
		13-82215M - LockWasher - Priced Individually [ More info ] $0.40 10 In Stock.
