Parts for Mariner K 40 HP C.d.i Magneto

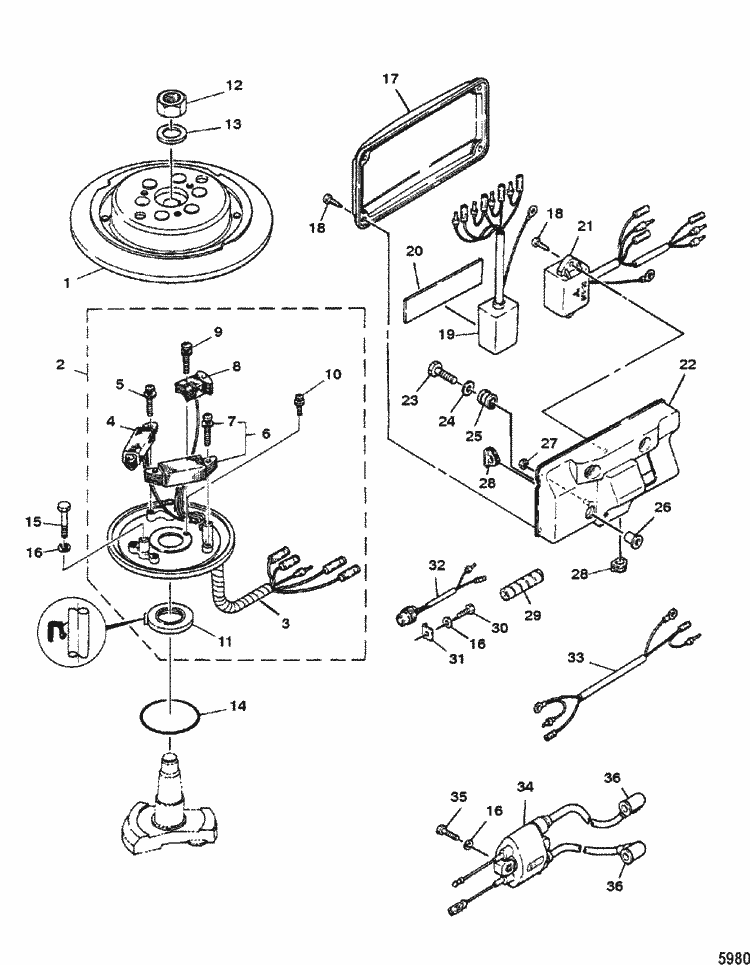

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-11765M | POWERHEAD GASKET SET (1 required per assembly) |
  |
|
27-11765M - GASKET SET Powerh NLA [ More info ] Unavailable |
| #1 | NLA | No Longer Available, Rotor (1 required per assembly) SN# S-003722 & Below |
  |
|
NLA - No Longer Availab [ More info ] Unavailable |
| #1 | 253-827133M | ROTOR (1 required per assembly) SN# S-003723 & Up |
  |
|
253-827133M - Rotor [ More info ] Unavailable |
| #2 | 11723M | BASE ASSEMBLY (1 required per assembly) SN# S-003722 & Below |
  |
|
11723M - Armature Assembly, NLA [ More info ] Unavailable |
| #2 | 827191M | BASE ASSEMBLY (1 required per assembly) SN# S-003723 & Up |
  |
|
827191M - Base Assembly [ More info ] Unavailable |
| #3 | 84-827135M | LEAD WIRE (1 required per assembly) SN# S-003723 & Up |
  |
|
84-827135M - LEAD WIRE NLA [ More info ] Unavailable |
| #4 | 11727T | CHARGE COIL ASSEMBLY (1 required per assembly) SN# S-003722 & Below |
  |
|
11727T - Coil, NLA [ More info ] Unavailable |
| #4 | 827136M | CHARGE COIL ASSEMBLY (1 required per assembly) SN# S-003723 & Up |
  |
|
827136M - Charge Coil, NLA [ More info ] Unavailable |
| #5 | 10-97803M | SCREW (2 required per assembly) |
  |
|
10-97803M - Screw, NLA [ More info ] Unavailable |
| #6 | 11728M | LIGHTING COIL ASSEMBLY (1 required per assembly) SN# S-003722 & Below |
  |
|
11728M - Coil, NLA [ More info ] Unavailable |
| #6 | 827137M | LIGHTING COIL ASSEMBLY (1 required per assembly) SN# S-003723 & Up |
  |
|
827137M - COIL ASSEMBLY Lig NLA [ More info ] Unavailable |
| #8 | 11729M | PULSAR COIL ASSEMBLY (1 required per assembly) SN# S-003722 & Below |
  |
|
11729M - Coil, NLA [ More info ] Unavailable |
| #8 | 827138M | PULSAR COIL ASSEMBLY (1 required per assembly) SN# S-003723 & Up |
  |
|
827138M - Pulser Coil, NLA [ More info ] Unavailable |
| #9 | 10-811177M | SCREW (2 required per assembly) |
  |
|
10-811177M - Screw, NLA [ More info ]
|
| #10 | 10-91699M | SCREW (1 required per assembly) |
  |
|
10-91699M - Screw, NLA [ More info ]
|
| #11 | 26-11731M | OIL SEAL (1 required per assembly) |
  |
|
26-11731M - Seal, NLA [ More info ] Unavailable |
| #12 | 11-81773M | NUT (1 required per assembly) |
  |
|
11-81773M - Nut, Flywheel [ More info ]
|
  |
|
|
| #13 | 12-84436M | WASHER (1 required per assembly) |
  |
12-84436M - Washer, Flywheel [ More info ] Unavailable |
|
  |
|
12-893762 - Washer - Priced Individually [ More info ]
|
| #14 | 25-11732M | O-RING (1 required per assembly) |
  |
|
25-11732M - O-Ring [ More info ]
|
| #15 | 10-827043M | BOLT (3 required per assembly) |
  |
|
10-827043M - Bolt, NLA [ More info ]
|
| #16 | 12-881379 | WASHER (6 required per assembly) |
  |
|
12-881379 - 12-881379 - WASHER [ More info ] Unavailable Replaced by 12-82214M |
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #17 | 11733M | COVER (1 required per assembly) |
  |
|
11733M - Cover, NLA [ More info ] Unavailable |
| #18 | 10-95187M | SCREW (6 required per assembly) |
  |
|
10-95187M - Bolt, NLA [ More info ]
|
| #19 | 11739M | CONTROL UNIT ASSEMBLY (1 required per assembly) |
  |
|
11739M - Control Unit, NLA [ More info ] Unavailable |
| #20 | 11740M | PLATE (1 required per assembly) |
  |
|
11740M - PLATE,NLA [ More info ] Unavailable |
| #21 | 11737T | C.D.I. UNIT ASSEMBLY (1 required per assembly) |
  |
|
11737T - Switch Box [ More info ]
|
| #22 | 11734M | BRACKET (1 required per assembly) |
  |
|
11734M - Bracket, NLA [ More info ]
|
| #23 | 10-852776 15 | BOLT (3 required per assembly) |
  |
|
10-852776 15 - BOLT,NLA [ More info ] Unavailable |
| #24 | 12-82217M | WASHER (3 required per assembly) |
  |
|
12-82217M - Washer, NLA [ More info ]
|
| #25 | 25-11735M | GROMMET (3 required per assembly) |
  |
|
25-11735M - Grommet,NLA [ More info ] Unavailable |
| #26 | 23-11736M | BUSHING (3 required per assembly) |
  |
|
23-11736M - Bushing,NLA [ More info ] Unavailable |
| #27 | 11-852816 3 | NUT (1 required per assembly) |
  |
|
11-852816 3 - NUT [ More info ] Unavailable |
| #28 | 25-95184M | GROMMET (2 required per assembly) |
  |
|
25-95184M - Grommet, NLA [ More info ] Unavailable |
| #29 | 98915M | INSULATOR WRAP (1 required per assembly) |
  |
|
98915M - INSULATOR,NLA [ More info ] Unavailable |
| #30 | 10-826957M | BOLT (1 required per assembly) |
  |
|
10-826957M - Bolt, NLA [ More info ]
|
| #31 | 11743M | PLATE (1 required per assembly) |
  |
|
|
| #32 | 11741M | THERM-SWITCH ASSEMBLY (1 required per assembly) |
  |
|
|
| #33 | 84-11742M | GROUND WIRE (1 required per assembly) |
  |
|
84-11742M - Wire - Ground [ More info ] Unavailable |
| #34 | 95188 2 | IGNITION COIL (1 required per assembly) SN# S-005674 & Up |
  |
|
95188 2 - COIL Ignition NLA [ More info ] Unavailable |
| #34 | 95188T | IGNITION COIL (1 required per assembly) SN# S-005673 & Below |
  |
|
95188T - Igition Coil [ More info ] Unavailable |
| #35 | 10-82405M | BOLT (2 required per assembly) |
  |
|
10-82405M - Screw, NLA [ More info ]
|
| #36 | 85-63709A 1 | BOOT KIT (2 required per assembly) |
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #36 | 85-815119M | SPARK PLUG CAP (Noise Suppressor) (OPT. required per assembly) |
  |
|
85-815119M - Protector [ More info ] Unavailable |
