Parts for Mariner 9.9C HP Remote Control Attachment Kit

Revise Search: All Models > 9.9C HP > 682-552316 & Up (EL) > Remote Control Attachment Kit

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#0-1	43989A 1	R/C ATTACHMENT KIT (SEE NOTE #3) (1 required per assembly)
		43989A 1 - Remote Control Attaching Kit [ More info ] Unavailable
#0-1	43988A 1	R/C ATTACHMENT KIT (SEE NOTE #4) (1 required per assembly)
		43988A 1 - Remote Control Attaching Kit, NLA [ More info ] $44.43 $37.64 3 In Stock.
#1	94629M	BRACKET (1 required per assembly)
		94629M - Bracket, NLA [ More info ] $55.00 $46.58 3 In Stock.
#2	54-84113M	CLAMP (2 required per assembly)
		54-84113M - Clamp, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#3	17-82146M	ROLL PIN (2 required per assembly)
		17-82146M - Pin -roll, NLA [ More info ] Unavailable
#4	10-91725M	BOLT (2 required per assembly)
		10-91725M - BOLT [ More info ] Unavailable
		10-826957M - Bolt, NLA [ More info ] $5.19 10+ In Stock.
#5	12-82214M	WASHER (2 required per assembly)
		12-82214M - Washer - Priced Individually [ More info ] $5.28 10+ In Stock.
#6	84103M	HANDLE (1 required per assembly)
		84103M - Lever [ More info ] Unavailable
#7	23-81946M	BUSHING (2 required per assembly)
		23-81946M - Bushing, NLA [ More info ] $7.00 $5.93 6 In Stock.
#8	84104M	LEVER (1 required per assembly)
		84104M - Lever [ More info ] Unavailable
#9	16-84347M	STUD (1 required per assembly)
		16-84347M - Stud, NLA Z [ More info ] Unavailable
#10	81415M	CAP (1 required per assembly)
		81415M - Cap, NLA [ More info ] Unavailable
#11	11-82390M	NUT (1 required per assembly)
		11-82390M - Nut, (M6) [ More info ] $3.62 $3.06 10+ In Stock.
#12	17-82156M	ROLL PIN (1 required per assembly)
		17-82156M - Pin, NLA [ More info ] $1.88 $1.59 10+ In Stock.
#13	12-81846M	WASHER (1 required per assembly)
		12-81846M - Washer, NLA [ More info ] $1.25 $1.06 10+ In Stock.

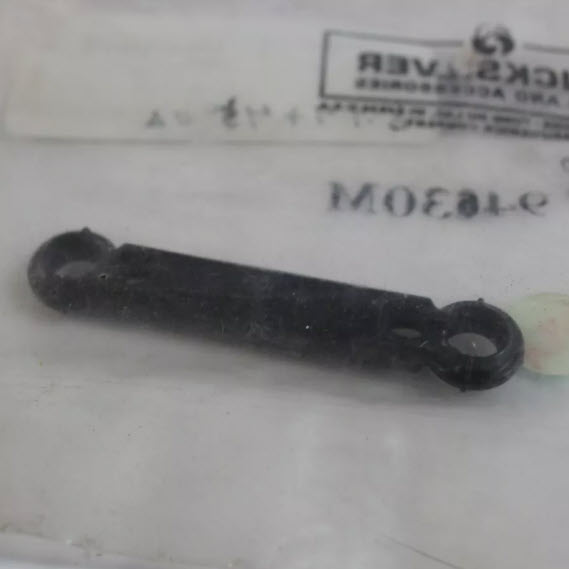

#14	94630M	JOINT (SEE NOTE #3) (1 required per assembly)
		94630M - LINK,NLA [ More info ] Unavailable
#15	94631M	LEVER (SEE NOTE #3) (1 required per assembly)
		94631M - LEVER,NLA [ More info ] Unavailable
#16	23-83310M	COLLAR (1 required per assembly)
		23-83310M - COLLAR,NLA [ More info ] Unavailable
#17	12-81969M	WASHER (1 required per assembly)
		12-81969M - Washer, NLA [ More info ] $1.50 $1.28 4 In Stock.
#18	10-83539M	BOLT (1 required per assembly)
		10-83539M - 10-83539M - BOLT (M6 x 20) [ More info ] Unavailable Replaced by 10-84058M
		10-84058M - Bolt [ More info ] $7.79 1 In Stock.
#19	84101M	LINK (1 required per assembly)
		84101M - Joint, NLA [ More info ] $20.47 10+ In Stock.
#20	11-83763M	NUT (1 required per assembly)
		11-83763M - Nut [ More info ] $5.50 $4.67 1 In Stock.
#21	84100M	JOINT (1 required per assembly)
		84100M - Joint [ More info ] $13.69 Available to Order: Shipping delay up to 10 days.
#22	84109M	CABLE END (THROTTLE) (1 required per assembly)
		84109M - Cable End, NLA [ More info ] Unavailable
#23	84110M	CABLE END (1 required per assembly)
		84110M - Cable END,NLA [ More info ] Unavailable
#24	17-814499M	HOOK (1 required per assembly)
		17-814499M - PIN-ANCHOR,NLA [ More info ] Unavailable
#25	24-83725M	SPRING (1 required per assembly)
		24-83725M - Spring, NLA [ More info ] Unavailable
#26	12-82217M	WASHER (1 required per assembly)
		12-82217M - Washer, NLA [ More info ] $1.67 $1.42 10 In Stock.
#28	84106M	CABLE END (SHIFT) (1 required per assembly)
		84106M - Cable End, NLA [ More info ] $17.78 $15.06 6 In Stock.
#29	84107M	CABLE END (1 required per assembly)
		84107M - Cable End, NLA [ More info ] Unavailable
#30	17-814500M	HOOK (1 required per assembly)
		17-814500M - Anchor Pin, NLA [ More info ] $8.00 $6.78 1 In Stock.
#31	24-83721M	SPRING (1 required per assembly)
		24-83721M - Spring, NLA [ More info ] Unavailable
#34	11670M	STEERING BRKT. (BALL POST TYPE - SEE NOTE #1) (1 required per assembly)
		11670M - Steering Bracket Ball Post Type [ More info ] Unavailable
		11670T - Bracket [ More info ] Unavailable
#34	83698M	STEERING BRKT. (BALL POST TYPE - SEE NOTE #2) (1 required per assembly)
		83698M - Bracket, NLA [ More info ] $29.95 6 In Stock.
#35	10-91636M	BOLT (1 required per assembly)
		10-91636M - Screw, NLA [ More info ] $7.33 10+ In Stock.
#36	13-82218M	LOCKWASHER (1 required per assembly)
		13-82218M - LockWasher - Priced Individually [ More info ] $4.30 10 In Stock.
#37	12-82220M	WASHER (1 required per assembly)
		12-82220M - Washer - Priced Individually [ More info ] Unavailable
#38	11-81785M	NUT (1 required per assembly)
		11-81785M - Nut, Nylon,NLA [ More info ] $6.51 10+ In Stock.
#39	84112M	BRACKET SEE NOTE #4 (1 required per assembly)
		84112M - Bracket, NLA [ More info ] Unavailable
#40	10-84247M	BOLT SEE NOTE #4 (2 required per assembly)
		10-84247M - BOLT Note: Priced Individually [ More info ] Unavailable
#41	84105M	LEVER SEE NOTE #4 (1 required per assembly)
		84105M - LEVER,NLA [ More info ] Unavailable
#42	NLA	JOINT SEE NOTE #4 (1 required per assembly)
		NLA - No Longer Availab [ More info ] Unavailable
#44	16715M	JOINT SEE NOTE #4 (1 required per assembly)
		16715M - Joint [ More info ] $25.60 1 In Stock.
#45	84108M	JOINT SEE NOTE #4 (1 required per assembly)
		84108M - Joint, NLA [ More info ] Unavailable
#46	83727M	STEERING BRACKET (ROPE TYPE) (1 required per assembly)
		83727M - Bracket, NLA [ More info ] Unavailable
