Parts for Mariner 9.9C HP Recoil Starter

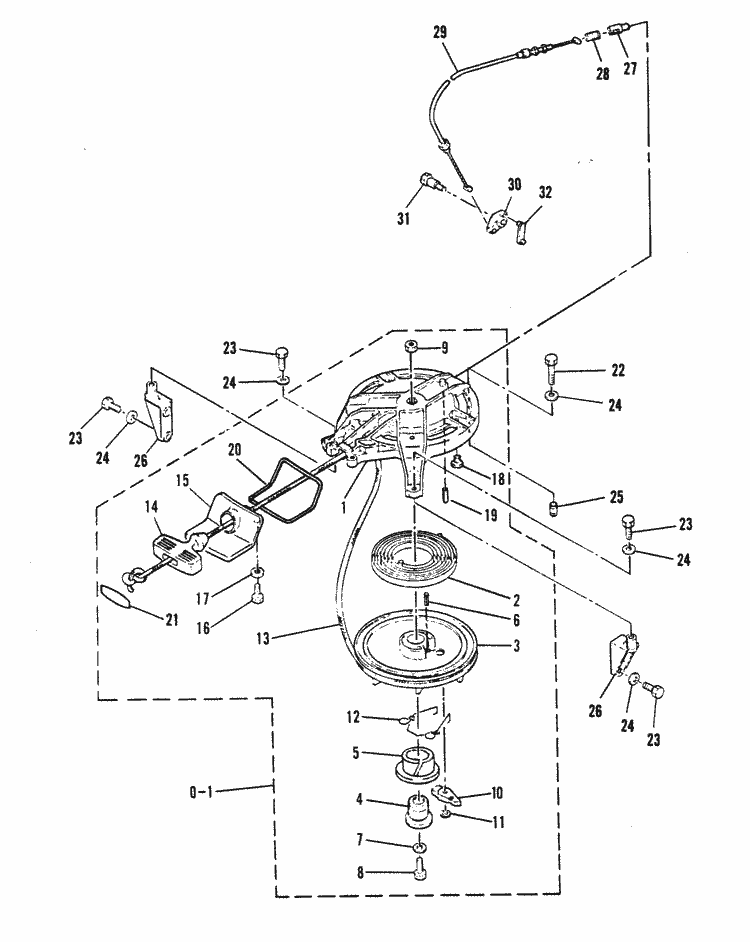

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #0-1 | NLA | STARTER (SEE NOTE #3) (1 required per assembly) |
  |
|
NLA - No Longer Availab [ More info ] Unavailable |
| #0-1 | 2169-9348M | STARTER (SEE NOTE #4) (1 required per assembly) |
  |
|
2169-9348M - Starter,NLA [ More info ] Unavailable |
| #1 | 2169-8398M | STARTER HOUSING (1 required per assembly) |
  |
|
2169-8398M - Starter Housing, NLA [ More info ] Unavailable |
| #2 | 24-82115M | SPRING (SEE NOTE #1) (1 required per assembly) |
  |
|
24-82115M - Spring, NLA [ More info ] Unavailable |
| #2 | 24-95588M | SPRING (SEE NOTE #2) (1 required per assembly) |
  |
|
24-95588M - Spring, NLA [ More info ] Unavailable |
| #3 | 50-83250M | STARTER SHEAVE (1 required per assembly) |
  |
|
50-83250M - Starter Sheave, NLA [ More info ] Unavailable |
| #4 | 83251M | SHAFT (SEE NOTE #1 - BRASS) (1 required per assembly) |
  |
|
83251M - Shaft [ More info ] Unavailable |
| #4 | 95590M | SHAFT (SEE NOTE #2 - NYLON W/BRASS INSERT) (1 required per assembly) |
  |
|
95590M - Nylon Shaft with Brass Insert, NLA [ More info ] Unavailable |
| #5 | 23-82687M | BUSHING (1 required per assembly) |
  |
|
23-82687M - Bushing [ More info ] Unavailable |
| #6 | 17-82157M | ROLL PIN (1 required per assembly) |
  |
|
17-82157M - Pin -roll, NLA [ More info ]
|
| #7 | 12-81557M | WASHER (1 required per assembly) |
  |
|
12-81557M - Washer, NLA [ More info ]
|
| #8 | 10-83539M | BOLT (1 required per assembly) |
  |
|
10-83539M - 10-83539M - BOLT (M6 x 20) [ More info ] Unavailable Replaced by 10-84058M |
  |
|
10-84058M - Bolt [ More info ]
|
| #9 | 11-82389M | NUT (1 required per assembly) |
  |
|
11-82389M - Nut, NLA [ More info ] Unavailable |
| #10 | 83252M | DRIVE PAWL (1 required per assembly) |
  |
|
|
| #11 | 53-84895M | SNAP RING (1 required per assembly) |
  |
|
53-84895M - Snap Ring [ More info ]
|
| #12 | 24-83947M | SPRING (SEE NOTE #1) (1 required per assembly) |
  |
|
24-83947M - Spring, NLA [ More info ]
|
| #12 | 24-95589M | SPRING (SEE NOTE #2) (1 required per assembly) |
  |
|
24-95589M - Spring, NLA [ More info ]
|
| #13 | 50-12066A 9 | STARTER ROPE (1 required per assembly) |
  |
50-12066A 9 - Starter Rope , Priced Individually [ More info ] Unavailable |
|
  |
50-12066Q 9 - Starter Rope , Priced Individually [ More info ] Unavailable |
|
  |
|
50-12066Q10 - Starter Rope - Priced Individually [ More info ]
|
  |
|
18-4915 - Pull Rope, 50-12066Q9 [ More info ]
|
  |
|
50-12066K10 - Starter Rope - Priced Individually [ More info ]
|
| #14 | 80063M | HANDLE (1 required per assembly) |
  |
80063M - Starter Handle [ More info ] Unavailable |
|
  |
|
814491A 1 - Handle Kit, NLA [ More info ]
|
| #15 | 84318M | GUIDE (SEE NOTE #3) (1 required per assembly) |
  |
|
84318M - Guide, NLA [ More info ] Unavailable |
| #15 | 41265M | GUIDE (SEE NOTE #4) (1 required per assembly) |
  |
|
41265M - Guide, NLA [ More info ]
|
| #16 | 10-84247M | BOLT (2 required per assembly) |
  |
10-84247M - BOLT Note: Priced Individually [ More info ] Unavailable |
|
  |
10-91725M - BOLT [ More info ] Unavailable |
|
  |
|
10-826957M - Bolt, NLA [ More info ]
|
| #17 | 12-82214M | WASHER (2 required per assembly) |
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #18 | 19-80604M | PLUG (1 required per assembly) |
  |
|
19-80604M - Plug, NLA [ More info ] Unavailable |
| #19 | 17-82155M | PIN (1 required per assembly) |
  |
|
17-82155M - Pin -roll, NLA [ More info ]
|
| #20 | 83982M | SEAL (1 required per assembly) |
  |
|
83982M - Seal, NLA [ More info ]
|
| #21 | 41882M | COVER (1 required per assembly) |
  |
|
41882M - Cover, NLA [ More info ] Unavailable |
| #22 | 10-83285M | BOLT (1 required per assembly) |
  |
|
10-83285M - Screw - Priced Individually [ More info ]
|
| #25 | 17-14214M | DOWEL PIN (1 required per assembly) |
  |
|
17-14214M - Pin -Dowel, NLA [ More info ] Unavailable |
| #26 | 96599M | BRACKET (SEE NOTE #3) (1 required per assembly) |
  |
|
96599M - Bracket, NLA [ More info ] Unavailable |
| #26 | 41266M | BRACKET (SEE NOTE #4) (1 required per assembly) |
  |
|
|
| #27 | 81106M | PLUNGER (1 required per assembly) |
  |
|
81106M - Plunger, NLA [ More info ]
|
| #28 | 24-82079M | SPRING (1 required per assembly) |
  |
|
24-82079M - Spring, Starter Lockout,NLA [ More info ]
|
| #29 | 84117M | LOCKOUT WIRE ASSEMBLY (1 required per assembly) |
  |
|
84117M - Cable, NLA [ More info ] Unavailable |
| #30 | 84115M | ARM (1 required per assembly) |
  |
|
84115M - Arm, NLA [ More info ]
|
| #31 | 10-94544M | BOLT (1 required per assembly) |
  |
|
10-94544M - BOLT,NLA [ More info ]
|
| #32 | 84116M | LINK (1 required per assembly) |
  |
|
84116M - Link, NLA [ More info ]
|
