Parts for Mariner 8C HP Recoil Starter
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 2169-9300M | STARTER ASS'Y (1 required per assembly) |
  |
|
2169-9300M - Starter,NLA [ More info ] Unavailable |
| #2 | 2169-9301M | CASE, STARTER (1 required per assembly) |
  |
|
2169-9301M - Starter Housing,NLA [ More info ] Unavailable |
| #3 | 11422M | GUIDE, STARTER ROPE (1 required per assembly) |
  |
|
11422M - Guide, NLA [ More info ] Unavailable |
| #4 | 11423M | SEAL (1 required per assembly) |
  |
|
11423M - Seal, NLA [ More info ]
|
| #5 | 10-91686M | BOLT (2 required per assembly) |
  |
|
10-91686M - Bolt, NLA [ More info ] Unavailable |
| #6 | 24-95484M | SPRING (1 required per assembly) |
  |
|
24-95484M - Spring, Spiral [ More info ]
|
| #7 | 50-11424M | DRUM, SHEAVE (1 required per assembly) |
  |
|
50-11424M - Sheave-drum, NLA [ More info ] Unavailable |
| #8 | 95468M | HANDLE, STARTER (1 required per assembly) |
  |
|
95468M - Handle, NLA [ More info ] Unavailable |
| #9 | 79629A 1 | STARTER ROPE (1 required per assembly) |
  |
79629A 1 - Starter Rope Note: Priced Individually [ More info ] Unavailable |
|
  |
50-28985A 2 - Starter Rope Assembly [ More info ] Unavailable |
|
  |
50-12066A 9 - Starter Rope , Priced Individually [ More info ] Unavailable |
|
  |
50-12066Q 9 - Starter Rope , Priced Individually [ More info ] Unavailable |
|
  |
|
50-12066Q10 - Starter Rope - Priced Individually [ More info ]
|
  |
|
18-4915 - Pull Rope, 50-12066Q9 [ More info ]
|
  |
|
50-12066K10 - Starter Rope - Priced Individually [ More info ]
|

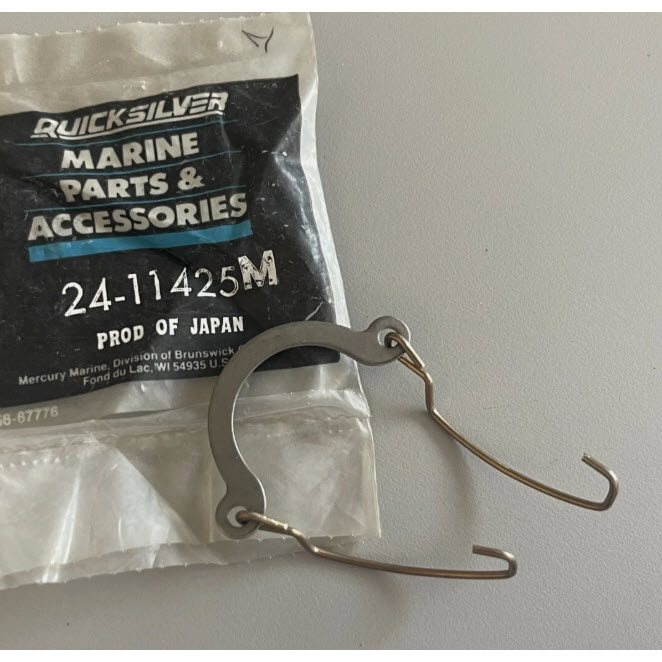

| #10 | 24-11425M | SPRING, PAWL DRIVE (1 required per assembly) |
  |
|
24-11425M - Spring, Pawl Drive, NLA [ More info ]
|
| #11 | 83252M | PAWL, DRIVE (1 required per assembly) |
  |
|
|
| #12 | 53-84895M | SNAP RING (1 required per assembly) |
  |
|
53-84895M - Snap Ring [ More info ]
|
| #13 | 23-11426M | BUSHING (1 required per assembly) |
  |
|
23-11426M - Bushing,NLA [ More info ] Unavailable |
| #14 | 10-83285M | BOLT (1 required per assembly) |
  |
|
10-83285M - Screw - Priced Individually [ More info ]
|
| #15 | 12-92564M | WASHER (1 required per assembly) |
  |
|
12-92564M - Washer - Priced Individually [ More info ]
|
| #16 | 11-82380M | NUT (1 required per assembly) |
  |
|
11-82380M - NUT - Priced Individually [ More info ]
|
  |
|
11-82389M - Nut, NLA [ More info ] Unavailable |
| #17 | 41882M | COVER (1 required per assembly) |
  |
|
41882M - Cover, NLA [ More info ] Unavailable |
  |
|
814491A 1 - Handle Kit, NLA [ More info ]
|
| #18 | 11427M | BRACKET (1 required per assembly) |
  |
|
11427M - Bracket, NLA [ More info ] Unavailable |
| #19 | 11428M | BRACKET (1 required per assembly) |
  |
|
11428M - Bracket, NLA [ More info ] Unavailable |
| #20 | 10-83539M | BOLT (4 required per assembly) |
  |
|
10-83539M - 10-83539M - BOLT (M6 x 20) [ More info ] Unavailable Replaced by 10-84058M |
  |
|
10-84058M - Bolt [ More info ]
|
| #21 | 12-82214M | LOCKWSHER (4 required per assembly) |
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #22 | 10-91674M | BOLT (3 required per assembly) |
  |
|
10-91674M - Bolt, NLA [ More info ]
|
| #23 | 11429M | PULLEY, STARTER (1 required per assembly) |
  |
|
11429M - Pulley, NLA [ More info ]
|
| #24 | 10-11430M | BOLT (3 required per assembly) |
  |
|
10-11430M - BOLT,NLA [ More info ] Unavailable |
| #25 | 17365M | ARM (6M) (1 required per assembly) |
  |
|
17365M - ARM NLA [ More info ] Unavailable |
| #25 | 11943M | ARM (8M) (1 required per assembly) |
  |
|
11943M - Arm, NLA [ More info ]
|
| #26 | 23-11944M | COLLAR (1 required per assembly) |
  |
|
23-11944M - COLLAR,NLA [ More info ] Unavailable |
| #27 | 10-11945M | BOLT (1 required per assembly) |
  |
|
10-11945M - Bolt, NLA [ More info ]
|
| #28 | 11946M | LEVER SHIFT ROD (1 required per assembly) |
  |
|
|
| #29 | 10-83356M | SCREW (1 required per assembly) |
  |
|
10-83356M - Screw, NLA [ More info ]
|
| #30 | 12-82211M | WASHER (1 required per assembly) |
  |
|
12-82211M - Washer - Priced Individually [ More info ]
|
| #31 | 11947M | LINK (1 required per assembly) |
  |
|
11947M - Link, NLA [ More info ]
|
| #32 | 11941M | CABLE, STARTER STOP (1 required per assembly) |
  |
|
11941M - Cable, NLA [ More info ]
|
| #33 | 11942M | BRACKET (1 required per assembly) |
  |
|
11942M - Bracket, NLA [ More info ]
|
| #34 | 81106M | PLUNGER, STARTER STOP (1 required per assembly) |
  |
|
81106M - Plunger, NLA [ More info ]
|
| #35 | 24-82079M | SPRING, COMPRESSION (1 required per assembly) |
  |
|
24-82079M - Spring, Starter Lockout,NLA [ More info ]
|
| #36 | 47341A 1 | EMERGENCY STARTER ROPE (1 required per assembly) |
  |
47341A 1 - Rope And Handle [ More info ] Unavailable |
|
  |
|
47341A11 - Manual Start Rope And Handle [ More info ]
|
