Parts for Mariner 8B HP Crankshaft & Piston
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 463-6965M | CRANKSHAFT ASS'Y (1 required per assembly) |
  |
463-6965M - Crankshaft [ More info ] Unavailable |
|
  |
|
463-9380M - Crankshaft,NLA [ More info ] Unavailable |
| #2 | 30-82299M | BEARING (2 required per assembly) |
  |
30-82299M - Ball Bearing [ More info ] Unavailable |
|
  |
30-18859M - Ball Bearing [ More info ] Unavailable |
|
  |
|
30-18859T - Ball Bearing, NLA [ More info ] Unavailable |
| #3 | 761-8224M | PISTON ASS'Y (STANDARD) (2 required per assembly) |
  |
|
761-8224M - Piston, NLA [ More info ] Unavailable |
| #3 | 761-8225M | PISTON ASS'Y (1ST O.S. 51.25 MM) (AR required per assembly) |
  |
|
761-8225M - Piston, NLA [ More info ] Unavailable |
| #3 | 761-8226M | PISTON ASS'Y (2ND O.S. 51.50 MM) (AR required per assembly) |
  |
|
761-8226M - Piston, NLA [ More info ] Unavailable |
| #4 | 29-82350M | BEARING, NEEDLE (56 required per assembly) |
  |
|
29-82350M - Needle Bearing [ More info ]
|
| #5 | 12-81816M | WASHER (4 required per assembly) |
  |
|
12-81816M - Washer, NLA [ More info ]
|
| #6 | 39-80422M | PISTON RING SET (STANDARD) (2 required per assembly) |
  |
39-80422M - Piston Ring Set [ More info ] Unavailable |
|
  |
|
39-80422T - Rings, NLA [ More info ]
|
| #6 | 39-80423M | PISTON RING SET (1ST O.S. 51.25MM) (2 required per assembly) |
  |
39-80423M - Piston Ring Set [ More info ] Unavailable |
|
  |
|
39-80423T - Rings, NLA [ More info ] Unavailable |
| #6 | 39-80424M | PISTON RING SET (2ND O.S. 51.50MM) (2 required per assembly) |
  |
|
39-80424M - Rings, NLA [ More info ] Unavailable |
| #7 | 41-80005M | PIN, PISTON (2 required per assembly) |
  |
|
41-80005M - Piston Pin, NLA [ More info ] Unavailable |
| #8 | 53-82342M | CLIP, PISTON PIN (4 required per assembly) |
  |
|
53-82342M - Snap Ring, NLA [ More info ]
|
| #9 | 83246M | HOUSING, OIL SEAL UPPER (1 required per assembly) |
  |
|
83246M - Housing, NLA [ More info ]
|
| #10 | 25-82276M | O-RING (1 required per assembly) |
  |
|
25-82276M - O Ring,NLA [ More info ]
|

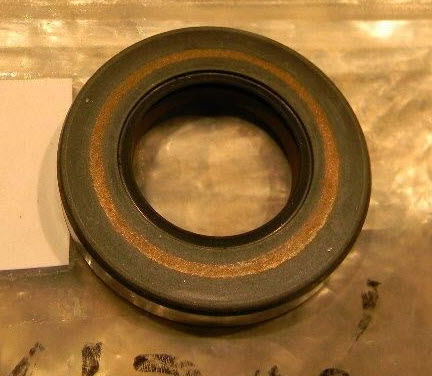

| #11 | 26-82243M | OIL SEAL, UPPER (1 required per assembly) |
  |
26-82243M - OIL Seal , Priced Individually [ More info ] Unavailable |
|
  |
|
26-94663M - Seal [ More info ]
|
  |
26-18941M - Oil Seal [ More info ] Unavailable |
|
  |
|
26-18843M - Seal [ More info ]
|
| #12 | 10-82423M | BOLT (4 required per assembly) |
  |
|
10-82423M - Bolt, NLA [ More info ]
|
| #13 | 13-82199M | WASHER, LOCK (4 required per assembly) |
  |
13-82199M - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #14 | 94661M | HOUSING, OIL SEAL LOWER (1 required per assembly) SERIAL 00020251-09999999 |
  |
94661M - Housing [ More info ] Unavailable |
|
  |
|
814493M - Housing, NLA [ More info ]
|
| #14 | 83248M | HOUSING, OIL SEAL LOWER (1 required per assembly) SERIAL 00000000-00020250 |
  |
|
83248M - Housing, NLA [ More info ] Unavailable |
| #15 | 26-94662M | SEAL (1 required per assembly) |
  |
|
26-94662M - Seal, NLA [ More info ]
|
| #16 | 25-82277M | O-RING (1 required per assembly) |
  |
25-82277M - O-ring, Lower Oil Seal Housing [ More info ] Unavailable |
|
  |
|
25-95602M - O-Ring [ More info ]
|
| #17 | 26-82165M | OIL SEAL (1 required per assembly) |
  |
|
26-82165M - Seal, NLA [ More info ]
|
| #18 | 26-94663M | OIL SEAL, LOWER (1 required per assembly) |
| #19 | 23-81841M | WASHER (1 required per assembly) |
  |
|
23-81841M - Spacer, NLA [ More info ]
|
| #20 | 10-91725M | BOLT (2 required per assembly) |
  |
10-91725M - BOLT [ More info ] Unavailable |
|
  |
|
10-826957M - Bolt, NLA [ More info ]
|
| #21 | 12-82214M | WASHER (2 required per assembly) |
| #22 | 28-81913M | KEY, FLYWHEEL (1 required per assembly) |
  |
28-81913M - KEY - Priced Individually [ More info ] Unavailable |
|
  |
28-18856M - Supercedes to 28-893761 [ More info ] Unavailable |
|
  |
|
28893761 - Key - Priced Individually [ More info ]
|
