Parts for Mariner 8A Flywheel Magneto
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #0-1 | 80549M | FLYWHEEL MAGNETO ASS'Y... (1 required per assembly) |
  |
|
80549M - MAGNETO,NLA [ More info ] Unavailable |
| #1 | 80560M | FLYWHEEL... (1 required per assembly) |
  |
|
80560M - ROTOR,NLA [ More info ] Unavailable |
| #2 | 80550M | BASE, MAGNETO... (1 required per assembly) |
  |
|
80550M - Base, NLA [ More info ] Unavailable |
| #3 | 80551M | PRIMARY IGNITION COIL, #1(TOP)... (1 required per assembly) |
  |
|
80551M - Ignition Coil, NLA [ More info ]
|
| #4 | 80552M | PRIMARY IGNITION COIL, #2 (BOTTOM)... (1 required per assembly) |
  |
|
80552M - Ignition Coil, NLA [ More info ] Unavailable |
| #5 | 23-80555M | SPACER, COIL... (2 required per assembly) |
  |
|
23-80555M - Spacer - Coil - NLA [ More info ] Unavailable |
| #6 | 10-80556M | SCREW, COIL ATTACHING... (2 required per assembly) |
  |
|
10-80556M - SCREW,NLA [ More info ] Unavailable |
| #7 | 13-82186M | LOCKWASHER, COIL SCREW... (2 required per assembly) |
  |
|
13-82186M - LockWasher, NLA [ More info ]
|
| #8 | 80930M | BREAKER ASS'Y... (2 required per assembly) |
  |
|
80930M - Breaker Point Assembly, Priced Individually [ More info ]
|
| #9 | 10-80023M | SCREW, BREAKER ATTACHING... (4 required per assembly) |
  |
10-80023M - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-82500M - Screw, NLA [ More info ]
|
| #10 | 13-82184M | LOCKWASHER, BREAKER BOLT... (4 required per assembly) |
  |
13-82184M - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
13-82206M - LockWasher - Priced Individually [ More info ]
|
| #11 | 80558M | CONDENSER... (2 required per assembly) |
  |
|
80558M - Condenser [ More info ]
|
| #12 | 80025M | LUBRICATOR... (2 required per assembly) |
  |
|
80025M - Lubricator - Priced Individually, NLA [ More info ]
|
| #13 | 84-80554M | LEAD WIRE ASS'Y... (1 required per assembly) |
  |
|
84-80554M - Lead Wire, NLA [ More info ] Unavailable |
| #14 | 25-80559M | GROMMET, MAGNETO BASE... (1 required per assembly) |
  |
|
25-80559M - Grommet, NLA [ More info ] Unavailable |

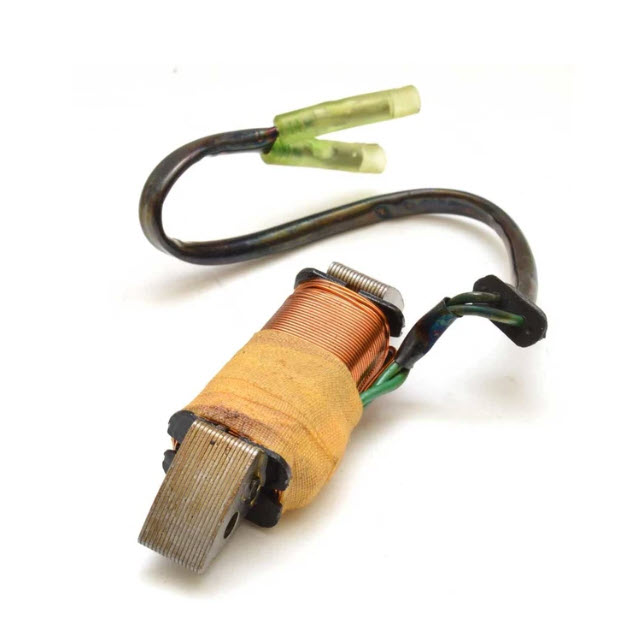

| #15 | 80553M | LIGHTING COIL... (1 required per assembly) |
  |
|
80553M - Lighting Coil, NLA [ More info ]
|
| #16 | 10-80557M | SCREW, COIL ATTACHING... (2 required per assembly) |
  |
10-80557M - Screw Note: Priced Individually [ More info ] Unavailable |
|
  |
10-82503M - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-82522M - Screw, NLA [ More info ] Unavailable |
| #17 | 82608M | RETAINER, MAGNETO BASE... (1 required per assembly) SERIAL 00000000-00020160 |
  |
|
82608M - Retainer,NLA [ More info ] Unavailable |
| #17 | 81047M | RETAINER, MAGNETO BASE... (1 required per assembly) SERIAL 00020161-09999999 |
  |
|
81047M - Retainer,NLA [ More info ] Unavailable |
| #18 | 10-82491M | SCREW, BASE ATTACHING... (3 required per assembly) SERIAL 00000000-00020160 |
  |
|
10-82491M - SCREW,NLA [ More info ] Unavailable |
| #18 | 10-82174M | SCREW, BASE ATTACHING... (3 required per assembly) SERIAL 00020161-09999999 |
  |
|
10-82174M - SCREW,NLA [ More info ] Unavailable |
| #19 | 13-82193M | LOCKWASHER, BASE SCREW... (3 required per assembly) |
  |
13-82193M - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
13-82208M - LOCKWASHER Note: Priced Individually [ More info ] Unavailable |
|
| #20 | 80488M | STOP, MAGNETO BASE... (1 required per assembly) |
  |
|
80488M - STOP,NLA [ More info ] Unavailable |
| #21 | 10-82422M | BOLT, STOP ATTACHING... (2 required per assembly) |
  |
10-82422M - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
10-84247M - BOLT Note: Priced Individually [ More info ] Unavailable |
|
  |
10-91725M - BOLT [ More info ] Unavailable |
|
  |
|
10-826957M - Bolt, NLA [ More info ]
|
| #22 | 13-82199M | WASHER... (10 required per assembly) |
  |
13-82199M - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #23 | 52-80561M | COVER, FLYWHEEL... (1 required per assembly) |
  |
|
52-80561M - Clutch, NLA [ More info ] Unavailable |
| #24 | 10-82420M | BOLT, COVER ATTACHING... (3 required per assembly) |
  |
10-82420M - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
10-84315M - BOLT [ More info ] Unavailable |
|
  |
|
10-84088M - Bolt [ More info ]
|
| #25 | 11-81768M | NUT, FLYWHEEL ATTACHING... (1 required per assembly) |
  |
|
11-81768M - Nut, Flywheel Attaching, NLA [ More info ] Unavailable |
| #26 | 12-81805M | WASHER, FLYWHEEL NUT... (1 required per assembly) |
  |
|
12-81805M - Washer, Flywheel Nut, NLA [ More info ]
|
| #27 | 81092M | BRACKET, IGNITION COIL... (1 required per assembly) |
  |
|
81092M - Bracket, NLA [ More info ] Unavailable |
| #28 | 10-82423M | BOLT, BRACKET ATTACHING... (1 required per assembly) |
  |
|
10-82423M - Bolt, NLA [ More info ]
|
| #29 | 80931M | SECONDARY IGNITION COIL ASS'Y... (2 required per assembly) |
  |
80931M - Ignition Coil [ More info ] Unavailable |
|
  |
|
80931T - Ignition Coil, NLA [ More info ] Unavailable |
| #30 | 84-82831M | LEAD, HIGH TENSION... (2 required per assembly) |
  |
|
84-82831M - Wire, NLA [ More info ]
|
| #31 | 10-82425M | BOLT, COIL ATTACHING... (4 required per assembly) |
  |
10-82425M - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-82405M - Screw, NLA [ More info ]
|
| #32 | 80183M | PLUG CAP ASS'Y(RUBBER)... (2 required per assembly) SERIAL 00000000-00026575 |
  |
80183M - PROTECTOR [ More info ] Unavailable |
|
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #32 | 82788M | PLUG CAP ASS'Y(RUBBER)... (2 required per assembly) SERIAL 00026576-09999999 |
  |
|
82788M - Protector - Priced Individually [ More info ]
|
| #32 | 80935M | PLUG CAP ASS'Y, NOISE SUPPRESSOR (OPT)... (2 required per assembly) |
  |
80935M - Protector [ More info ] Unavailable |
|
  |
814991M - Plug Cap [ More info ] Unavailable |
|
  |
|
85-815119M - Protector [ More info ] Unavailable |
| #32 | 80274M | PLUG CAP ASS'Y, BAKELITE (OPTIONAL)... (2 required per assembly) |
  |
80274M - PROTECTOR [ More info ] Unavailable |
|
  |
84319M - PLUG CAP [ More info ] Unavailable |
|
| #33 | 81048M | RETAINER, MAGNETO BASE... (1 required per assembly) SERIAL 00020161-09999999 |
  |
|
81048M - Retainer,NLA [ More info ] Unavailable |
| #34 | 84-80052M | WIRING HARNESS... (1 required per assembly) |
  |
|
84-80052M - Wiring Harness, NLA [ More info ] Unavailable |
