Parts for Mariner 80 HP Jet Fuel Pump

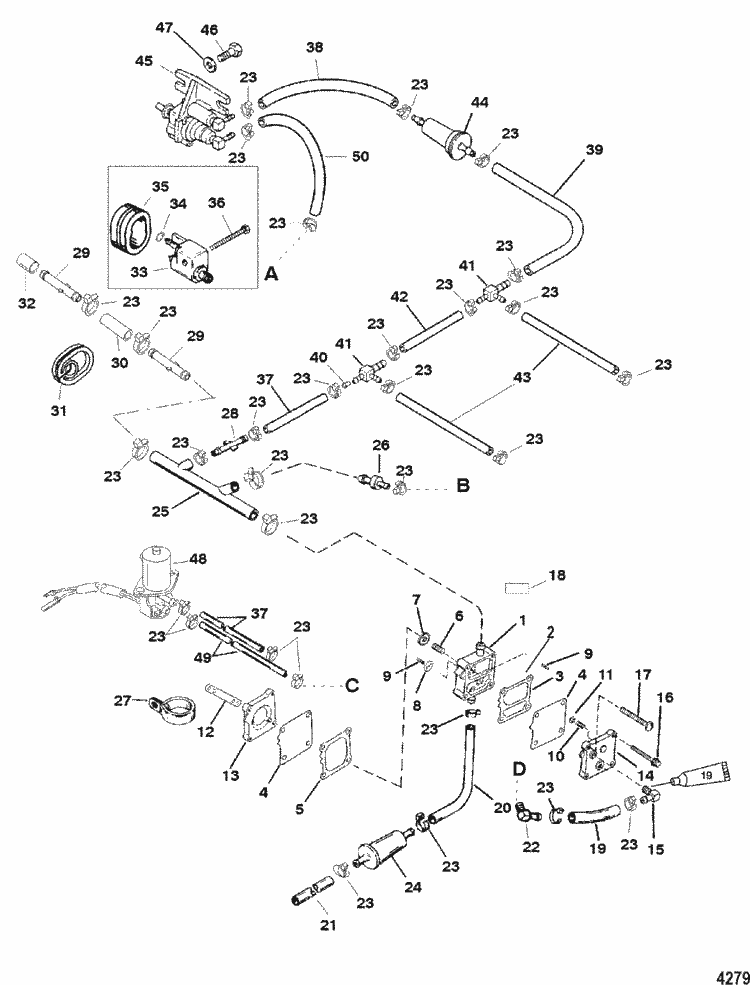

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-13461A99 | GASKET SET (1 required per assembly) |
  |
|
27-13461A99 - Engine Gasket Set [ More info ]
|
| # | 17791T97 | POWERHEAD ASSEMBLY (1 required per assembly) |
  |
|
17791T97 - Powerhead 125 4CYL [ More info ] Unavailable |
| #1 | 14360A71 | PUMP ASSEMBLY, Fuel (1 required per assembly) |
  |
14360A71 - Fuel Pump Kit [ More info ] Unavailable |
|
  |
|
14360A78 - Fuel Pump Kit [ More info ]
|
| #2 | 21-857005A 1 | DIAPHRAGM KIT (1 required per assembly) |
  |
|
21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ]
|
  |
|
18-7817 - Fuel Pump Kit [ More info ]
|
  |
|
1399-39020 - Fuel Pump REPAIR KIT [ More info ]
|
| #3 | NSS | NOT SOLD SEPARATE, Gasket-Boost (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #12 | 27-98769 1 | GASKET (1 required per assembly) |
  |
|
27-98769 1 - Gasket [ More info ] Unavailable |
| #13 | 14430 3 | BASE (1 required per assembly) |
  |
|
14430 3 - Base [ More info ] Unavailable |
| #14 | 98775 2 | PLATE (1 required per assembly) |
  |
|
98775 2 - Plate -Chamber [ More info ]
|
| #15 | 22-99664 2 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (1 required per assembly) |
  |
|
22-99664 2 - Elbow [ More info ]
|
| #16 | 10-821045 40 | SCREW, (M5 x 40) (2 required per assembly) |
  |
|
10-821045 40 - Screw [ More info ]
|
| #17 | 10-821300 50 | SCREW, (M6 x 50) (2 required per assembly) |
  |
|
10-821300 50 - Screw [ More info ]
|
| #19 | 32-830757130 | TUBING, (.312) (70.00 Inches Bulk) (1 required per assembly) (Cut to 4 Inches) |
  |
32-830757130 - Tubing-70 Inch [ More info ] Unavailable |
|
  |
32-8M0047448 - Tubing-70 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108349 - Hose-70 Inch [ More info ]
|
| #23 | 54-816311T | TIE STRAP, (8.00 Inches) (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #23 | 69355 | TIE STRAP, (5.50 Inches) (AR required per assembly) |
  |
|
69355 - Tie Strap - Priced Individually [ More info ]
|
  |
|
8M0214940 - TIE STRAP [ More info ]
|
| #24 | 35-816296Q 2 | FILTER, Fuel (1 required per assembly) |
  |
|
35-816296Q 2 - Fuel Filter - Priced Individually [ More info ]
|
  |
|
18-7830 - Inline Filter 5/16 [ More info ]
|
  |
|
35-816296K 2 - Fuel Filter - Priced Individually [ More info ]
|
| #25 | 32-822554 | MOLDED HOSE (1 required per assembly) |
  |
|
32-822554 - Molded Hose [ More info ]
|
| #26 | 22-818994 1 | CHECK VALVE (1 required per assembly) |
  |
|
22-818994 1 - Check Valve [ More info ]
|
  |
|
18-8957 - Check Valve [ More info ]
|
| #27 | 54-18887 1 | CLAMP (1 required per assembly) |
  |
|
54-18887 1 - Clamp [ More info ]
|
| #28 | 22-822771 | CONNECTOR (1 required per assembly) |
  |
|
22-822771 - Connector [ More info ]
|
| #29 | 22-822769 | CONNECTOR (2 required per assembly) SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499 |
  |
|
22-822769 - Connector [ More info ]
|
| #30 | 32-859361 57 | TUBING, (26.00 Inches Bulk) (1 required per assembly) (Cut to 4 Inch Length) SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499 |
  |
32-859361 57 - Hose-26 INCH [ More info ] Unavailable |
|
  |
|
3285682257 - Hose -26 Inch Fuel [ More info ]
|
| #31 | 25-14509 3 | GROMMET (1 required per assembly) SN# USA-0G960500/BEL-0P059000 THRU USA-0T979999/BEL-0P325499 |
  |
|
25-14509 3 - Grommet [ More info ]
|
| #33 | 22-816856Q 3 | CONNECTOR ASSEMBLY, Fuel (1 required per assembly) SN# USA-0G960499/BEL-0P059777 & Below |
  |
|
22-816856Q 3 - Connector - Priced Individually [ More info ]
|
| #34 | 25-16524 | O-RING, Fuel Connector (1 required per assembly) SN# USA-0G960499/BEL-0P059777 & Below |
  |
|
25-16524 - O Ring-fuel Connector [ More info ]
|
| #35 | 25-14509 1 | GROMMET (1 required per assembly) SN# USA-0G960499/BEL-0P059777 & Below |
  |
|
25-14509 1 - Grommet [ More info ]
|
| #36 | 10-40106 35 | SCREW, (M6 x 35) Stainless Steel (1 required per assembly) SN# USA-0G960499/BEL-0P059777 & Below |
  |
|
10-40106 35 - Screw [ More info ]
|
| #39 | 32-14301 65 | TUBING, (38.00 Inches Bulk) (1 required per assembly) (Cut to 1.25 Inch Length) |
  |
|
32-14301 65 - Tubing - 38 Inch [ More info ] Unavailable |
| #40 | 19-17608 | FLOW RESTRICTOR (1 required per assembly) |
  |
|
19-17608 - Plug [ More info ] Unavailable |
| #41 | 22-830570 | FITTING, Tee (2 required per assembly) |
  |
|
22-830570 - Fitting, Tee [ More info ] Unavailable |
| #42 | 32-99130122 | TUBING, (20.00 Feet Bulk) (1 required per assembly) (Cut to 4.50 Inch Length) |
  |
32-99130122 - Tubing-20 FEET [ More info ] Unavailable |
|
  |
|
32-892024122 - Tubing - 20 Feet [ More info ]
|
| #44 | 35-18206 | FILTER (1 required per assembly) |
  |
35-18206 - Fuel Filter [ More info ] Unavailable |
|
  |
35-18206001 - Filter [ More info ] Unavailable |
|
  |
35-8M0042285 - Filter [ More info ] Unavailable |
|
  |
|
35-8M0207786 - In-Line Filter, Outboard [ More info ]
|
| #45 | 14687A 4 | PUMP ASSEMBLY, Accelerator (REPAIR KIT 1395-811287) (1 required per assembly) |
  |
|
14687A 4 - Pump, Accelerator [ More info ] Unavailable |
  |
|
8M0138942 - Accelerator Pump Kit [ More info ]
|
| #46 | 10-40094 16 | SCREW, (M6 x 16) (2 required per assembly) |
  |
|
10-40094 16 - Screw [ More info ]
|
| #47 | 12-69056 | WASHER, (.255 x .620 x .030) Stainless Steel (2 required per assembly) |
  |
|
12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ]
|
| #48 | 89-819503A 1 | SOLENOID ASSEMBLY, Enrichner Valve (1 required per assembly) |
  |
|
89-819503A 1 - Solenoid Kit [ More info ]
|
| #49 | 32-99126 88 | TUBING, (36.00 Inches Bulk) (1 required per assembly) (Cut to 11.50 Inch Length) |
  |
|
32-99126 88 - Tubing - 36 Inch [ More info ]
|
