Parts for Mariner 8 HP (Bodensee) 4-Stroke (International) Fuel Tank
Tap to zoom. Scroll down to order.

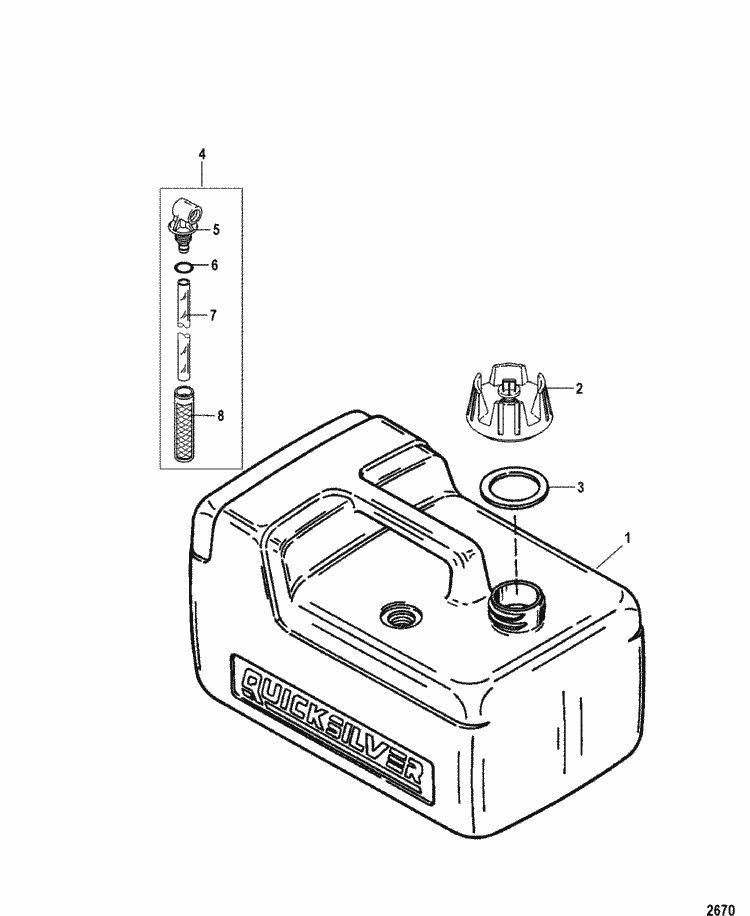

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
#1 | 1260-859060A 2 | TANK ASSEMBLY, Fuel (1 required per assembly) |
![]() ![]() |
1260-859060A 2 - TANK-FUEL-3.2 GAL [ More info ] Unavailable |
|
#2 | 36-816976Q 1 | CAP ASSEMBLY, Fuel (1 required per assembly) |
![]() ![]() |
36-816976Q 1 - Fuel Cap Assembly - Priced Individually [ More info ] |
|
![]() ![]() |
36-816976T 1 - Fuel Cap Assembly - Priced Individually [ More info ] |
|
#3 | 27-816977 1 | GASKET, Fuel Cap (1 required per assembly) |
![]() ![]() |
||
#4 | 22-823531A 1 | CONNECTOR KIT, Fuel (1 required per assembly) |
![]() |
22-823531A 1 - Fuel Connector Kit -3.2 [ More info ] Unavailable |
|
#5 | NSS | NOT SOLD SEPARATE, Connector (1 required per assembly) |
![]() |
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
|
#6 | 25-823533 | O-RING (1 required per assembly) |
![]() |
||
#8 | 35-823534 | SCREEN (1 required per assembly) |
![]() ![]() |
