Parts for Mariner 70 HP (3 Cylinder) Starter Motor Assembly - Prestolite
Tap to zoom. Scroll down to order.

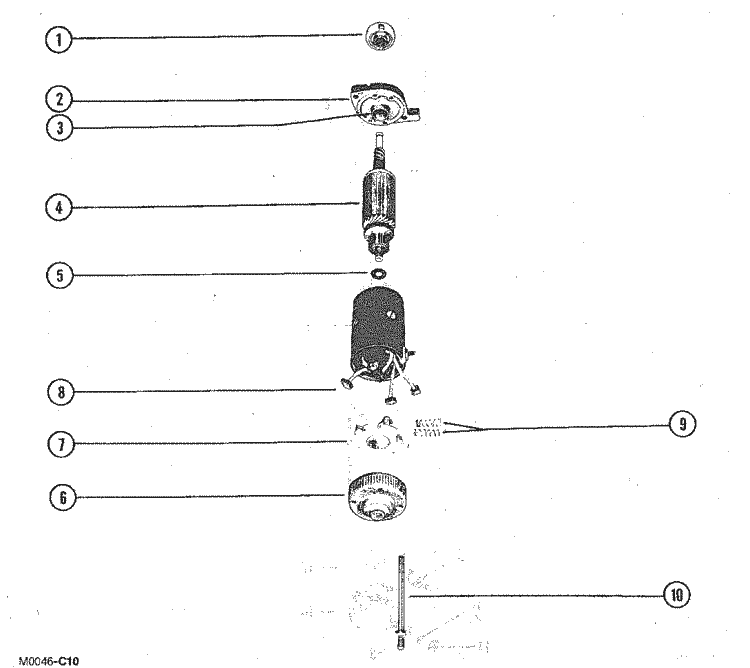

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 392-8848 | MOTOR DRIVE (1 required per assembly) |
  |
|
392-8848 - Drive Assembly,NLA [ More info ] Unavailable |
| #2 | 392-8852 | PLATE ASSEMBLY, DRIVE END (1 required per assembly) |
  |
|
392-8852 - HEAD ASSY,NLA [ More info ] Unavailable |
| #3 | 393-8853 | BUSHING, DRIVE END PLATE (1 required per assembly) |
  |
|
392-8853 - Bearing, NLA [ More info ] Unavailable |
| #4 | 392-8847 | ARMATURE (1 required per assembly) |
  |
|
392-8847 - Armature, NLA [ More info ] Unavailable |
| #5 | 392-8856 | PACKAGE, ARMATURE THRUST WASHER (1 required per assembly) |
  |
|
392-8856 - Thrust Washer Kit,NLA [ More info ] Unavailable |
| #6 | 393-8849 | END CAP ASSEMBLY, COMMUTATOR (1 required per assembly) |
  |
|
392-8849 - Head Assembly, NLA * [ More info ] Unavailable |
| #7 | 392-8850 | BRUSH PLATE AND HOLDER ASSEMBLY (1 required per assembly) |
  |
|
392-8850 - PLATE,NLA [ More info ]
|
| #8 | 392-8851 | BRUSH AND TERMINAL SET (1 required per assembly) |
  |
|
392-8851 - Bushing Set, NLA [ More info ] Unavailable |
| #9 | 392-8854 | SPRING SET, BRUSH (2 SPRINGS PER SET) (2 required per assembly) |
  |
|
392-8854 - SPRING SET,NLA [ More info ] Unavailable |
| #10 | 392-8855 | BOLT, THRU-END CAP TO END PLATE (1/4-28) (1 required per assembly) |
  |
|
392-8855 - THRU BOLT K,NLA [ More info ] Unavailable |
