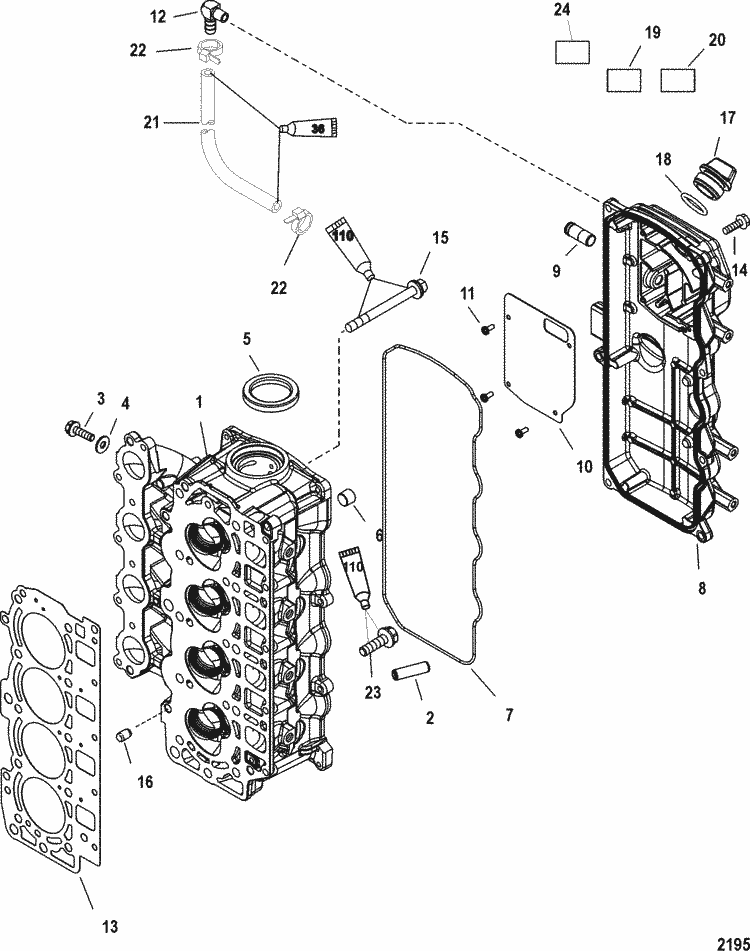

Parts for Mariner 60 HP EFI (4 Cylinder) (4-Stroke) Cylinder Head
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 893505T05 | CYLINDER HEAD ASSEMBLY (1 required per assembly) |
  |
|
893505T05 - Cylinder Head Assembly [ More info ] Unavailable |
| # | 27-883599A02 | GASKET SET (1 required per assembly) |
  |
|
27-883599A02 - Engine Gasket Set [ More info ]
|
| # | 61-878344T03 | POWERHEAD ASSEMBLY (1 required per assembly) |
  |
61878344T03 - PH 40-60 4S 4CYL,NLA [ More info ] Unavailable |
|
  |
|
61893678T03 - GREEN PH ASY-4CYL(No Cy [ More info ] Unavailable |
| #1 | 893505A02 | CYLINDER HEAD ASSEMBLY (1 required per assembly) |
  |
893505A02 - Cylinder Head [ More info ] Unavailable |
|
  |
|
893505T06 - Cylinder Head [ More info ] Unavailable |
| #2 | 858266 | GUIDE (8 required per assembly) |
  |
|
858266 - Valve Guide, NLA [ More info ]
|
| #3 | 10-40003 25 | SCREW, (M6 x 8) (4 required per assembly) |
  |
|
10-40003 25 - Screw [ More info ]
|
| #4 | 12-859768 | WASHER (4 required per assembly) |
  |
|
12-859768 - Washer [ More info ]
|
| #5 | 26-858267 | SEAL, Oil (1 required per assembly) |
  |
26-858267 - Seal [ More info ] Unavailable |
|
  |
|
26-893549 - Oil Seal [ More info ]
|
| #6 | 22-875209 | PIPE PLUG (8 required per assembly) |
  |
|
22-875209 - Pipe Plug [ More info ]
|
| #7 | 25-857083 | SEAL (1 required per assembly) |
  |
25-857083 - Seal [ More info ] Unavailable |
|
  |
|
25-8M0011870 - Seal [ More info ]
|
| #8 | 893694T01 | COVER ASSEMBLY (1 required per assembly) |
  |
893694T01 - Cover [ More info ] Unavailable |
|
  |
|
893694T02 - Valve Cover -4CYL [ More info ]
|
  |
|
8M0174400 - Cover [ More info ]
|
| #9 | NSS | NOT SOLD SEPARATE, Breather Pipe (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #12 | 22-62910 1 | FITTING, Elbow - 90 Degree (.125-27) (1 required per assembly) |
  |
|
22-62910 1 - Elbow [ More info ]
|
| #13 | 27-857081 | GASKET (1 required per assembly) |
  |
27-857081 - Cylinder Head Gasket [ More info ] Unavailable |
|
  |
27-8M0045278 - Head Gasket -4CYL [ More info ] Unavailable |
|
  |
|
27-8M0118179 - Head Gasket [ More info ]
|
| #14 | 10-40011128 | SCREW, (M6 x 20) Stainless Steel (7 required per assembly) |
  |
10-40011128 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
108M4503518 - Screw , Priced Individually [ More info ] Unavailable |
|
  |
|
108M0204741 - SCREW Note: Priced Individually [ More info ]
|
| #15 | 10-825033 95 | SCREW, (M9 x 95) (10 required per assembly) |
  |
|
10-825033 95 - Screw [ More info ] Unavailable |
| #16 | 17-825010 | PIN, Dowel (2 required per assembly) |
  |
|
17-825010 - Pin -Dowel [ More info ]
|
| #17 | 859578A 1 | PLUG ASSEMBLY, Oil (1 required per assembly) |
  |
|
859578A 1 - Oil Plug Assembly [ More info ]
|
| #18 | 25-90196 | O-RING, (.921 x .139) (1 required per assembly) |
  |
25-90196 - O-ring, (.921 X .139) [ More info ] Unavailable |
|
  |
|
258M0204673 - O RING [ More info ]
|
| #21 | 32-77653101 | HOSE, (48.00 Inches Bulk) (Cut to 19 Inches) To Fitting in Adaptor Plate (1 required per assembly) |
  |
|
32-77653101 - Hose -48 Inch [ More info ]
|
| #22 | 54-816311T | TIE STRAP, (8.00 Inches) (2 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #23 | 10-825009 25 | SCREW, (M6 x 25) (5 required per assembly) |
  |
|
10-825009 25 - Screw [ More info ]
|
  |
|
10893745025 - Screw (M6 x 25) [ More info ]
|
